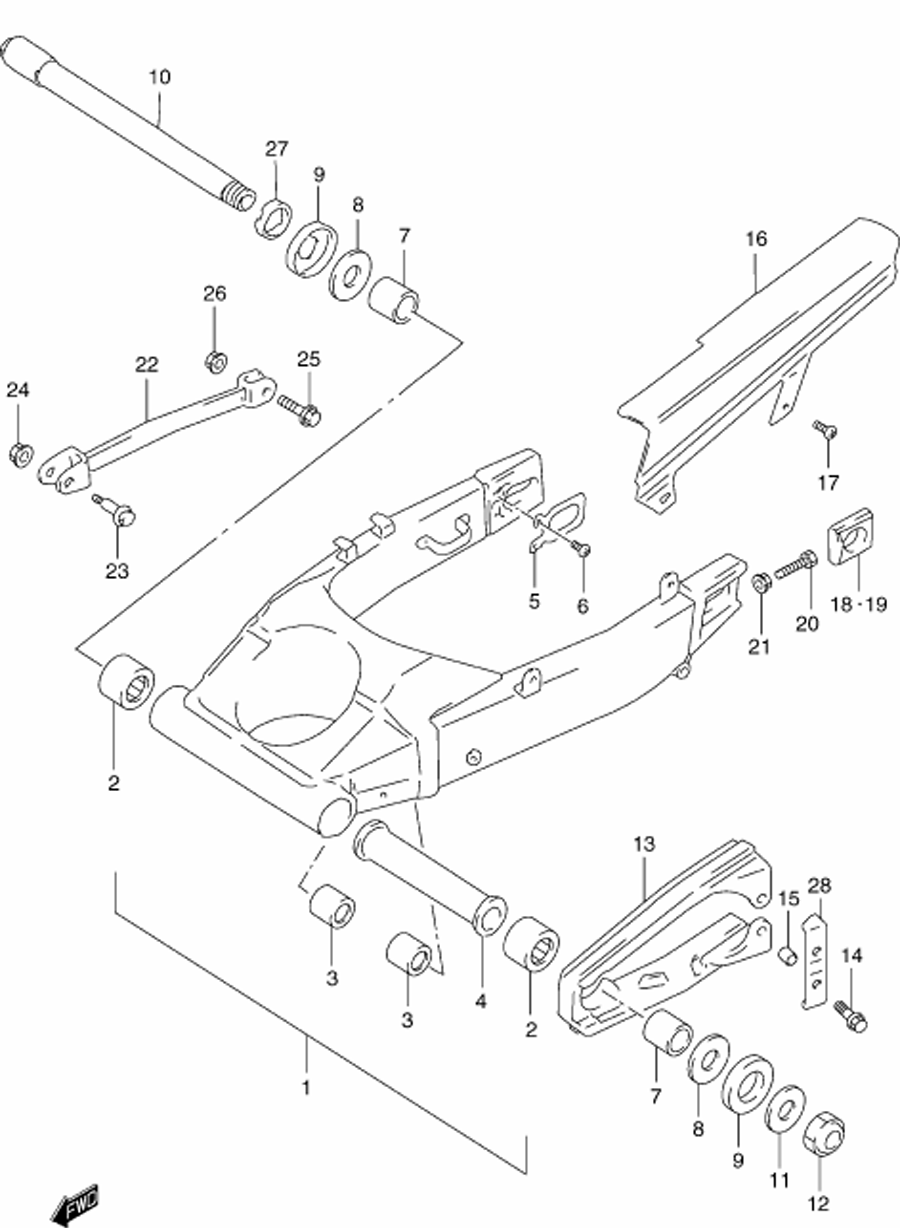

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki GSX-R600 Y - 2000 года выпуска`
-
№АртикулНазвание
-
161000-34E00 SWINGING ARM ASSY. (REAR)SWINGING ARM ASSY. (REAR)
-
209263-30040 ...BEARING, PIVOT (30X47X2)...BEARING, PIVOT (30X47X2)
-
309263-17039 ...BEARING, ROD (17X24X20)...BEARING, ROD (17X24X20)
-
461281-33E10 ...SPACER (CENTER)...SPACER (CENTER)
-
561124-33E00 PLATE, BRACKETPLATE, BRACKET
-
602142-06163 SCREWSCREW
-
761251-17E10 SPACER, BEARINGSPACER, BEARING
-
808211-25481 WASHER, THRUSTWASHER, THRUST
-
961262-17E10 SEAL, DUSTSEAL, DUST
-
1061211-33E00 SHAFT, PIVOTSHAFT, PIVOT
-
1109160-25070 WASHERWASHER
-
1209159-25001 NUTNUT
-
1361273-34E01 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1409116-06152 BOLT (6X20)BOLT (6X20)
-
1509180-06306 SPACER (6.5X9X5)SPACER (6.5X9X5)
-
1661310-34E00 CASE, CHAINCASE, CHAIN
-
1709139-06083 SCREW (6X16)SCREW (6X16)
-
1861445-33E00 WASHER, CHAIN ADJUSTER (RIGHT)WASHER, CHAIN ADJUSTER (RIGHT)
-
1961446-33E10 WASHER, CHAIN ADJUSTER (LEFT)WASHER, CHAIN ADJUSTER (LEFT)
-
2009100-08287 BOLT (8X50)BOLT (8X50)
-
2108316-10083 NUTNUT
-
2264310-33E00 TORQUE LINK (REAR)TORQUE LINK (REAR)
-
2309111-08083 BOLT (FRONT) (8X44)BOLT (FRONT) (8X44)
-
2408319-31087 NUTNUT
-
2509103-10019 BOLT (REAR) (10X37)BOLT (REAR) (10X37)
-
2608319-31107 NUTNUT
-
2761214-40C31 NUT, PIVOT BOLTNUT, PIVOT BOLT
-
2861279-34E00 PLATE, CHAIN BUFFERPLATE, CHAIN BUFFER
