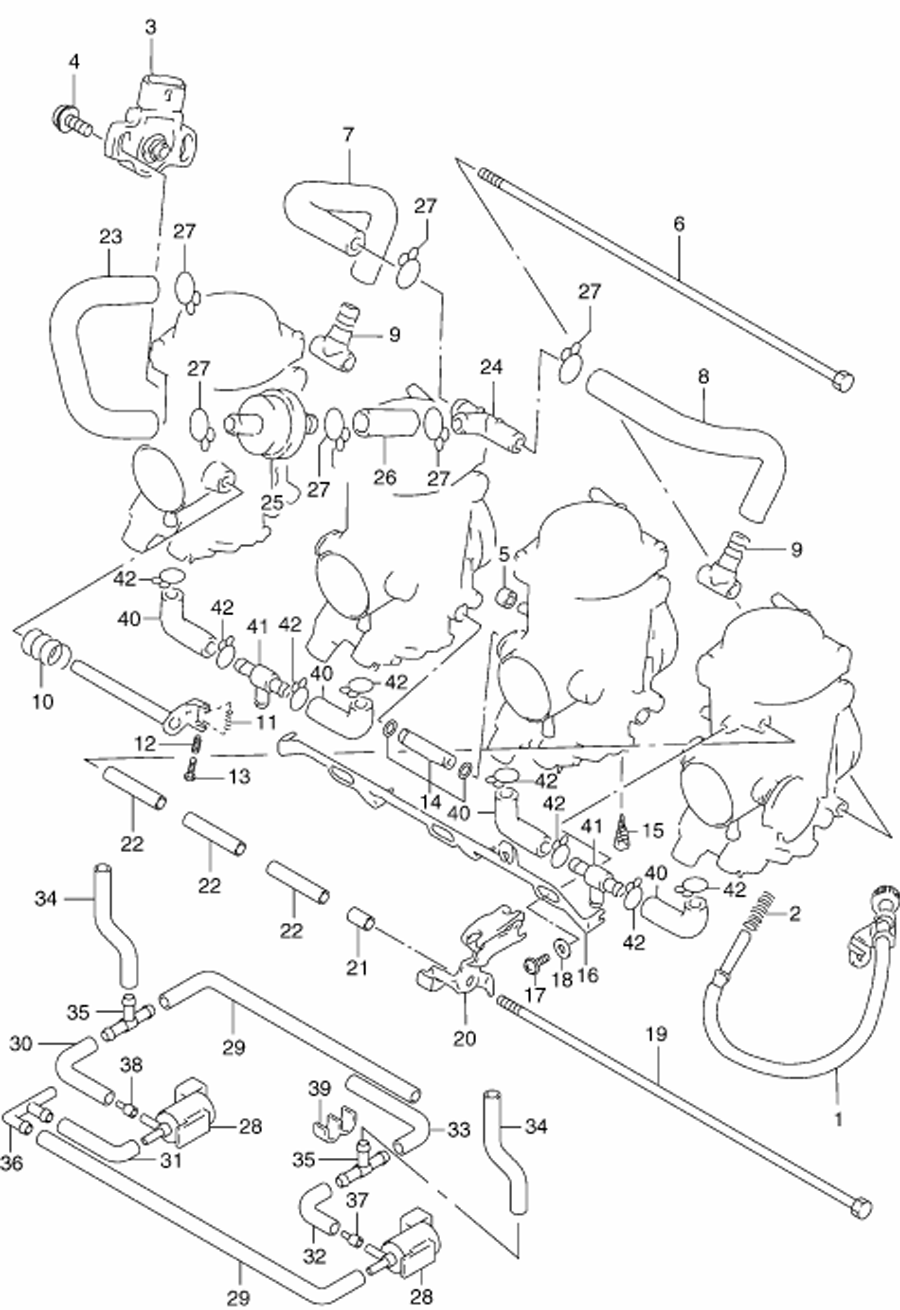

CARBURETOR FITTINGS для Suzuki GSX-R600 Y - 2000 года выпуска

№

Артикул

Название
1

13267-34E00 ADJUSTER

ADJUSTER
2

13271-33C00 SPRING

SPRING
3

13550-13D60 SENSOR ASSY., THROTTLE

SENSOR ASSY., THROTTLE
4-2

13605-20C00 SCREW

SCREW
5

13685-34E20 PIPE

PIPE
6

13612-34E00 BOLT

BOLT
7

13683-33E10 HOSE

HOSE
8

13683-33E00 HOSE

HOSE
9

13683-34C00 HOSE, 3 WAY

HOSE, 3 WAY
10

13573-06C10 SPRING

SPRING
11

13268-96110 SPRING

SPRING
12

13271-44B00 SPRING

SPRING
13

13267-44B00 SCREW

SCREW
14

13685-31310 PIPE

PIPE
15

13236-26D00 FILTER

FILTER
16

13413-33E00 LEVER, STARTER

LEVER, STARTER
17

02142-04083 SCREW

SCREW
18

13557-33E00 PACKING

PACKING
19

13612-33E00 BOLT

BOLT
20

13565-34E00 BRACKET

BRACKET
21

13685-34E10 PIPE

PIPE
22

13685-34E00 PIPE

PIPE
23

13684-33E00 HOSE, AIR VENT NO.1

HOSE, AIR VENT NO.1
24

13855-18A03 3 WAY

3 WAY
25

15410-33E00 FILTER

FILTER
26

09352-11153-600 HOSE, AIR VENT NO.2 (L:600R30)

HOSE, AIR VENT NO.2 (L:600R30)
27

09401-14401 CLIP

CLIP
28

13161-16720 SOLENOID ASSY.

SOLENOID ASSY.
29

09355-30705-600 HOSE (L:600R275)

HOSE (L:600R275)
30

09355-30705-600 HOSE (L:600R105)

HOSE (L:600R105)
31

09355-30705-600 HOSE (L:600R135)

HOSE (L:600R135)
32-2

13683-10F60 HOSE

HOSE
33-2

13683-10F60 HOSE

HOSE
34-2

13683-10F60 HOSE

HOSE
35

09367-04007 NIPPLE

NIPPLE
36

09367-04009 NIPPLE

NIPPLE
37-2

09493-20020 JET, AIR

JET, AIR
38

09493-20020 JET, AIR

JET, AIR
39

09408-00033 CLIP

CLIP
40

13684-48B10 HOSE (CALIF. ONLY)

HOSE (CALIF. ONLY)
41

13685-48B00 NIPPLE (CALIF. ONLY)

NIPPLE (CALIF. ONLY)
42

09401-10410 CLIP (CALIF. ONLY)

CLIP (CALIF. ONLY)
