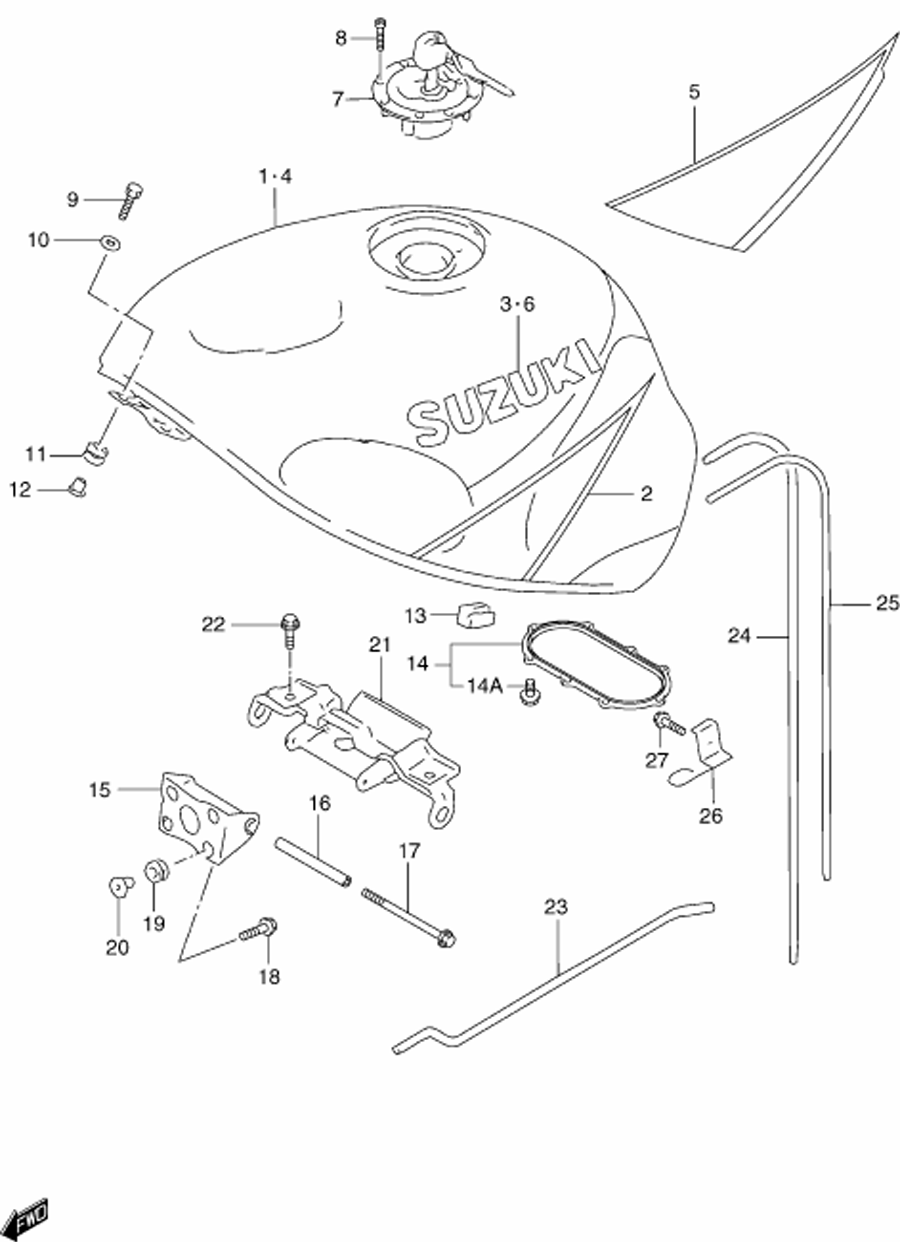

FUEL TANK для Suzuki GSX-R600 Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1-1
    44100-34EC0-L99 TANK ASSY., FUEL (L99 - WHITE /BLUE) (EXCEPT CALIF.)
    TANK ASSY., FUEL (L99 - WHITE /BLUE) (EXCEPT CALIF.)
  • 1-2
    44100-34ED0-L99 TANK ASSY., FUEL (L99 - WHITE /BLUE) (CALIF. ONLY)
    TANK ASSY., FUEL (L99 - WHITE /BLUE) (CALIF. ONLY)
  • 2
    68110-34E40-1LE ...TAPE SET, FUEL TANK (1TL - BLUE)
    ...TAPE SET, FUEL TANK (1TL - BLUE)
  • 3
    68111-12C00-0JW ...EMBLEM (0JW - WHITE) (BLACK)
    ...EMBLEM (0JW - WHITE) (BLACK)
  • 4-1
    44100-34EE0-Y9H TANK ASSY., FUEL (Y9H - YELLOW) (EXCEPT CALIF.) (FOR BP9)
    TANK ASSY., FUEL (Y9H - YELLOW) (EXCEPT CALIF.) (FOR BP9)
  • 4-2
    44100-34EE0-Y7E TANK ASSY., FUEL (Y7E - BLUE) (EXCEPT CALIF.) (FOR CB3)
    TANK ASSY., FUEL (Y7E - BLUE) (EXCEPT CALIF.) (FOR CB3)
  • 4-3
    44100-34EF0-Y9H TANK ASSY., FUEL (Y9H - YELLOW) (CALIF. ONLY) (FOR BP9)
    TANK ASSY., FUEL (Y9H - YELLOW) (CALIF. ONLY) (FOR BP9)
  • 4-4
    44100-34EF0-Y7E TANK ASSY., FUEL (Y7E - BLUE) (CALIF. ONLY) (FOR CB3)
    TANK ASSY., FUEL (Y7E - BLUE) (CALIF. ONLY) (FOR CB3)
  • 5-1
    68110-34E50-M6N ...TAPE SET, FUEL TANK (M6N - ) (FOR Y9H - YELLOW)
    ...TAPE SET, FUEL TANK (M6N - ) (FOR Y9H - YELLOW)
  • 5-2
    68110-34E50-BF7 ...TAPE SET, FUEL TANK (FOR YZE - BLUE)
    ...TAPE SET, FUEL TANK (FOR YZE - BLUE)
  • 6-1
    68111-12C00-Y7L ...EMBLEM (Y7L - BLACK) (FOR Y9H - YELLOW)
    ...EMBLEM (Y7L - BLACK) (FOR Y9H - YELLOW)
  • 6-2
    68111-12C00-Y2D ...EMBLEM (Y2D - CARBON) (FOR Y7E - BLUE)
    ...EMBLEM (Y2D - CARBON) (FOR Y7E - BLUE)
  • 7-1
    44200-33820 CAP SET, FUEL TANK (EXCEPT CALIF.)
    CAP SET, FUEL TANK (EXCEPT CALIF.)
  • 7-2
    44200-33830 CAP SET, FUEL TANK (CALIF. ONLY)
    CAP SET, FUEL TANK (CALIF. ONLY)
  • 8
    09106-05017 BOLT, CAP
    BOLT, CAP
  • 9
    09139-06029 BOLT (FRONT)
    BOLT (FRONT)
  • 10
    09160-06084 WASHER
    WASHER
  • 11
    09320-09009 CUSHION
    CUSHION
  • 12
    09169-06062 SPACER
    SPACER
  • 13
    44541-33E00 CUSHION, SIDE
    CUSHION, SIDE
  • 14
    44590-02820 GASKET SET, FUEL PUMP
    GASKET SET, FUEL PUMP
  • 14A
    15211-02F00 ...BOLT
    ...BOLT
  • 15
    44530-33E00 BRACKET, NO.1
    BRACKET, NO.1
  • 16
    44561-33E10 SPACER, JOINT
    SPACER, JOINT
  • 17
    01550-08953 BOLT, JOINT
    BOLT, JOINT
  • 18
    09116-06152 BOLT
    BOLT
  • 19
    09320-08001 CUSHION
    CUSHION
  • 20
    09169-06062 SPACER
    SPACER
  • 21
    44550-33E00 BRACKET, NO.2
    BRACKET, NO.2
  • 22
    01550-08163 BOLT
    BOLT
  • 23
    44574-33E01 STAY, FUEL TANK
    STAY, FUEL TANK
  • 24
    09352-50823-600 HOSE, BREATHER (L:600R580)
    HOSE, BREATHER (L:600R580)
  • 25
    09352-70103-600 HOSE, WATER DRAIN (L:600R570)
    HOSE, WATER DRAIN (L:600R570)
  • 26
    44480-33E00 GUIDE, DRAIN HOSE
    GUIDE, DRAIN HOSE
  • 27
    01550-06123 BOLT, GUIDE
    BOLT, GUIDE
