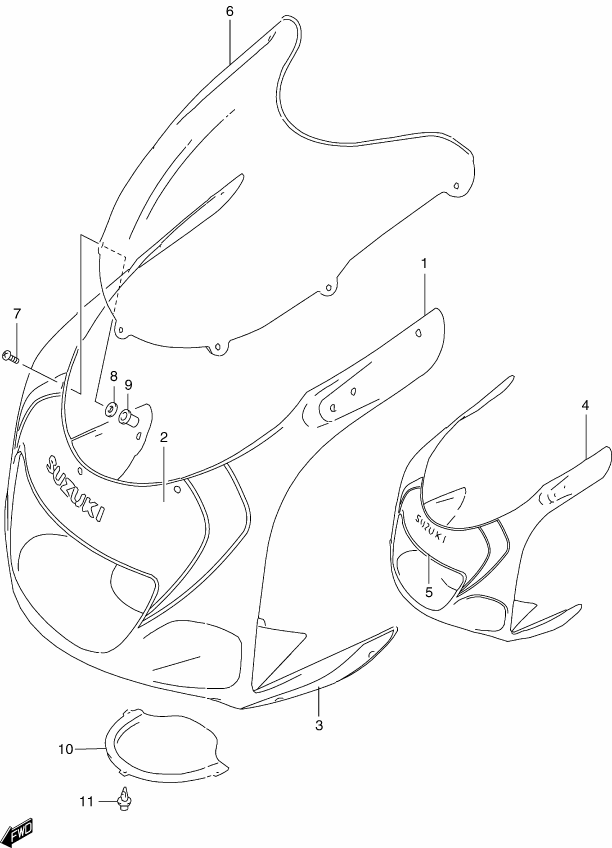

COWLING BODY для Suzuki GSX-R600 Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    94400-34E60-1LF COWLING ASSY., BODY (1LF - BLUE) ( FOR L99 - WHITE/BLUE)
    COWLING ASSY., BODY (1LF - BLUE) ( FOR L99 - WHITE/BLUE)
  • 2
    68270-34E60-CA6 .TAPE SET, BODY (FRONT)
    .TAPE SET, BODY (FRONT)
  • 3
    68280-34E10-0JW .TAPE SET, BODY SIDE (OJW - WHITE)
    .TAPE SET, BODY SIDE (OJW - WHITE)
  • 4-1
    94400-34E70-Y9H COWLING ASSY., BODY (Y9H - YELLOW) (FOR BP9 - )
    COWLING ASSY., BODY (Y9H - YELLOW) (FOR BP9 - )
  • 4-2
    94400-34E70-Y7E COWLING ASSY., BODY (Y7E - BLUE) (FOR CB3 - )
    COWLING ASSY., BODY (Y7E - BLUE) (FOR CB3 - )
  • 5-1
    68270-34E70-M6N .TAPE SET, BODY (FRONT( (M6N) (FOR Y9H - YELLOW)
    .TAPE SET, BODY (FRONT( (M6N) (FOR Y9H - YELLOW)
  • 5-1
    68270-34E70-BF7 .TAPE SET, BODY (FRONT) (BF7) (FOR Y7E - BLUE)
    .TAPE SET, BODY (FRONT) (BF7) (FOR Y7E - BLUE)
  • 6
    94611-33E10 WIND SCREEN
    WIND SCREEN
  • 7
    09139-05025 SCREW
    SCREW
  • 8
    08322-01053 WASHER
    WASHER
  • 9
    09159-05019 NUT
    NUT
  • 10
    94419-33E01 LID (LOWER)
    LID (LOWER)
  • 11
    09409-06322-5PK CLIP (BLACK)
    CLIP (BLACK)
