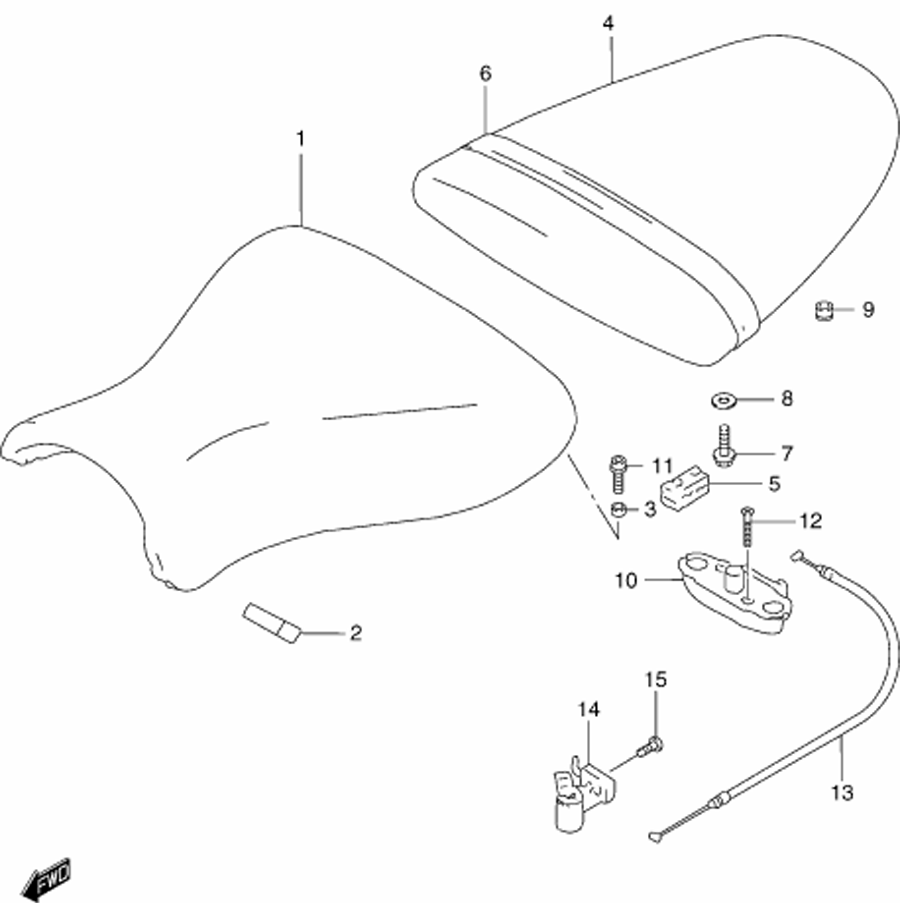

SEAT для Suzuki GSX-R600 Y - 2000 года выпуска

№

Артикул

Название
1

45100-33E20-R42 SEAT ASSY. (BLACK)

SEAT ASSY. (BLACK)
2

45149-31E00 ...CUSHION

...CUSHION
3

45112-33E00 ...SPACER (6.5X10.5X6)

...SPACER (6.5X10.5X6)
4

45300-33E20-R42 SEAT ASSY., PILLION (BLACK)

SEAT ASSY., PILLION (BLACK)
5

45149-31300 ...CUSHION

...CUSHION
6

45180-33E00-R42 ...BAND ASSY., SEAT (BLACK)

...BAND ASSY., SEAT (BLACK)
7

01550-06203 ...BOLT

...BOLT
8

09160-06088 ...WASHER

...WASHER
9

45213-31300 ...CUSHION

...CUSHION
10

45220-20A01 BRACKET, SEAT SUPPORT

BRACKET, SEAT SUPPORT
11

09106-06064 BOLT (FRONT) (6X18)

BOLT (FRONT) (6X18)
12

02122-06303 SCREW (REAR)

SCREW (REAR)
13

45280-17E00 CABLE, SEAT LOCK

CABLE, SEAT LOCK
14

95700-31840 LOCK ASSY., SEAT

LOCK ASSY., SEAT
15

02142-05103 SCREW

SCREW
