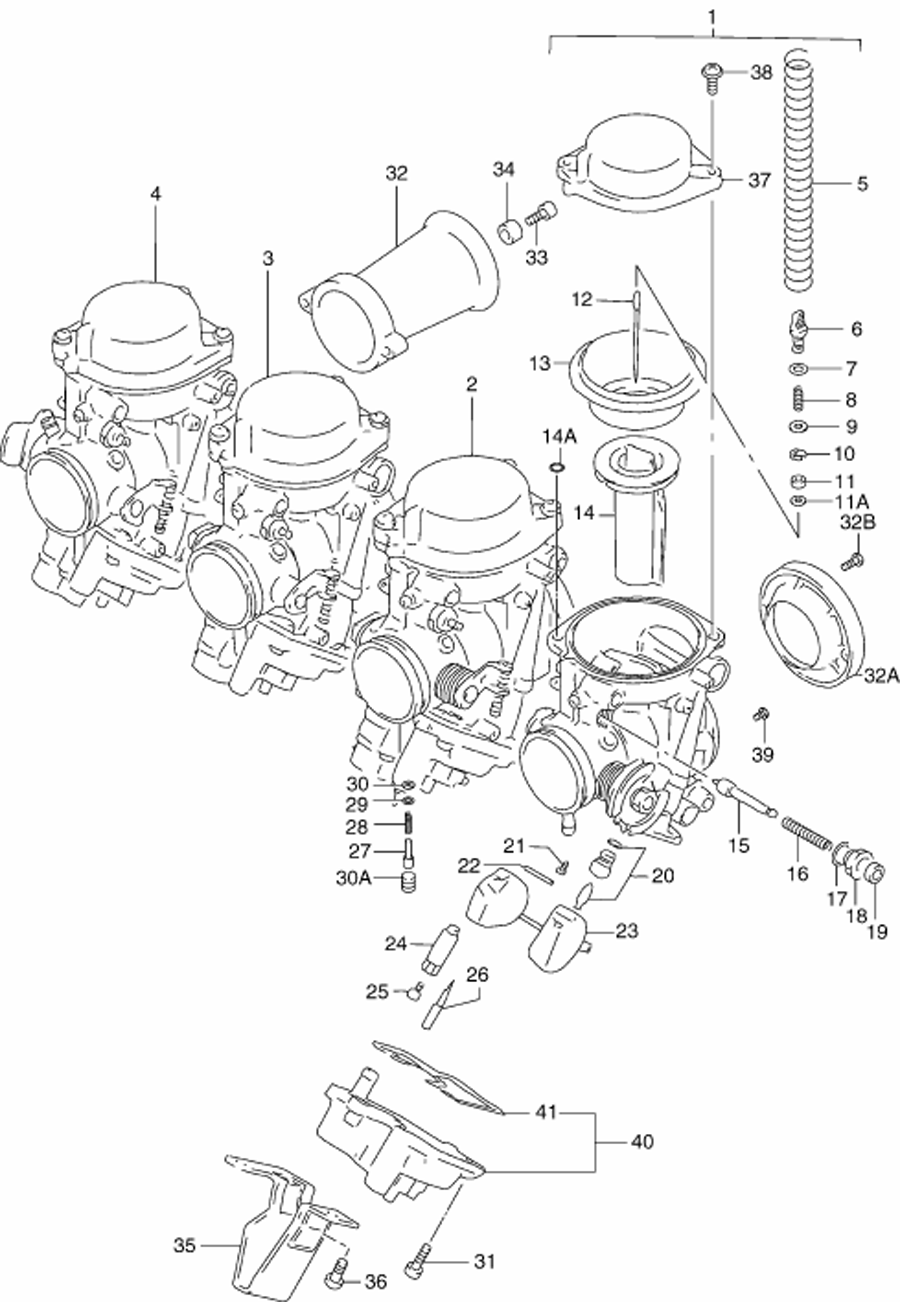

CARBURETOR ASSY. для Suzuki GSX-R600 Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1-3
    13201-34EC0 CARBURETOR ASSY. (LEFT) (EXCEPT CALIF.)
    CARBURETOR ASSY. (LEFT) (EXCEPT CALIF.)
  • 1-4
    13201-34EE0 CARBURETOR ASSY. (LEFT) (CALIF. ONLY)
    CARBURETOR ASSY. (LEFT) (CALIF. ONLY)
  • 2-3
    13202-34EC0 CARBURETOR ASSY. (MIDDLE LEFT) (EXCEPT CALIF.)
    CARBURETOR ASSY. (MIDDLE LEFT) (EXCEPT CALIF.)
  • 2-4
    13202-34EE0 CARBURETOR ASSY. (MIDDLE LEFT) (CALIF. ONLY)
    CARBURETOR ASSY. (MIDDLE LEFT) (CALIF. ONLY)
  • 3-3
    13203-34EC0 CARBURETOR ASSY. (MIDDLE RIGHT) (EXCEPT CALIF.)
    CARBURETOR ASSY. (MIDDLE RIGHT) (EXCEPT CALIF.)
  • 3-4
    13203-34EE0 CARBURETOR ASSY. (MIDDLE RIGHT) (CALIF. ONLY)
    CARBURETOR ASSY. (MIDDLE RIGHT) (CALIF. ONLY)
  • 4-3
    13204-34EC0 CARBURETOR ASSY. (RIGHT) (EXCEPT CALIF.)
    CARBURETOR ASSY. (RIGHT) (EXCEPT CALIF.)
  • 4-4
    13204-34EE0 CARBURETOR ASSY. (RIGHT) (CALIF. ONLY)
    CARBURETOR ASSY. (RIGHT) (CALIF. ONLY)
  • 5
    13573-34E00 ...SPRING
    ...SPRING
  • 6
    13418-33E00 ...GUIDE
    ...GUIDE
  • 7
    09280-05004 ...O-RING
    ...O-RING
  • 8
    13481-33E00 ...SPRING
    ...SPRING
  • 9
    13382-44030 ...WASHER
    ...WASHER
  • 10
    13394-17E60 ...E-RING
    ...E-RING
  • 11-2
    13387-44030 ...RING
    ...RING
  • 11A
    13382-19E00 ...WASHER (CALIF. ONLY)
    ...WASHER (CALIF. ONLY)
  • 12-2
    13383-34E10 ...NEEDLE, JET (5DH20-53-1) (EXCEPT CALIF.)
    ...NEEDLE, JET (5DH20-53-1) (EXCEPT CALIF.)
  • 12-3
    13383-34E10 ...NEEDLE, JET (5DH20-53-1) (CALIF. ONLY)
    ...NEEDLE, JET (5DH20-53-1) (CALIF. ONLY)
  • 13
    13507-17C01 ...DIAPHRAGM
    ...DIAPHRAGM
  • 14
    13501-34E00 ...VALVE, PISTON
    ...VALVE, PISTON
  • 14A
    13295-33010 ...O-RING
    ...O-RING
  • 15-2
    13411-34EC0 ...PLUNGER (EXCEPT CALIF.)
    ...PLUNGER (EXCEPT CALIF.)
  • 15-3
    13411-34EE0 ...PLUNGER (CALIF. ONLY)
    ...PLUNGER (CALIF. ONLY)
  • 16
    13417-26D00 ...SPRING
    ...SPRING
  • 17
    13278-47090 ...O-RING
    ...O-RING
  • 18
    13418-44080 ...HOLDER, GUIDE
    ...HOLDER, GUIDE
  • 19
    13682-31210 ...CAP
    ...CAP
  • 20
    13370-33E80 ...VALVE ASSY., NEEDLE
    ...VALVE ASSY., NEEDLE
  • 21
    13602-05A10 ...SCREW
    ...SCREW
  • 22
    13254-92910 ...PIN
    ...PIN
  • 23
    13250-33E00 ...FLOAT ASSY.
    ...FLOAT ASSY.
  • 24
    13385-33E00 ...HOLDER, JET
    ...HOLDER, JET
  • 25-3
    09491-26013 ...JET, MAIN (132.5) (LEFT/RIGHT)
    ...JET, MAIN (132.5) (LEFT/RIGHT)
  • 25-4
    09491-26016 ...JET, MAIN (130) (MIDDLE LEFT/MIDDLE RIGHT)
    ...JET, MAIN (130) (MIDDLE LEFT/MIDDLE RIGHT)
  • 26
    09492-12008 ...JET, PILOT (12.5)
    ...JET, PILOT (12.5)
  • 27-1
    13279-33E00 ...ADJUSTER (4,0) (LEFT/RIGHT)
    ...ADJUSTER (4,0) (LEFT/RIGHT)
  • 27-2
    13279-33E00 ...ADJUSTER (3,1/2) (MIDDLE LEFT/MIDDLE RIGHT)
    ...ADJUSTER (3,1/2) (MIDDLE LEFT/MIDDLE RIGHT)
  • 28
    13268-48700 ...SPRING
    ...SPRING
  • 29
    13291-29900 ...WASHER
    ...WASHER
  • 30
    13295-29900 ...O-RING
    ...O-RING
  • 30A
    13281-05A00 ...PLUG
    ...PLUG
  • 31
    02112-05127 ...SCREW
    ...SCREW
  • 32A
    13667-34E00 ...FUNNEL
    ...FUNNEL
  • 32B
    02112-04107 ...SCREW
    ...SCREW
  • 35
    13454-34E60 ...BRACKET
    ...BRACKET
  • 36
    02112-04107 ...SCREW
    ...SCREW
  • 37
    13502-34E00 ...COVER
    ...COVER
  • 38
    13247-33E00 ...SCREW
    ...SCREW
  • 39-1
    09491-28011 ...JET, PILOT AIR (140) (EXCEPT CALIF.)
    ...JET, PILOT AIR (140) (EXCEPT CALIF.)
  • 39-2
    09491-27008 ...JET, PILOT AIR (135) (CALIF. ONLY)
    ...JET, PILOT AIR (135) (CALIF. ONLY)
  • 40-1
    13245-34E00 ...BODY, FLOAT (LEFT/MIDDLE LEFT) (EXCEPT CALIF.)
    ...BODY, FLOAT (LEFT/MIDDLE LEFT) (EXCEPT CALIF.)
  • 40-2
    13245-34E40 ...BODY, FLOAT LH/ML (CALIF. ONLY)
    ...BODY, FLOAT LH/ML (CALIF. ONLY)
  • 40-3
    13245-34E10 ...BODY, FLOAT (MIDDLE RIGHT/ RIGHT) (EXCEPT CALIF.)
    ...BODY, FLOAT (MIDDLE RIGHT/ RIGHT) (EXCEPT CALIF.)
  • 40-4
    13245-34E30 ...BODY, FLOAT (MIDDLE RIGHT/RIGHT) (CALIF. ONLY)
    ...BODY, FLOAT (MIDDLE RIGHT/RIGHT) (CALIF. ONLY)
  • 41
    13258-33E00 ......O-RING
    ......O-RING
