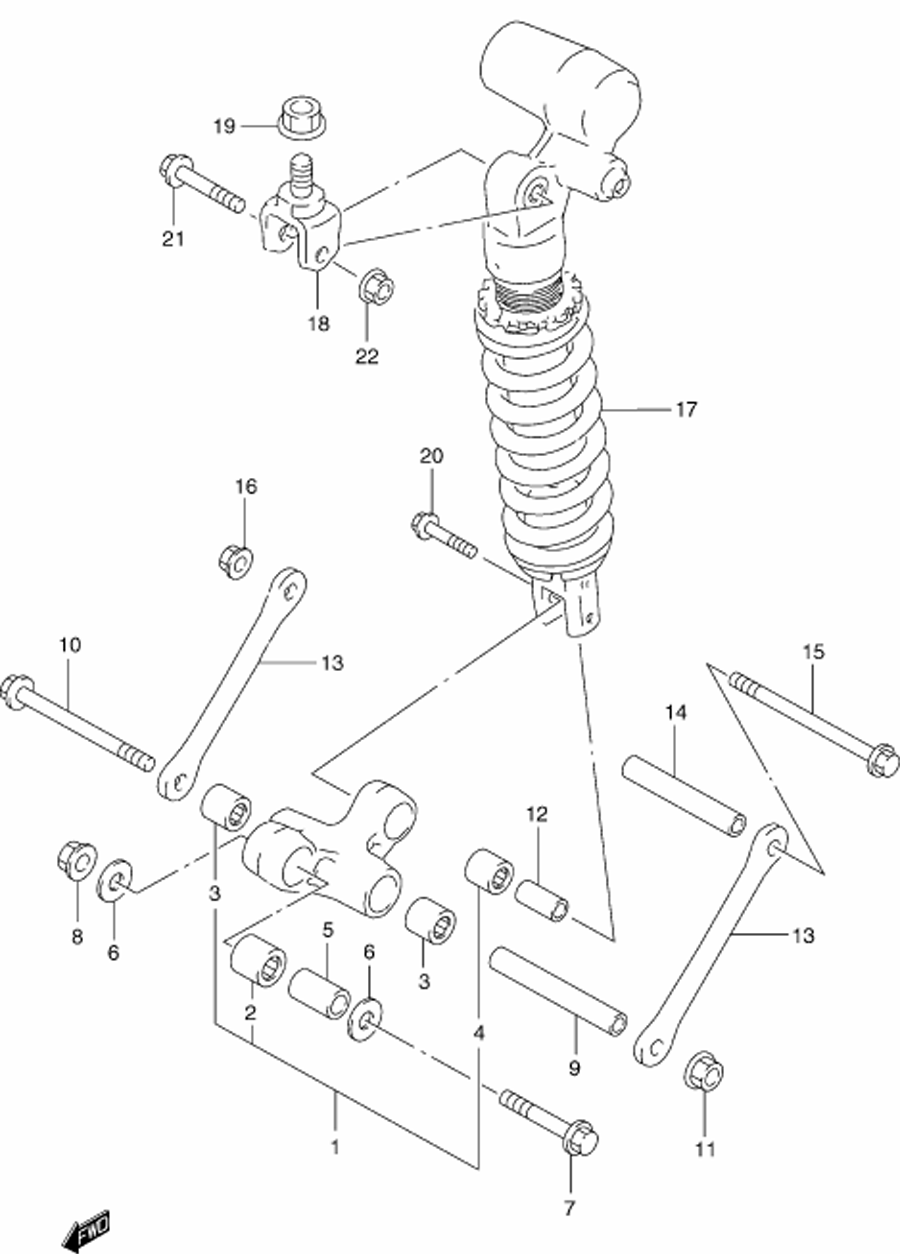

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki GSX-R600 Y - 2000 года выпуска
-
№АртикулНазвание
-
162600-34820 LEVER SET, CUSHION 9REAR)LEVER SET, CUSHION 9REAR)
-
209263-20073 ...BEARING (FRONT) (20X27X30)...BEARING (FRONT) (20X27X30)
-
309263-17039 ...BEARING (CENTER) (17X24X20)...BEARING (CENTER) (17X24X20)
-
409263-17034 ...BEARING (REAR) (17X24X26)...BEARING (REAR) (17X24X26)
-
562684-12C00 SPACER (FRONT) (12X20X32)SPACER (FRONT) (12X20X32)
-
608211-12301 WASHERWASHER
-
762658-33E00 BOLT (FRONT) (12X72)BOLT (FRONT) (12X72)
-
808319-31128 NUTNUT
-
962626-33D00 SPACER (CENTER) (12X17X94)SPACER (CENTER) (12X17X94)
-
1062621-33D00 BOLT (CENTER) (12X124)BOLT (CENTER) (12X124)
-
1108319-31128 NUTNUT
-
1262684-40A10 SPACER (REAR) (10X17X30)SPACER (REAR) (10X17X30)
-
1362641-33E00 ROD, CUSHION LEVER (REAR)ROD, CUSHION LEVER (REAR)
-
1462626-33D00 SPACER, ROD (12X17X94)SPACER, ROD (12X17X94)
-
1562621-33D00 BOLT, ROD (12X124)BOLT, ROD (12X124)
-
1608319-31128 NUTNUT
-
17-262100-34E20 ABSORBER ASSY., SHOCK (REAR)ABSORBER ASSY., SHOCK (REAR)
-
1862993-33E11 BRACKET, ABSORBERBRACKET, ABSORBER
-
1909159-20006 NUTNUT
-
2009103-10049 BOLT (LOWER) (10X44)BOLT (LOWER) (10X44)
-
2109103-10101 BOLT (UPPER) (10X54)BOLT (UPPER) (10X54)
-
2208319-31107 NUTNUT
