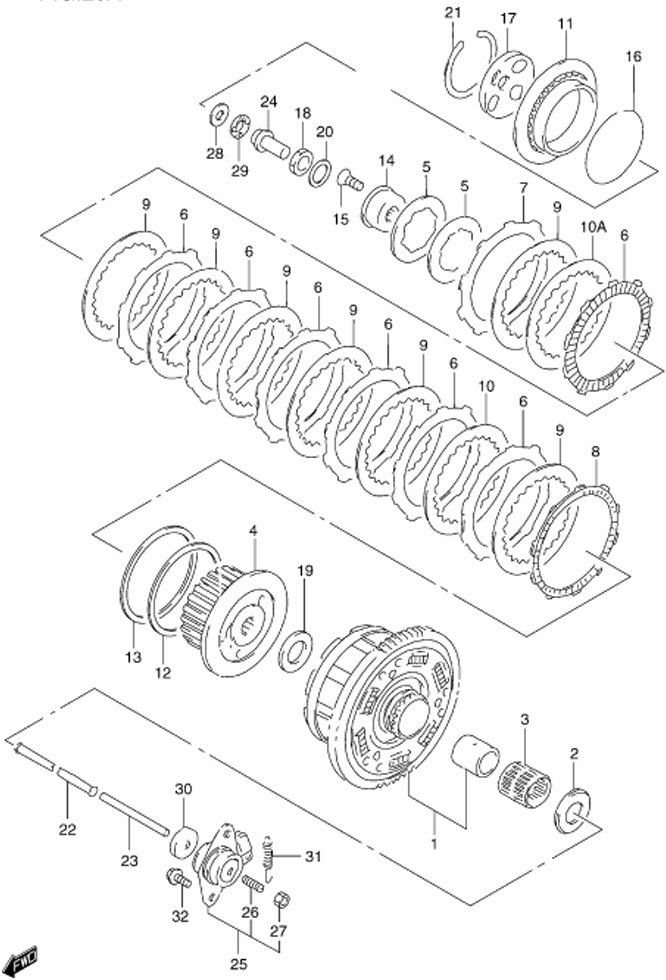

CLUTCH для Suzuki GSX-R600 Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    21200-31890 GEAR ASSY., PRIMARY DRIVEN
    GEAR ASSY., PRIMARY DRIVEN
  • 2
    09160-25037 WASHER (25.1X54X2.5)
    WASHER (25.1X54X2.5)
  • 3
    09263-35017 BEARING (35X40X35.8)
    BEARING (35X40X35.8)
  • 4
    21410-31E20 HUB, CLUTCH SLEEVE
    HUB, CLUTCH SLEEVE
  • 5
    21413-31E40 SPRING, CLUTCH
    SPRING, CLUTCH
  • 6
    21441-31E50 PLATE, CLUTCH DRIVE,NO.1
    PLATE, CLUTCH DRIVE,NO.1
  • 7
    21441-31E60 PLATE, CLUTCH DRIVE,NO.2
    PLATE, CLUTCH DRIVE,NO.2
  • 8
    21442-31E20 PLATE, CLUTCH DRIVE,NO.3
    PLATE, CLUTCH DRIVE,NO.3
  • 9
    21451-31E20 PLATE, CLUTCH DRIVEN,NO.1 (T:2.3)
    PLATE, CLUTCH DRIVEN,NO.1 (T:2.3)
  • 10
    21451-31E30 PLATE, CLUTCH DRIVEN,NO.2 (T:2.6)
    PLATE, CLUTCH DRIVEN,NO.2 (T:2.6)
  • 10A
    21451-31E10 PLATE, CLUTCH DRIVEN,NO.3 (T:2.0)
    PLATE, CLUTCH DRIVEN,NO.3 (T:2.0)
  • 11-2
    21462-31E20 DISC, CLUTCH PRESSURE
    DISC, CLUTCH PRESSURE
  • 12
    21471-31E20 SEAT, CLUTCH PLATE
    SEAT, CLUTCH PLATE
  • 13
    21472-31E01 WASHER, CLUTCH PLATE
    WASHER, CLUTCH PLATE
  • 14
    21611-31E20 HOLDER, CLUTCH SPRING
    HOLDER, CLUTCH SPRING
  • 15
    21614-31E20 SCREW, CLUTCH SPRING
    SCREW, CLUTCH SPRING
  • 16
    21623-31E20 SEAT, CLUTCH SPRING
    SEAT, CLUTCH SPRING
  • 17
    21463-40C01 LIFTER, CLUTCH RELEASE
    LIFTER, CLUTCH RELEASE
  • 18
    09159-24010 NUT, CLUTCH SLEEVE HUB
    NUT, CLUTCH SLEEVE HUB
  • 19
    08211-25505 WASHER, CLUTCH SLEEVE THR
    WASHER, CLUTCH SLEEVE THR
  • 20
    09164-24006 WASHER, CLUTCH WAVE (24.2X35X2)
    WASHER, CLUTCH WAVE (24.2X35X2)
  • 21-2
    09381-84003 CIRCLIP, CLUTCH PRESSURE
    CIRCLIP, CLUTCH PRESSURE
  • 22
    23110-27A00 ROD, CLUTCH PUSH (RIGHT)
    ROD, CLUTCH PUSH (RIGHT)
  • 23
    23111-34C00 ROD, CLUTCH PUSH (LEFT)
    ROD, CLUTCH PUSH (LEFT)
  • 24
    23121-31E10 PIECE, CLUTCH PUSH
    PIECE, CLUTCH PUSH
  • 25
    23200-20C00 SCREW ASSY.,CLUTCH RELEASE
    SCREW ASSY.,CLUTCH RELEASE
  • 26
    09134-06010 ...SCREW (6X25)
    ...SCREW (6X25)
  • 27
    08310-00067 ...NUT
    ...NUT
  • 28
    09160-15045 WASHER, CLUTCH PUSH (15.5X28X1)
    WASHER, CLUTCH PUSH (15.5X28X1)
  • 29
    09263-15003 BEARING, CLUTCH PUSH (15X28X2)
    BEARING, CLUTCH PUSH (15X28X2)
  • 30
    09285-06015 SEAL, CLUTCH PUSH ROD (6X34X5.5)
    SEAL, CLUTCH PUSH ROD (6X34X5.5)
  • 31
    09443-09044 SPRING, CLUTCH RELEASE
    SPRING, CLUTCH RELEASE
  • 32
    01550-06163 BOLT, CLUTCH RELEASE
    BOLT, CLUTCH RELEASE
