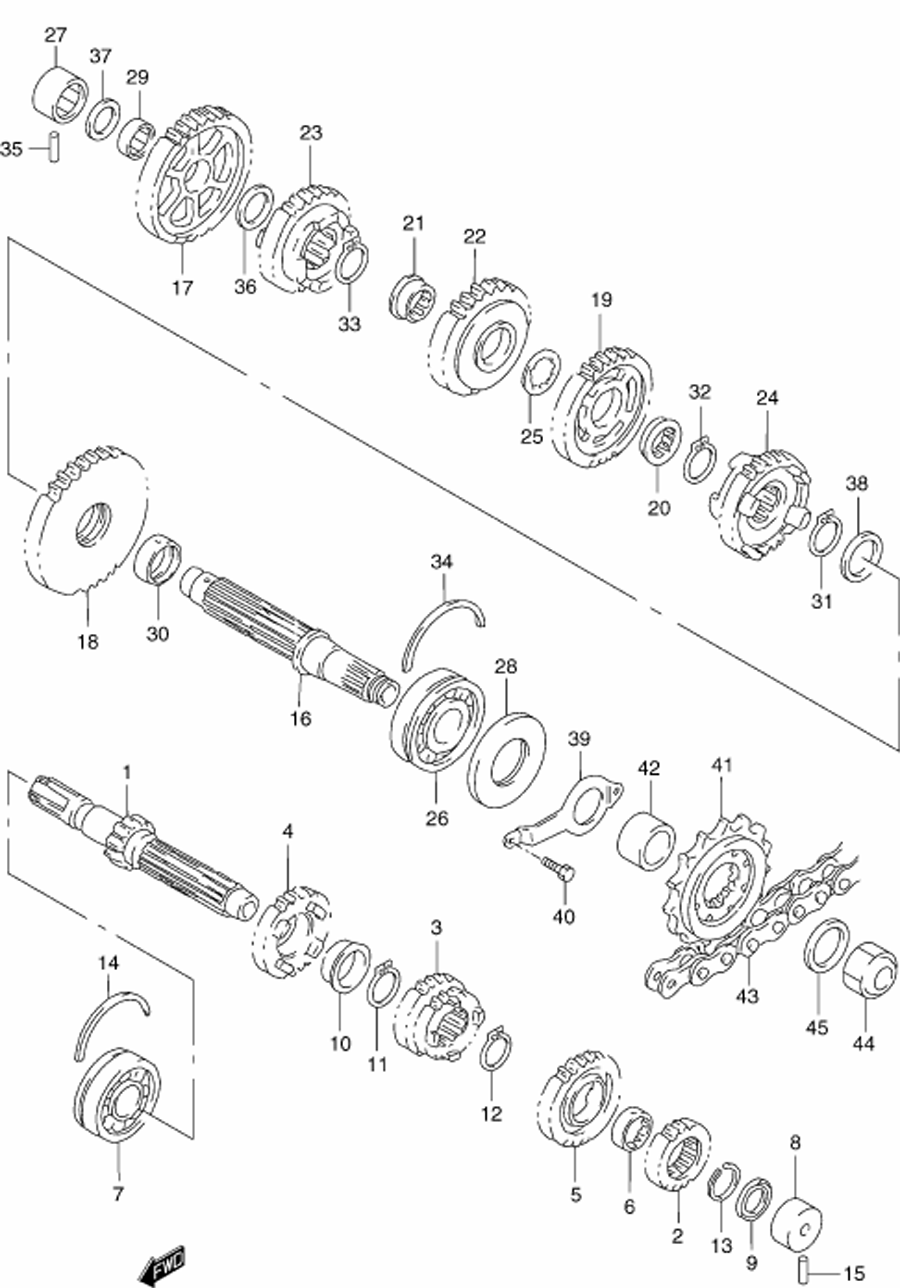

TRANSMISSION для Suzuki GSX-R600 Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    24120-33E00 SHAFT, COUNTER (NT:15)
    SHAFT, COUNTER (NT:15)
  • 2-2
    24221-34E00 GEAR, 2ND DRIVE (NT:19)
    GEAR, 2ND DRIVE (NT:19)
  • 3-2
    24231-34E00 GEAR, 3RD & 4TH (NT:20/21)
    GEAR, 3RD & 4TH (NT:20/21)
  • 4-2
    24251-34E00 GEAR, 5TH DRIVE (NT:21)
    GEAR, 5TH DRIVE (NT:21)
  • 5-2
    24261-34E00 GEAR, 6TH DRIVE (NT:22)
    GEAR, 6TH DRIVE (NT:22)
  • 6
    24262-17E10 BUSH, 6TH DRIVE GEAR
    BUSH, 6TH DRIVE GEAR
  • 7
    09262-25051 BEARING (CENTER/RIGHT) (25X62X17)
    BEARING (CENTER/RIGHT) (25X62X17)
  • 8-2
    09263-20085 BEARING (CENTER LEFT) (20X34X17.5)
    BEARING (CENTER LEFT) (20X34X17.5)
  • 9
    09285-20006 SEAL, OIL (20X31.2X2.7)
    SEAL, OIL (20X31.2X2.7)
  • 10
    09301-28001 BUSH, 5TH DRIVE GEAR (28X32X2)
    BUSH, 5TH DRIVE GEAR (28X32X2)
  • 11
    09380-27001 CIRCLIP, 5TH DRIVE
    CIRCLIP, 5TH DRIVE
  • 12
    09380-27001 CIRCLIP, 6TH DRIVE
    CIRCLIP, 6TH DRIVE
  • 13
    09380-27004 CIRCLIP, 2ND DRIVE
    CIRCLIP, 2ND DRIVE
  • 14
    09390-62012 C-RING (CENTER RIGHT)
    C-RING (CENTER RIGHT)
  • 15
    04221-07209 PIN (CENTER LEFT)
    PIN (CENTER LEFT)
  • 16
    24131-33E00 SHAFT, DRIVE
    SHAFT, DRIVE
  • 17-2
    24311-17E01 GEAR, 1ST DRIVEN (NT:43)
    GEAR, 1ST DRIVEN (NT:43)
  • 18-2
    24321-34E00 GEAR, 2ND DRIVEN (NT:39)
    GEAR, 2ND DRIVEN (NT:39)
  • 19-2
    24331-34E00 GEAR, 3RD DRIVEN (NT:33)
    GEAR, 3RD DRIVEN (NT:33)
  • 20
    24332-17E10 BUSH, 3RD DRIVEN GEAR
    BUSH, 3RD DRIVEN GEAR
  • 21
    24332-17E10 BUSH, 4TH DRIVEN GEAR
    BUSH, 4TH DRIVEN GEAR
  • 22-2
    24341-34E00 GEAR, 4TH DRIVEN (NT:30)
    GEAR, 4TH DRIVEN (NT:30)
  • 23-2
    24351-34E00 GEAR, 5TH DRIVEN (NT:27)
    GEAR, 5TH DRIVEN (NT:27)
  • 24-2
    24361-34E00 GEAR, 6TH DRIVEN (NT:26)
    GEAR, 6TH DRIVEN (NT:26)
  • 25
    09167-27002 WASHER, 3RD & 4TH DRIVEN
    WASHER, 3RD & 4TH DRIVEN
  • 26
    09262-28025 BEARING, DRIVE SHAFT (LEFT) (28X70X18)
    BEARING, DRIVE SHAFT (LEFT) (28X70X18)
  • 27
    09263-20040 BEARING, DRIVE SHAFT (RIGHT) (20X34X20)
    BEARING, DRIVE SHAFT (RIGHT) (20X34X20)
  • 28
    09283-36008 SEAL, DRIVE SHAFT,OIL (36X70X6)
    SEAL, DRIVE SHAFT,OIL (36X70X6)
  • 29
    09300-22008 BUSH, 1ST DRIVEN GEAR (22X26X9)
    BUSH, 1ST DRIVEN GEAR (22X26X9)
  • 30
    09300-28003 BUSH, 2ND DRIVEN GEAR (28X32X9.5)
    BUSH, 2ND DRIVEN GEAR (28X32X9.5)
  • 31
    09380-27001 CIRCLIP, 2ND DRIVEN GEAR
    CIRCLIP, 2ND DRIVEN GEAR
  • 32
    09380-27001 CIRCLIP, 3RD DRIVEN GEAR
    CIRCLIP, 3RD DRIVEN GEAR
  • 33
    09380-27001 CIRCLIP, 4TH DRIVEN GEAR
    CIRCLIP, 4TH DRIVEN GEAR
  • 34
    09390-70001 C-RING, DRIVE SHAFT (LEFT)
    C-RING, DRIVE SHAFT (LEFT)
  • 35
    04221-07209 PIN, DRIVE SHAFT (RIGHT)
    PIN, DRIVE SHAFT (RIGHT)
  • 36
    09181-20251 WASHER, 1ST (RIGHT) (20X34X1.0)
    WASHER, 1ST (RIGHT) (20X34X1.0)
  • 37
    09181-22223 WASHER, 1ST (LEFT) (22X34X1.0)
    WASHER, 1ST (LEFT) (22X34X1.0)
  • 38
    09181-28195 WASHER, 2ND (28X38X1.0)
    WASHER, 2ND (28X38X1.0)
  • 39
    24751-33E10 RETAINER, DRIVE SHAFT
    RETAINER, DRIVE SHAFT
  • 40
    01500-06123 BOLT, DRIVE SHAFT
    BOLT, DRIVE SHAFT
  • 41
    27510-20A10 SPROCKET, ENGINE (NT:16)
    SPROCKET, ENGINE (NT:16)
  • 42
    27531-33E00 SPACER, ENGINE SPROCKET
    SPACER, ENGINE SPROCKET
  • 43
    27600-32C10-108 CHAIN ASSY. (DID525V9,108L)
    CHAIN ASSY. (DID525V9,108L)
  • 44
    09159-20004 NUT, ENGINE SPROCKET
    NUT, ENGINE SPROCKET
  • 45
    09160-25009 WASHER (25X41X3)
    WASHER (25X41X3)
