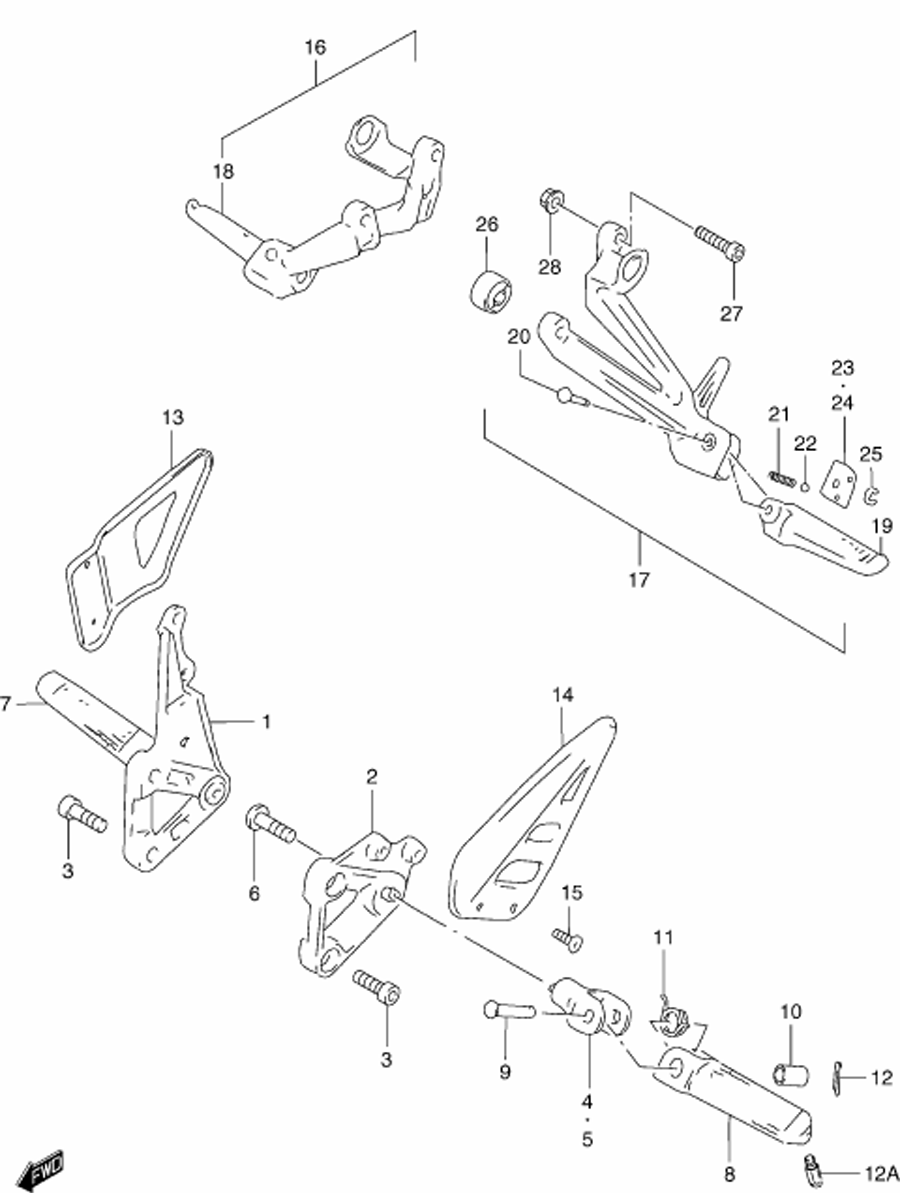

FOOTREST для Suzuki GSX-R600 Y - 2000 года выпуска
-
№АртикулНазвание
-
143511-33E10 BRACKET, FOOTREST (FRONT/RIGHT)BRACKET, FOOTREST (FRONT/RIGHT)
-
243521-33E00 BRACKET, FOOTREST (FRONT/LEFT)BRACKET, FOOTREST (FRONT/LEFT)
-
307130-08203 BOLT, BRACKETBOLT, BRACKET
-
4-243530-17E01 HOLDER, FOOTREST (RIGHT)HOLDER, FOOTREST (RIGHT)
-
543540-17E00 HOLDER, FOOTREST (LEFT)HOLDER, FOOTREST (LEFT)
-
609106-10064 BOLT, HOLDERBOLT, HOLDER
-
7-343531-33D01 BAR, FOOTREST (FRONT/RIGHT)BAR, FOOTREST (FRONT/RIGHT)
-
8-343591-02F01 BAR, FOOTREST (FRONT/LEFT)BAR, FOOTREST (FRONT/LEFT)
-
909200-08057 PINPIN
-
1009180-08149 SPACERSPACER
-
1109448-18022 SPRINGSPRING
-
1204111-25158 COTTER PINCOTTER PIN
-
12A43576-07D01 BOLT, BANK SENSORBOLT, BANK SENSOR
-
13-243571-33E01 GUARD, FOOTREST (RIGHT)GUARD, FOOTREST (RIGHT)
-
14-243576-33E01 GUARD, FOOTREST (LEFT)GUARD, FOOTREST (LEFT)
-
1509139-05033 BOLT, GUARD (LEFT)BOLT, GUARD (LEFT)
-
1643600-33E00 FOOTREST ASSY., PILLION (RIGHT)FOOTREST ASSY., PILLION (RIGHT)
-
1743700-33E00 FOOTREST ASSY., PILLION (LEFT)FOOTREST ASSY., PILLION (LEFT)
-
18-243611-33E10 ...BAR, PILLION (RIGHT)...BAR, PILLION (RIGHT)
-
19-243621-33E10 ...BAR, PILLION (LEFT)...BAR, PILLION (LEFT)
-
2087259-85510 ...PIN...PIN
-
2109440-05005 ...SPRING...SPRING
-
2206111-07004 ...BALL...BALL
-
23-343816-33E21 ...PLATE (RIGHT)...PLATE (RIGHT)
-
24-343826-33E21 ...PLATE (LEFT)...PLATE (LEFT)
-
2508332-11043 ...E-RING...E-RING
-
2609319-08028 ...BUSH, MUFFLER SUPPORT...BUSH, MUFFLER SUPPORT
-
2707130-08303 BOLT, BRACKETBOLT, BRACKET
-
2808319-31083 NUTNUT
