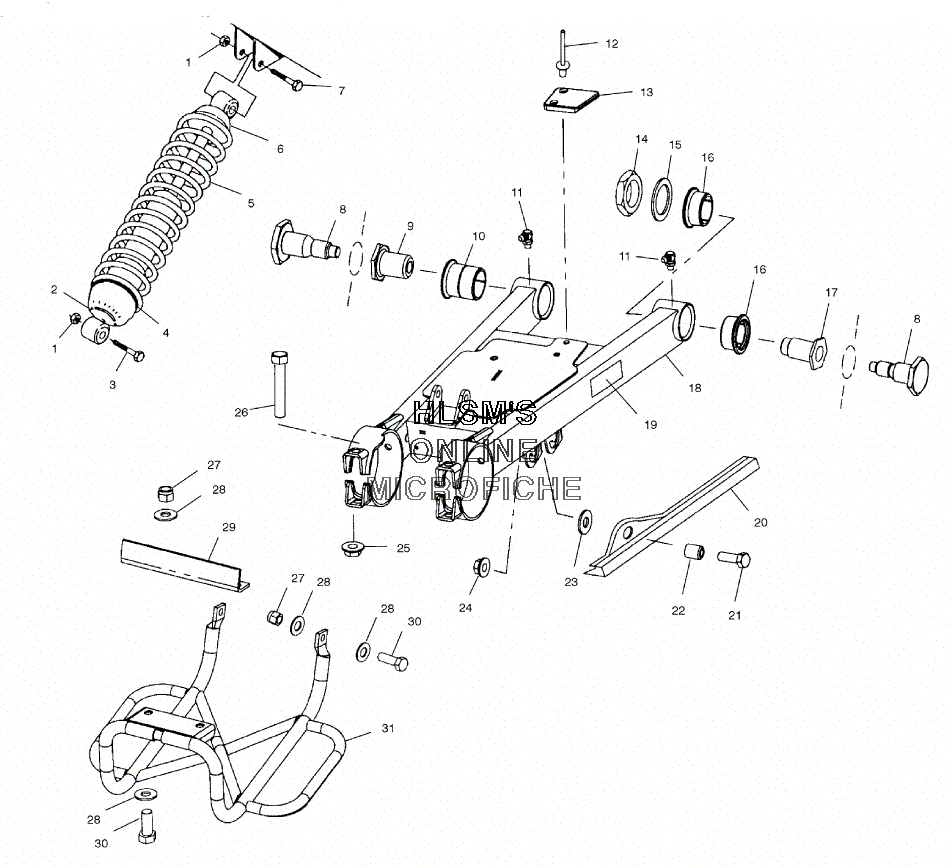

SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
27041962 SHOCK, MID AXLESHOCK, MID AXLE
-
37515438 BOLTBOLT
-
47556142 WASHERWASHER
-
57041987-067 SPRING, COMP (BLACK)SPRING, COMP (BLACK)
-
65241147 RETAINER, SHOCKRETAINER, SHOCK
-
77515415 SCREWSCREW
-
85131697 BOLT, SWINGARM PIVOTBOLT, SWINGARM PIVOT
-
95133166 BUSHING, SWING ARM PIVOT (LEFT)BUSHING, SWING ARM PIVOT (LEFT)
-
105434545 BUSHING, SWINGARM HYBRID (LEFT/BLACK)BUSHING, SWINGARM HYBRID (LEFT/BLACK)
-
117080510 FITTING, ZERK (90 DEGREE)FITTING, ZERK (90 DEGREE)
-
127661046 RIVET, POP (.376, .500)RIVET, POP (.376, .500)
-
135432727 GUIDE, CHAIN PADGUIDE, CHAIN PAD
-
147547082 NUT, HEX JAMNUT, HEX JAM
-
157556035 WASHER, FLATWASHER, FLAT
-
165434546 BUSHING, SWINGARM HYBRID (RIGHT/BLACK)BUSHING, SWINGARM HYBRID (RIGHT/BLACK)
-
175133167 BUSHING, SWING ARM PIVOT (RIGHT)BUSHING, SWING ARM PIVOT (RIGHT)
-
181541583 SWING, ARM ASSY., HYBRID (INCL. 10, 11, 16)SWING, ARM ASSY., HYBRID (INCL. 10, 11, 16)
-
197078572 DECAL, ''CHAIN FREEPLAY'' HYBRIDDECAL, ''CHAIN FREEPLAY'' HYBRID
-
205432854 GUARD, CHAIN AXLE (REAR)GUARD, CHAIN AXLE (REAR)
-
217515304 SCREW, FLANGEDSCREW, FLANGED
-
225332828 BUSHINGBUSHING
-
237558402 WASHER FLATWASHER FLAT
-
247542321 NUT FLANGENUT FLANGE
-
257542522 NUT, FLANGENUT, FLANGE
-
267512576 BOLTBOLT
-
277542324 NUT, NYLOKNUT, NYLOK
-
287558402 WASHER FLATWASHER FLAT
-
295222221-067 MOUNT, ROCK GUARDMOUNT, ROCK GUARD
-
307512325 BOLTBOLT
-
311013328-067 GUARD, SWING ARM (BLACK)GUARD, SWING ARM (BLACK)
