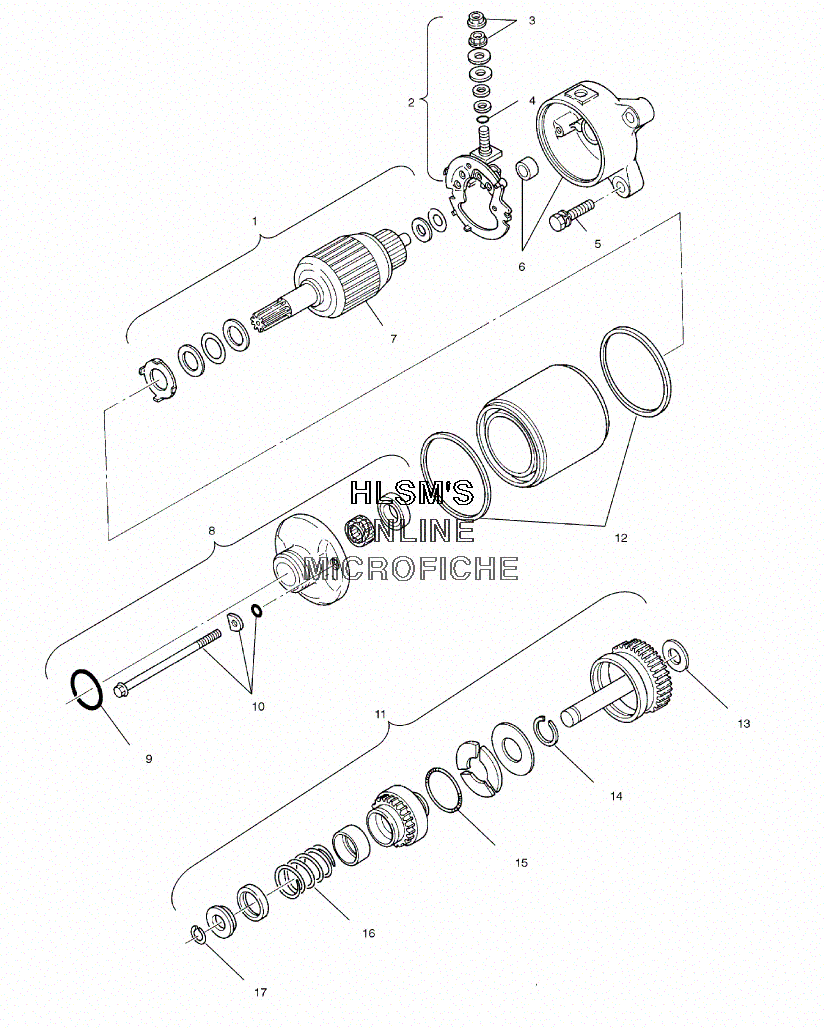

STARTING MOTOR для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1A
    3084981 MOTOR, STARTING (INCL. 1, 4, 6, 10, 12)
    MOTOR, STARTING (INCL. 1, 4, 6, 10, 12)
  • 1
    3084982 WASHER SET
    WASHER SET
  • 2
    3084406 BRUSH, COMP. 2-POLE
    BRUSH, COMP. 2-POLE
  • 3
    3083649 NUT, FLANGE
    NUT, FLANGE
  • 4
    3084408 O-RING
    O-RING
  • 5
    3082038 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 6
    3085034 BRACKET ASSY. (REAR)
    BRACKET ASSY. (REAR)
  • 7
    3085353 ARMATURE ASSY.
    ARMATURE ASSY.
  • 8
    3085033 BRACKET ASSY. (FRONT)
    BRACKET ASSY. (FRONT)
  • 9
    3240114 O-RING
    O-RING
  • 10
    3084983 BOLT ASSY (INCL. 4)
    BOLT ASSY (INCL. 4)
  • 11
    3087030 GEAR SHAFT ASSY. (INCL. 13, 17)
    GEAR SHAFT ASSY. (INCL. 13, 17)
  • 12
    3084405 RING, RUBBER
    RING, RUBBER
  • 13
    3083737 WASHER
    WASHER
  • 14
    3084412 CLIP
    CLIP
  • 15
    3084411 SPRING, WEIGHT
    SPRING, WEIGHT
  • 16
    3084410 SPRING, RETURN
    SPRING, RETURN
  • 17
    3084409 CLIP
    CLIP
