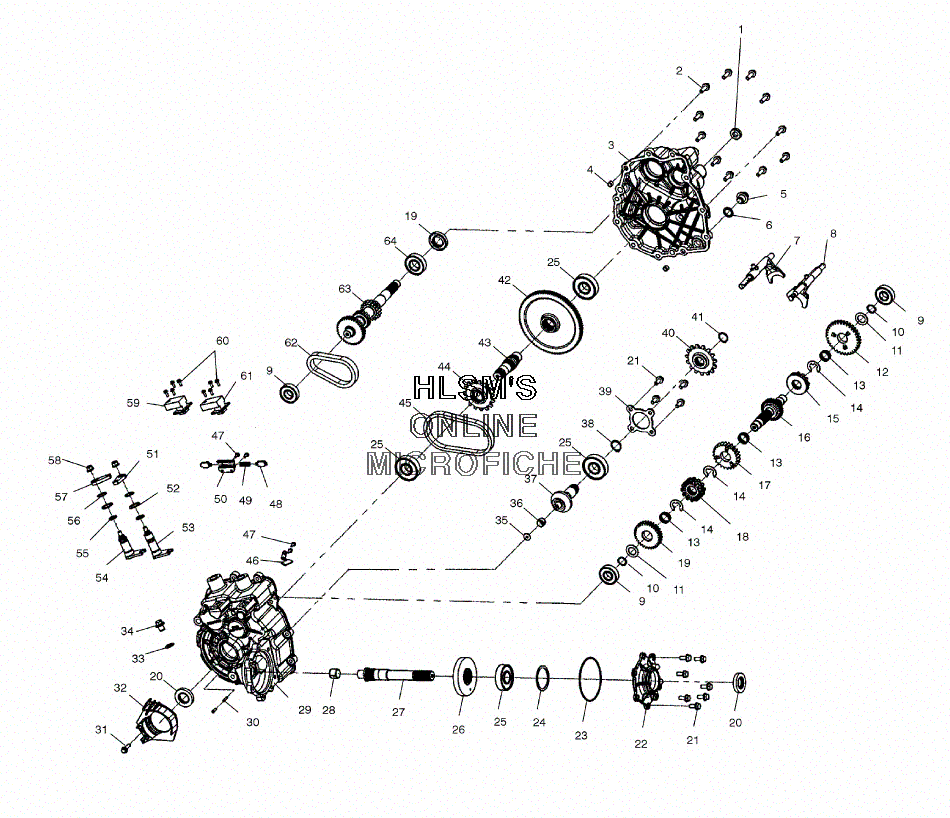

GEARCASE для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска
-
№АртикулНазвание
-
1A1341428 GEARCASE ASSY. (INCL. ALL)GEARCASE ASSY. (INCL. ALL)
-
13233527 BUSHING, PIVOTBUSHING, PIVOT
-
23233252 SCREWSCREW
-
33233632 GEARCASE (LEFT)GEARCASE (LEFT)
-
43233529 PIPE, KNOCKPIPE, KNOCK
-
53233448 PLUGPLUG
-
63233035 WASHERWASHER
-
73233706 SHIFT FORK, LOWSHIFT FORK, LOW
-
83233633 FORK, SHIFT HIGH/REVFORK, SHIFT HIGH/REV
-
93233018 BEARINGBEARING
-
103233177 RING, RETAININGRING, RETAINING
-
113233176 WASHERWASHER
-
123233731 GEAR (33 TEETH)GEAR (33 TEETH)
-
133233718 BEARING, NEEDLE SPLIT CAGEBEARING, NEEDLE SPLIT CAGE
-
143233720 RING, RET RING EXTERNALRING, RET RING EXTERNAL
-
153233732 DOG, ENGAGEMENT LOWDOG, ENGAGEMENT LOW
-
163233733 SHAFT, REVERSE (29 TEETH)SHAFT, REVERSE (29 TEETH)
-
173233719 SPROCKET (24 TEETH)SPROCKET (24 TEETH)
-
183233721 DOG, ENGAGEMENT HIGH/REVDOG, ENGAGEMENT HIGH/REV
-
193233722 GEAR (30 TEETH)GEAR (30 TEETH)
-
203233788 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
213233539 SCREWSCREW
-
223233556 COVER, SNORKELCOVER, SNORKEL
-
233233555 O-RINGO-RING
-
243233554 SHIMSHIM
-
253233020 BEARINGBEARING
-
263233898 GEAR (25 TEETH)GEAR (25 TEETH)
-
273233899 SHAFT, SNORKALSHAFT, SNORKAL
-
283233552 BUSHING, GARLOCKBUSHING, GARLOCK
-
293233895 GEARCASE (RIGHT)GEARCASE (RIGHT)
-
303233037 VENTVENT
-
313233026 SCREWSCREW
-
323233897 GUIDE, CHAINGUIDE, CHAIN
-
333233872 WASHER, NYLONWASHER, NYLON
-
343233711 PLUG, OIL FILLPLUG, OIL FILL
-
353233542 WASHER, THRUSTWASHER, THRUST
-
363233541 BUSHING, GARLOCKBUSHING, GARLOCK
-
373233540 SHAFT, PINION (13 TEETH)SHAFT, PINION (13 TEETH)
-
383233306 RING, RETAININGRING, RETAINING
-
393233263 COVER, CENTER DRIVE BEARINGCOVER, CENTER DRIVE BEARING
-
403233730 SPROCKET (15/22 TEETH)SPROCKET (15/22 TEETH)
-
413233537 RING, RETAININGRING, RETAINING
-
423233360 GEAR, O/P HCR (100 TEETH)GEAR, O/P HCR (100 TEETH)
-
433233544 SHAFT, OUTPUTSHAFT, OUTPUT
-
443233729 SPROCKET (15/26 TEETH)SPROCKET (15/26 TEETH)
-
453233546 CHAIN, ROLLERCHAIN, ROLLER
-
463233043 DEFLECTOR, OILDEFLECTOR, OIL
-
473233747 SCREW, TAPPING W/LOCK WASHERSCREW, TAPPING W/LOCK WASHER
-
483233308 PIN, INTERLOCKPIN, INTERLOCK
-
493233032 SPRINGSPRING
-
503233309 BRACKET, INTERLOCKBRACKET, INTERLOCK
-
513233153 BELLCRANKBELLCRANK
-
523233040 WASHERWASHER
-
533233737 SHAFT, SHIFT HIGH/REVERSESHAFT, SHIFT HIGH/REVERSE
-
543233549 SHAFT, SHIFTSHAFT, SHIFT
-
553233548 O-RINGO-RING
-
563233045 RING, RETAININGRING, RETAINING
-
573233547 BELLCRANKBELLCRANK
-
583233961 NUT, LOCK HEX FLANGE NYLON 5/16NUT, LOCK HEX FLANGE NYLON 5/16
-
593234001 SWITCH, GEAR INDICATION 2 PISTONSWITCH, GEAR INDICATION 2 PISTON
-
603233749 SCREWSCREW
-
613234002 SWITCH, GEAR INDICATION 3 PISTONSWITCH, GEAR INDICATION 3 PISTON
-
623233036 CHAIN, SILENT 34PCHAIN, SILENT 34P
-
633233704 SHAFT, INPUT HIGH/LOW/REVERSESHAFT, INPUT HIGH/LOW/REVERSE
-
643233019 BEARINGBEARING
