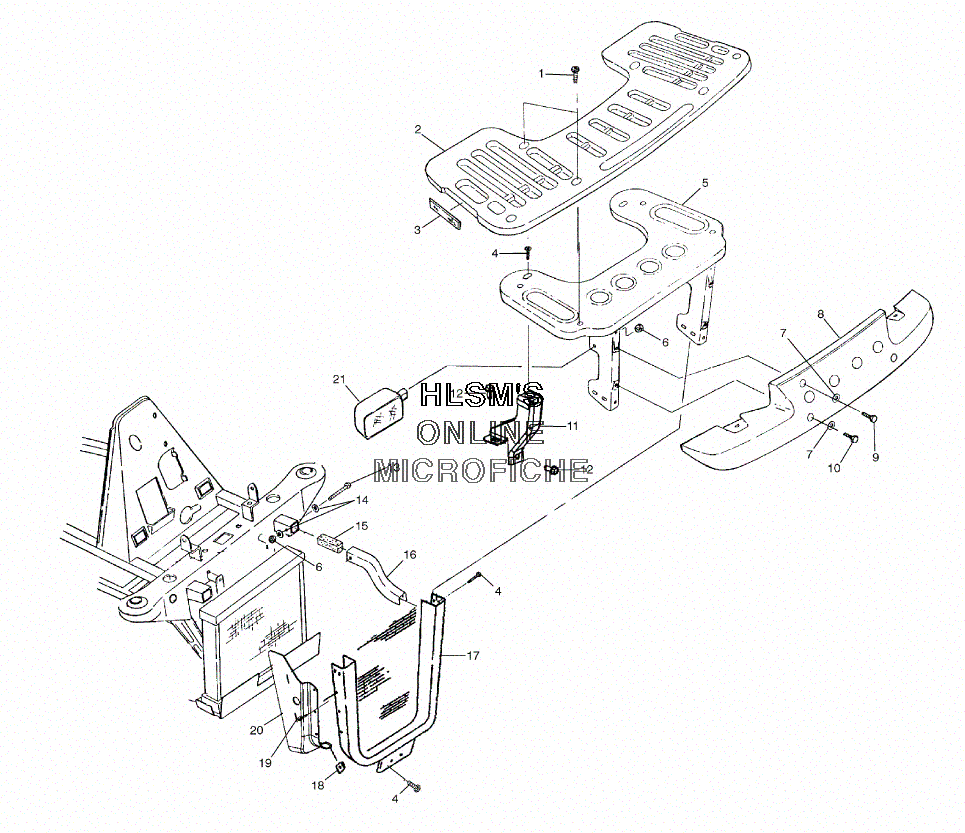

RACK AND BUMPER MOUNTING - FRONT для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска
-
№АртикулНазвание
-
17517685 SCREWSCREW
-
22632340-070 RACK ASSY. (BLACK/FRONT) (INCL. REF. 3 AND WARNING DECAL)RACK ASSY. (BLACK/FRONT) (INCL. REF. 3 AND WARNING DECAL)
-
37079926 DECAL, REFLECT. (6.75) (AMBER)DECAL, REFLECT. (6.75) (AMBER)
-
47515399 SCREWSCREW
-
51014023-067 WELD, RACK SUPPORT (FRONT/BLACK)WELD, RACK SUPPORT (FRONT/BLACK)
-
67542324 NUT, NYLOKNUT, NYLOK
-
77555954 WASHERWASHER
-
85432155-070 BUMPER (BLACK)BUMPER (BLACK)
-
97515391 BOLTBOLT
-
107515390 BOLTBOLT
-
111013744-067 WELD, SUPPORT RACK (FRONT/LEFT/BLACK)WELD, SUPPORT RACK (FRONT/LEFT/BLACK)
-
111013746-067 WELD, SUPPORT RACK (FRONT/RIGHT/BLACK)WELD, SUPPORT RACK (FRONT/RIGHT/BLACK)
-
127512232 BOLTBOLT
-
137512329 BOLTBOLT
-
147558402 WASHER FLATWASHER FLAT
-
155810467 PLUG, FRAMEPLUG, FRAME
-
165244729-067 EXTENSION, FRAME (LEFT/BLACK)EXTENSION, FRAME (LEFT/BLACK)
-
165244730-067 EXTENSION, FRAME (RIGHT/BLACK)EXTENSION, FRAME (RIGHT/BLACK)
-
171013772-067 WELD, BRUSH GUARD (BLACK)WELD, BRUSH GUARD (BLACK)
-
187670094 NUTNUT
-
197512097 SCREWSCREW
-
205433923 SHIELD, RADIATOR SIDE (LEFT)SHIELD, RADIATOR SIDE (LEFT)
-
205433924 SHEILD, RADIATOR SIDE (RIGHT)SHEILD, RADIATOR SIDE (RIGHT)
-
212431014 HEADLIGHT ASSY. (LEFT)HEADLIGHT ASSY. (LEFT)
-
212431015 HEADLIGHT ASSY. (RIGHT)HEADLIGHT ASSY. (RIGHT)
-
214030059 BULB, HEADLIGHT (27W. HOBBS)BULB, HEADLIGHT (27W. HOBBS)
