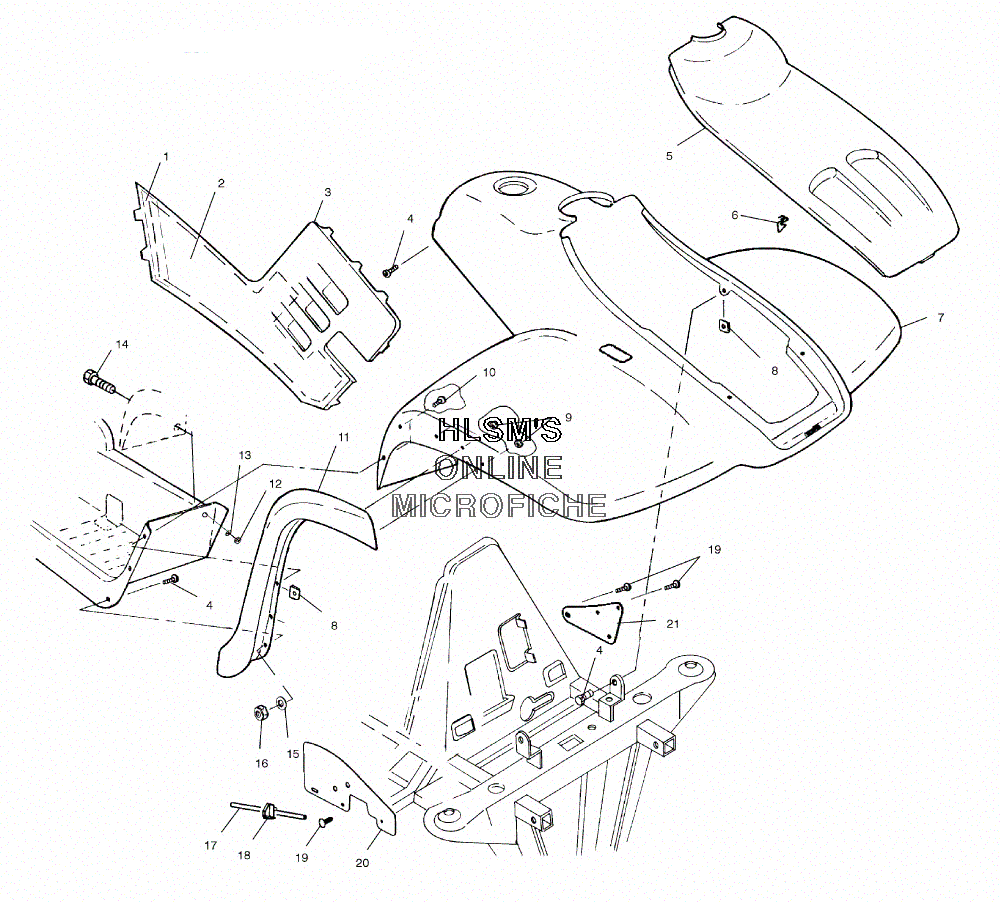

FENDER - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска`
-
№АртикулНазвание
-
15811491 FOIL, SIDEPANEL (RIGHT)FOIL, SIDEPANEL (RIGHT)
-
25812329 FOIL, SIDEPANEL (RIGHT)FOIL, SIDEPANEL (RIGHT)
-
32632663-400 PANEL/FOAM ASSY. (LEFT/CAMO GREEN METALLIC)PANEL/FOAM ASSY. (LEFT/CAMO GREEN METALLIC)
-
32620085-400 PANEL/FOIL ASSY. (RIGHT/CAMO GREEN METALLIC)PANEL/FOIL ASSY. (RIGHT/CAMO GREEN METALLIC)
-
35812138 FOAM, PANEL (LEFT)FOAM, PANEL (LEFT)
-
47512232 BOLTBOLT
-
55432088-400 COVER (FRONT/CAMO GREEN METALLIC)COVER (FRONT/CAMO GREEN METALLIC)
-
67670085 CLIP, SPRINGCLIP, SPRING
-
72632146-400 CAB, ASSY. (FRONT/CAMO GREEN METALLIC)CAB, ASSY. (FRONT/CAMO GREEN METALLIC)
-
87670057 NUT, SPEEDNUT, SPEED
-
97670135 NUT, SPEEDNUT, SPEED
-
107517312 SCREWSCREW
-
115431798-070 GUARD, MUD (FRONT/LEFT/BLACK)GUARD, MUD (FRONT/LEFT/BLACK)
-
115431799-070 GUARD, MUD (FRONT/RIGHT/BLACK)GUARD, MUD (FRONT/RIGHT/BLACK)
-
127541925 NUT, NYLOKNUT, NYLOK
-
137555792 WASHERWASHER
-
147512085 SCREWSCREW
-
157555931 WASHERWASHER
-
167542122 NUT, NYLOKNUT, NYLOK
-
175412191 BREATHER, LINE (85 CM)BREATHER, LINE (85 CM)
-
187670109 CLIP, ROUTINGCLIP, ROUTING
-
197621509 RIVET, PLASTI LOC.RIVET, PLASTI LOC.
-
205811917 SHIELD, DEFLECTORSHIELD, DEFLECTOR
-
215243829 STRAP, FUEL PUMP MOUNTING (BLACK)STRAP, FUEL PUMP MOUNTING (BLACK)
