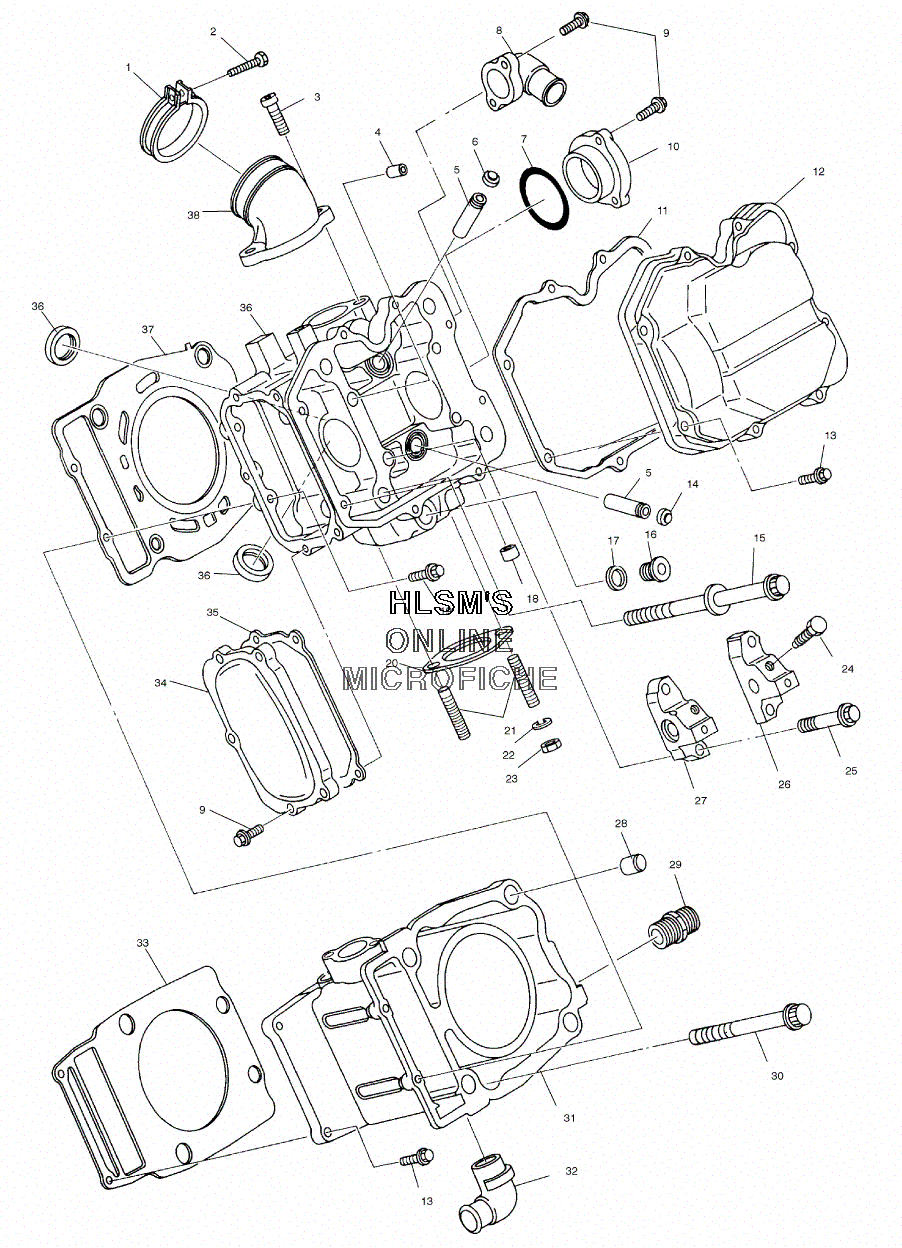

CYLINDER для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска
-
№АртикулНазвание
-
13083166 ADAPTER BAND ASSY. (INCL. 2)ADAPTER BAND ASSY. (INCL. 2)
-
23081497 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
33081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
43084857 PIN, STRAIGHTPIN, STRAIGHT
-
53084994 GUIDE, VALVEGUIDE, VALVE
-
63084858 SEAL, INTAKE VALVESEAL, INTAKE VALVE
-
73084867 O-RINGO-RING
-
83085072 ADAPTERADAPTER
-
93084877 BOLT, FLANGEBOLT, FLANGE
-
103084866 ADAPTER, CAMSHAFTADAPTER, CAMSHAFT
-
113085074 GASKET (REAR COVER)GASKET (REAR COVER)
-
123085073 COVER, ROCKERCOVER, ROCKER
-
133084874 BOLT, FLANGEBOLT, FLANGE
-
143084859 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
153084875 BOLTBOLT
-
163084860 PLUGPLUG
-
173084861 GASKETGASKET
-
183084862 PLUG, BLINDPLUG, BLIND
-
193084215 BOLT, FLANGEBOLT, FLANGE
-
203085075 GASKET, EXHAUSTGASKET, EXHAUST
-
213085326 STUDSTUD
-
223080530 WASHER, SPRINGWASHER, SPRING
-
233087199 NUTNUT
-
243085854 BOLT, ROCKER SHAFTBOLT, ROCKER SHAFT
-
253084876 BOLTBOLT
-
263084864 SUPPORT, VALVE ROCKER (PTO)SUPPORT, VALVE ROCKER (PTO)
-
273084863 SUPPORT, VALVE ROCKER (MAG)SUPPORT, VALVE ROCKER (MAG)
-
283084838 PIPE, KNOCKPIPE, KNOCK
-
293084849 UNION, OIL PUMPUNION, OIL PUMP
-
303084873 BOLT, FLANGEBOLT, FLANGE
-
313086811 CYLINDER ASSY. (INCL. 32)CYLINDER ASSY. (INCL. 32)
-
323084130 PIPE-2, ELBOWPIPE-2, ELBOW
-
333085370 GASKET, CYLINDERGASKET, CYLINDER
-
343084868 COVER, CAMSHAFTCOVER, CAMSHAFT
-
353086200 GASKET, COVER CAMGASKET, COVER CAM
-
363085527 HEAD, CYLINDER (INCL. 4, 6, 14, 16, 18, 21)HEAD, CYLINDER (INCL. 4, 6, 14, 16, 18, 21)
-
373085371 GASKET, HEADGASKET, HEAD
-
383084879 ADAPTERADAPTER
