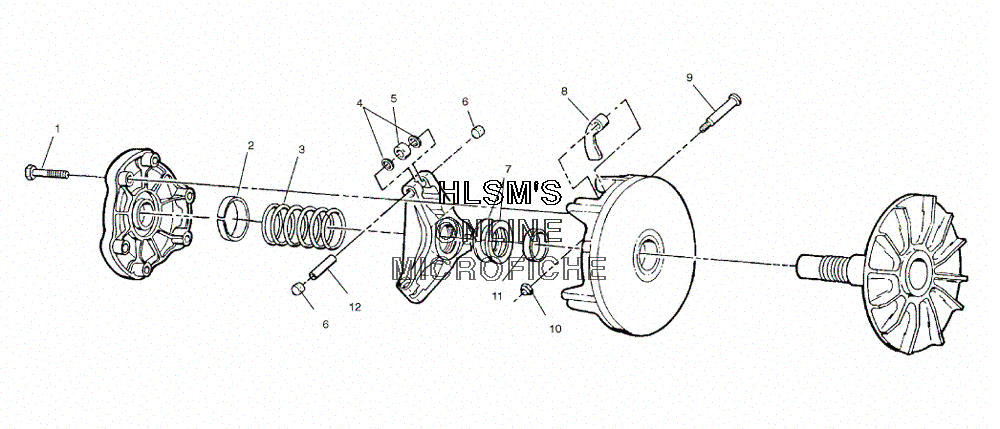

CLUTCH - DRIVE для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7518062 SCREW
    SCREW
  • 2
    3576510 BEARING, COVER
    BEARING, COVER
  • 3
    7041157 SPRING, CLUTCH
    SPRING, CLUTCH
  • 4
    5430945 WASHER
    WASHER
  • 5
    1321457 ROLLER/BUSHING ASSY.
    ROLLER/BUSHING ASSY.
  • 6
    5431936 BUTTON, CLUTCH
    BUTTON, CLUTCH
  • 7
    5210752 SPACER (.020) (OPT)
    SPACER (.020) (OPT)
  • 7
    5242981 SPACER (.025) (OPT)
    SPACER (.025) (OPT)
  • 7
    5210753 SPACER (.032) (OPT)
    SPACER (.032) (OPT)
  • 7
    5210754 SPACER (.050) (OPT)
    SPACER (.050) (OPT)
  • 8
    5630513 WEIGHT, SHIFT
    WEIGHT, SHIFT
  • 9
    7512266 BOLT, SPECIAL
    BOLT, SPECIAL
  • 10
    7541906 NUT FLEXLOC
    NUT FLEXLOC
  • 11
    3576504 BUSHING, DRIVEN
    BUSHING, DRIVEN
  • 12
    5020422 PIN, ROLLER
    PIN, ROLLER
  • 12
    1322302 DRIVE CLUTCH ASSY., WIDE (INCL. 1, 2, 6, 10, 9)
    DRIVE CLUTCH ASSY., WIDE (INCL. 1, 2, 6, 10, 9)
