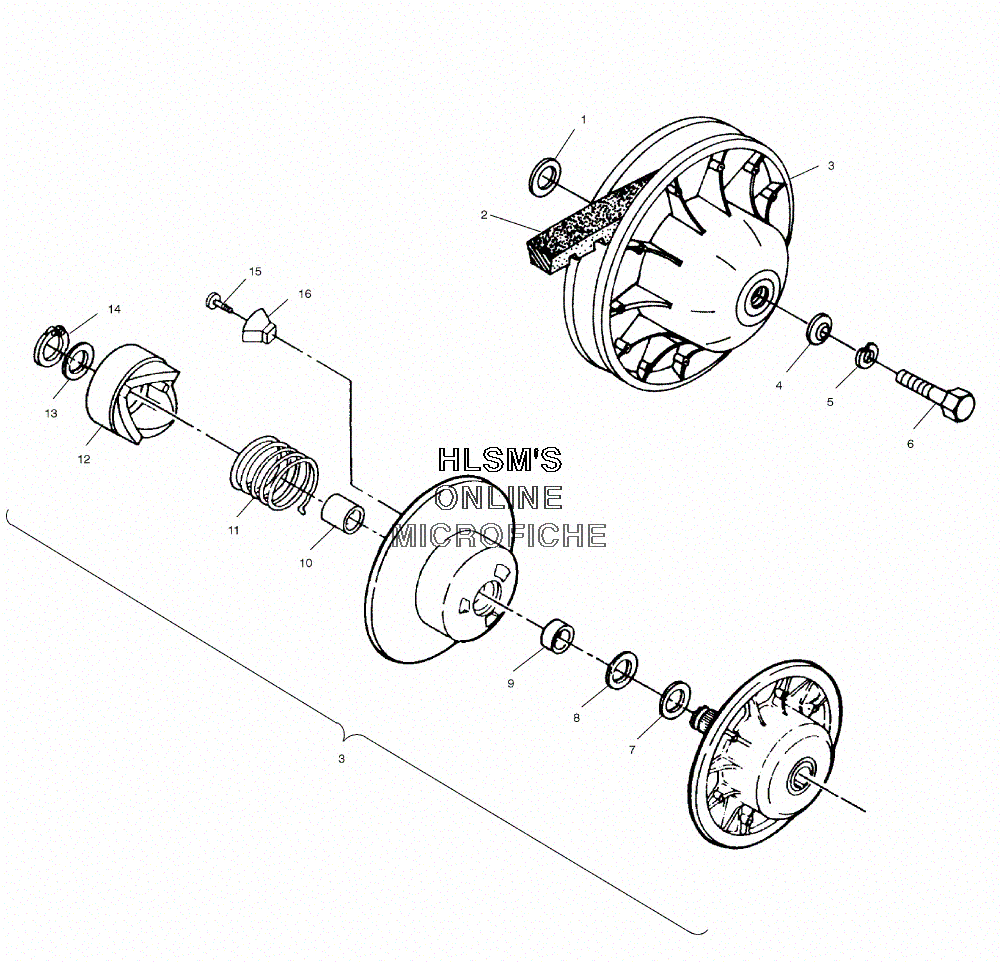

CLUTCH - DRIVEN для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска
-
№АртикулНазвание
-
17556120 BUSHINGBUSHING
-
23211077 BELT, DRIVEBELT, DRIVE
-
31322180 CLUTCH, DRIVEN HEAVEY RETAINER (INCL. 7, 16)CLUTCH, DRIVEN HEAVEY RETAINER (INCL. 7, 16)
-
45220646 WASHER, DOMEDWASHER, DOMED
-
57552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
67515382 BOLTBOLT
-
77555898 WASHER (.020) (OPT)WASHER (.020) (OPT)
-
77556076 WASHER (.025) (OPT)WASHER (.025) (OPT)
-
87556804 WASHER (.030) (OPT)WASHER (.030) (OPT)
-
93576504 BUSHING, DRIVENBUSHING, DRIVEN
-
103576511 BUSHINGBUSHING
-
117041198 SPRING, CLUTCH (RED)SPRING, CLUTCH (RED)
-
125131446 RAMP, STA. MACH HEAVEY RETAINERRAMP, STA. MACH HEAVEY RETAINER
-
135210752 SPACER (.020)SPACER (.020)
-
147710448 RING, RETAINERRING, RETAINER
-
157511854 BOLTBOLT
-
165430766 BUTTON, RAMPBUTTON, RAMP
