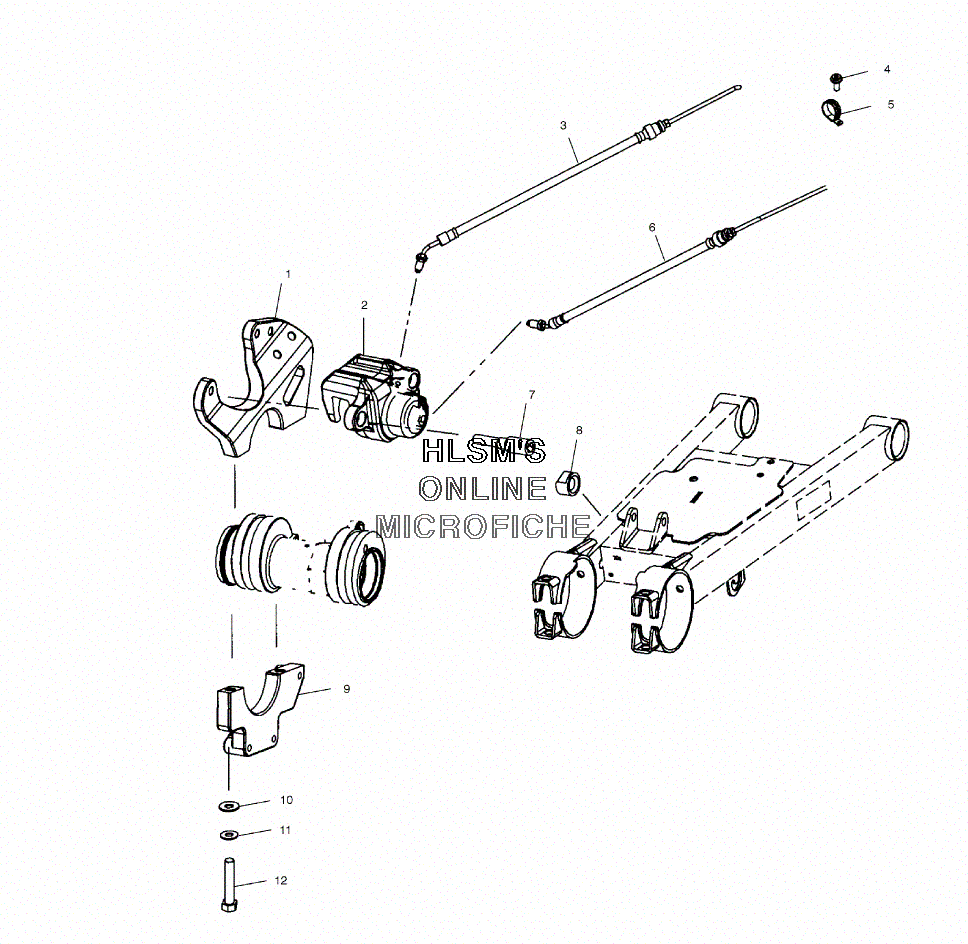

BRAKE - REAR CALIPER MOUNTING для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска
-
№АртикулНазвание
-
15132220 MOUNT, CALIPER AXLE (UPPER)MOUNT, CALIPER AXLE (UPPER)
-
21910408 CALIPER ASSY., BRAKECALIPER ASSY., BRAKE
-
31910480 LINE, BRAKE JB TO RRLINE, BRAKE JB TO RR
-
47512084 SCREWSCREW
-
57080573 CLAMP, RUBBER COATEDCLAMP, RUBBER COATED
-
61910481 LINE, BRAKE M/C TO RR (RIGHT)LINE, BRAKE M/C TO RR (RIGHT)
-
77517758 BOLT, SHLDER BRAKEBOLT, SHLDER BRAKE
-
85131759 BUSHING, CALIPER MOUNTBUSHING, CALIPER MOUNT
-
95131786 MOUNT, CALIPER AXLE (LOWER)MOUNT, CALIPER AXLE (LOWER)
-
107558402 WASHER, FLATWASHER, FLAT
-
117552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
127512312 BOLTBOLT
