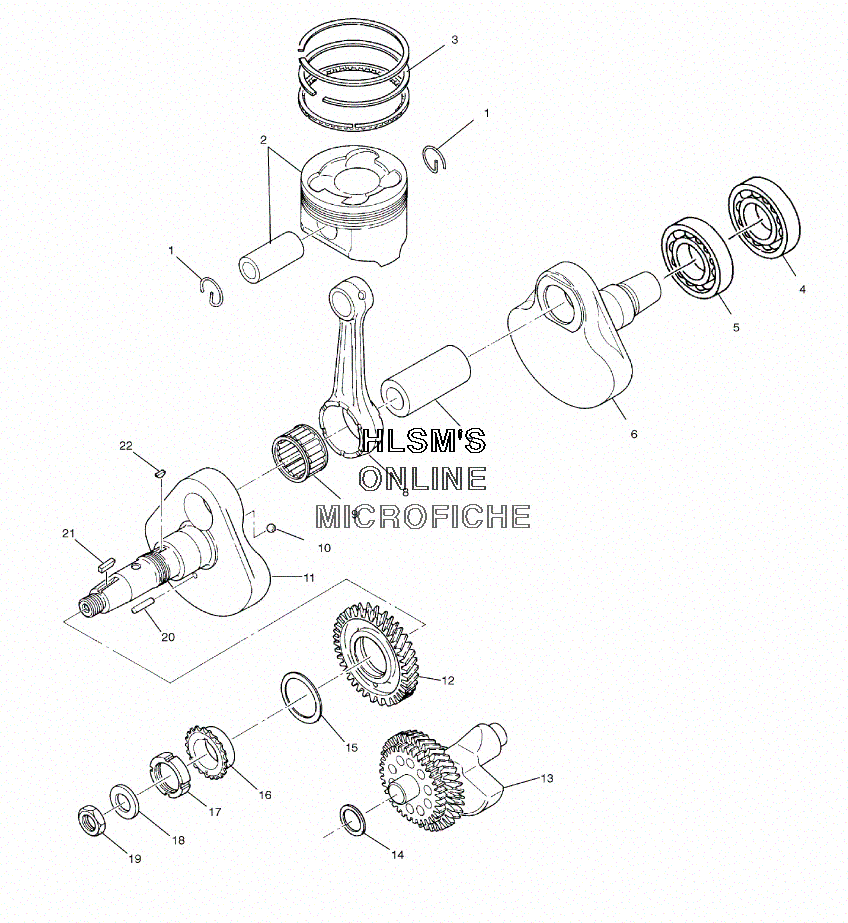

CRANKSHAFT W/ PISTON для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска
-
№АртикулНазвание
-
13085534 CLIPCLIP
-
23087221 PISTON SET (STD) (INCL. 1)PISTON SET (STD) (INCL. 1)
-
23087222 PISTON SET (0.25 O/S) (OPT) (INCL. 1)PISTON SET (0.25 O/S) (OPT) (INCL. 1)
-
23087223 PISTON SET (0.50 O/S) (OPT) (INCL. 1)PISTON SET (0.50 O/S) (OPT) (INCL. 1)
-
33087224 PISTON RING SET (STD)PISTON RING SET (STD)
-
33087225 PISTON RING SET (0.25 O/S) (OPT)PISTON RING SET (0.25 O/S) (OPT)
-
33087226 PISTON RING SET (0.50 O/S) (OPT)PISTON RING SET (0.50 O/S) (OPT)
-
43080676 BEARING, BALLBEARING, BALL
-
53085815 BEARING, BALLBEARING, BALL
-
63085812 CRANKSHAFT, #2CRANKSHAFT, #2
-
73085341 PIN, CRANKPIN, CRANK
-
83085376 ROD, CONNECTINGROD, CONNECTING
-
93085400 BEARING, END (LARGE)BEARING, END (LARGE)
-
103085024 BALL, STEELBALL, STEEL
-
113087227 CRANKSHAFT ASSY. (INCL. 6, 12, 20)CRANKSHAFT ASSY. (INCL. 6, 12, 20)
-
113085373 CRANKSHAFT#1 (MAG)CRANKSHAFT#1 (MAG)
-
123085852 GEAR, BALANCER #1GEAR, BALANCER #1
-
133085404 SHAFT, BALANCERSHAFT, BALANCER
-
143084895 SPACER (0.8) (OPT)SPACER (0.8) (OPT)
-
143084896 SPACER (1.0) (OPT)SPACER (1.0) (OPT)
-
143084897 SPACER (1.2) (OPT)SPACER (1.2) (OPT)
-
153240088 SPACER (0.6) (OPT)SPACER (0.6) (OPT)
-
153084892 SPACER (0.8) (OPT)SPACER (0.8) (OPT)
-
153084893 SPACER (1.0) (OPT)SPACER (1.0) (OPT)
-
153084894 SPACER (1.2) (OPT)SPACER (1.2) (OPT)
-
163084882 SPROCKET 1SPROCKET 1
-
173085528 NUT, SLITNUT, SLIT
-
183083904 WASHERWASHER
-
193083905 LOCKNUTLOCKNUT
-
203085346 PIN, DOWELPIN, DOWEL
-
213081447 KEYKEY
-
223080130 WOODRUFF, KEYWOODRUFF, KEY
