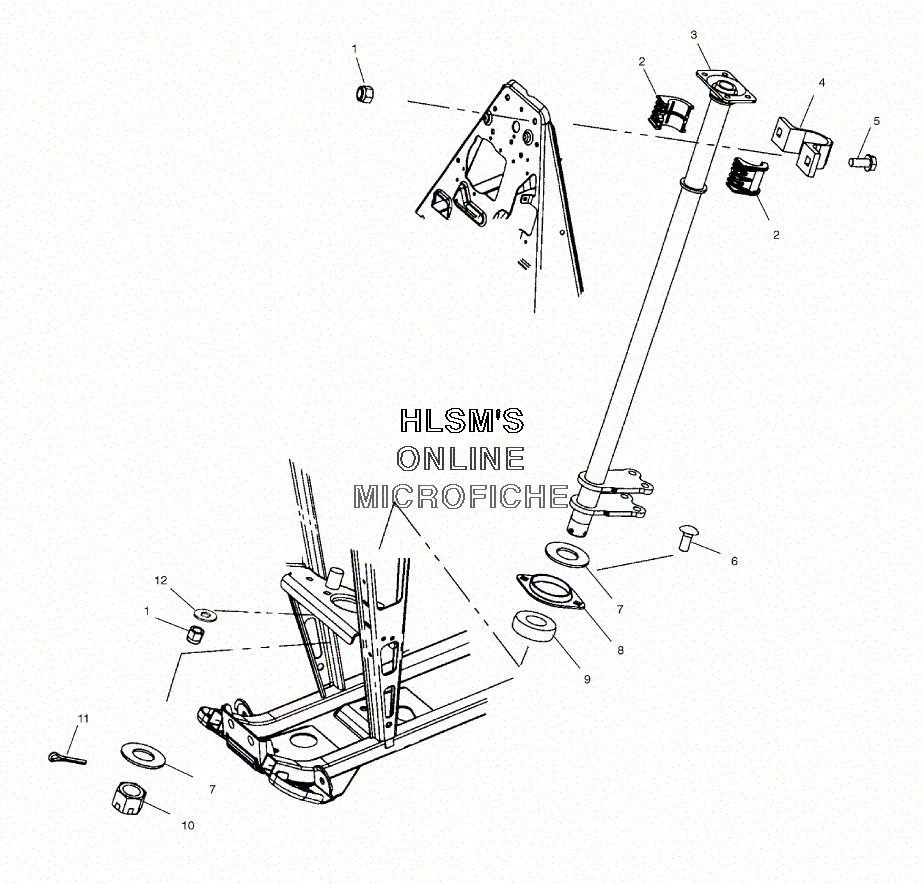

STEERING POST для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
25433866 BUSHING, STEERING 1 IN (UPPER)BUSHING, STEERING 1 IN (UPPER)
-
31013920-067 WELD, STEERING POST (BLACK)WELD, STEERING POST (BLACK)
-
45246732 BRACKET, STEERING BUSHING (UPPER)BRACKET, STEERING BUSHING (UPPER)
-
57515321 BOLTBOLT
-
67512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
77556162 BUSHINGBUSHING
-
85222393 FLANGETTE (2-BOLT)FLANGETTE (2-BOLT)
-
93514352 BEARINGBEARING
-
107547158 NUT, SLOTTED HEXNUT, SLOTTED HEX
-
117661633 PIN, COTTERPIN, COTTER
-
127558402 WASHER FLATWASHER FLAT
