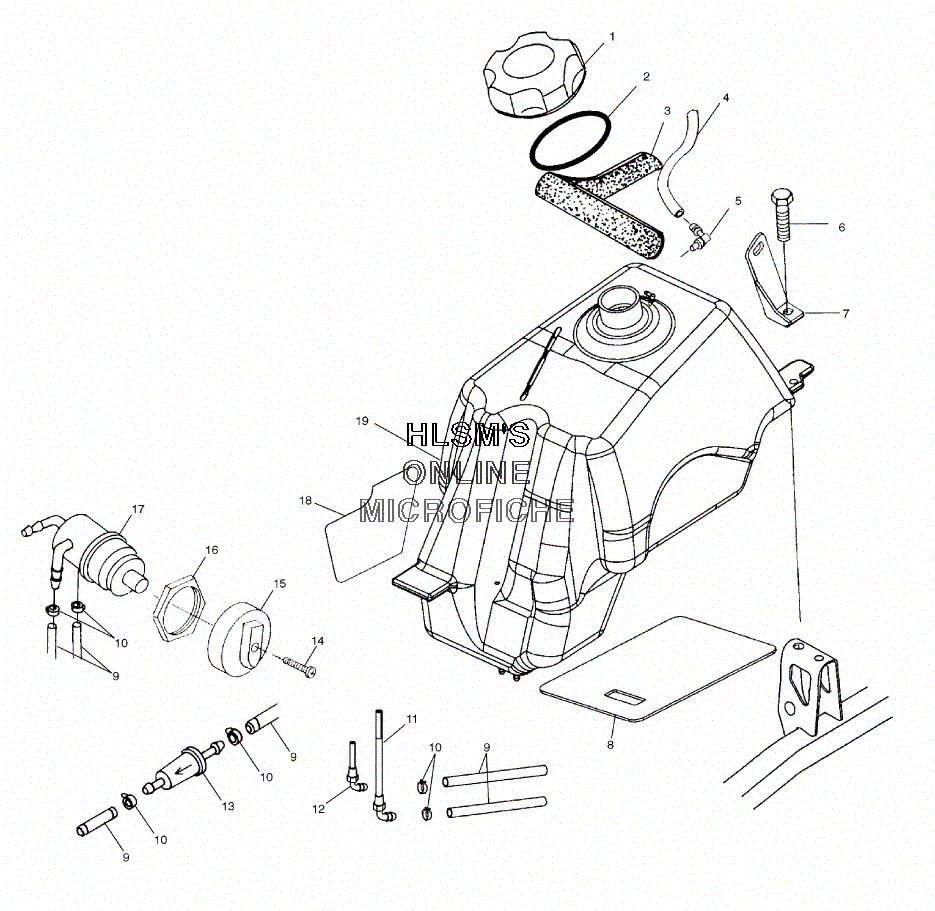

FUEL TANK для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    5433687 CAP, GAS TANK
    CAP, GAS TANK
  • 2
    5812123 GASKET, GAS CAP
    GASKET, GAS CAP
  • 3
    5811310 SEAL, FOAM (21 IN)
    SEAL, FOAM (21 IN)
  • 4
    8360009-600 FUEL LINE (1/8 ID, 600 CM.) (OPT)
    FUEL LINE (1/8 ID, 600 CM.) (OPT)
  • 5
    5431053 VENT, TANK
    VENT, TANK
  • 6
    7517685 SCREW
    SCREW
  • 7
    5222154 BRACKET, FUEL MOUNT (LEFT/REAR)
    BRACKET, FUEL MOUNT (LEFT/REAR)
  • 7
    5222155 BRACKET, FUEL MOUNT (RIGHT/REAR)
    BRACKET, FUEL MOUNT (RIGHT/REAR)
  • 8
    5812005 FOIL, FUELTANK
    FOIL, FUELTANK
  • 9
    8450040-600 FUEL LINE (1/4 ID, 600 CM.) (OPT)
    FUEL LINE (1/4 ID, 600 CM.) (OPT)
  • 10
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    7052147 ELBOW, MAIN
    ELBOW, MAIN
  • 12
    7052148 FITTING, FUEL OUT (90DEG)
    FITTING, FUEL OUT (90DEG)
  • 13
    2530009 FILTER, IN-LINE (SMALL)
    FILTER, IN-LINE (SMALL)
  • 14
    7517505 SCREW
    SCREW
  • 15
    5432559 KNOB, FUEL VALVE
    KNOB, FUEL VALVE
  • 16
    5432733 NUT, FUEL VALVE
    NUT, FUEL VALVE
  • 17
    7052161 VALVE, 3-WAY
    VALVE, 3-WAY
  • 18
    5812004 FOIL, FUELTANK
    FOIL, FUELTANK
  • 19
    2520166 FUEL, TANK ASSY. (INCL. 11, 12)
    FUEL, TANK ASSY. (INCL. 11, 12)
