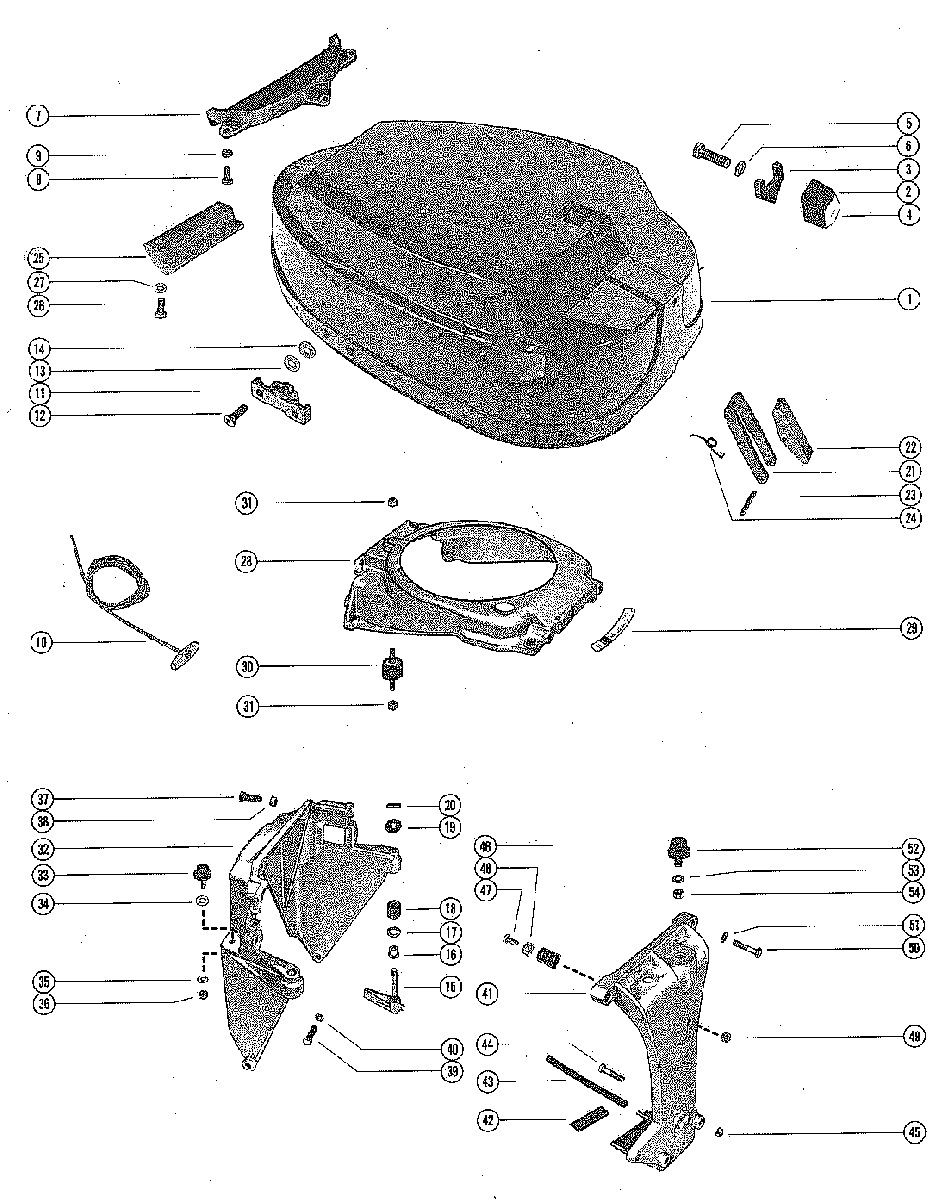

TOP COWL AND SUPPORT BRACKETS для Mercury - 650 (4 CYL.) 2309311 THRU 2803561

  • №
    Артикул
    Название
  • 1
    2114-3806 COWL, TOP
    COWL, TOP
  • 1
    2114-3806 COWL, TOP
    COWL, TOP
  • 2
    47555A1 RETAINER ASSEMBLY, TOP COWL
    SERIAL 00000000-02446774
    RETAINER ASSEMBLY, TOP COWL
    SERIAL 00000000-02446774
  • 2
    52733A9 RETAINER ASSEMBLY, TOP COWL
    SERIAL 02446775-09999999
    RETAINER ASSEMBLY, TOP COWL
    SERIAL 02446775-09999999
  • 3
    35496 PAD, BUMPER - TOP COWL RETAINER
    PAD, BUMPER - TOP COWL RETAINER
  • 4
    37-61018A1 EMBLEM, TOP COWL RETAINER
    EMBLEM, TOP COWL RETAINER
  • 5
    10-74824 SCREW, RETAINER TO TOP COWL (1 1/4")
    SCREW, RETAINER TO TOP COWL (1 1/4")
  • 6
    13-37371 LOCKWASHER, RETAINER FASTENING SCREW
    LOCKWASHER, RETAINER FASTENING SCREW
  • 7
    76370 SHIELD, TOP COWL - REAR
    SHIELD, TOP COWL - REAR
  • 7
    76370 SHIELD, TOP COWL - REAR
    SHIELD, TOP COWL - REAR
  • 8
    10-37370 SCREW, SHIELD TO TOP COWL (5/8")
    SCREW, SHIELD TO TOP COWL (5/8")
  • 9
    13-37371 LOCKWASHER, SHIELD SCREW
    LOCKWASHER, SHIELD SCREW
  • 10
    47341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY)
    ROPE, STARTER (FOR MANUAL STARTING ONLY)
  • 11
    46144 BRACKET, COWL LATCH - TOP COWL FASTENING
    BRACKET, COWL LATCH - TOP COWL FASTENING
  • 12
    10-21091 SCREW, COWL LATCH BRACKET TO TOP COWL (1 1/8")
    SCREW, COWL LATCH BRACKET TO TOP COWL (1 1/8")
  • 13
    12-29245 WASHER, COWL LATCH BRACKET SCREW (1/16/" THICK)
    WASHER, COWL LATCH BRACKET SCREW (1/16/" THICK)
  • 14
    12-37998 WASHER, COWL LATCH BRACKET SCREW (1/32" THICK)
    WASHER, COWL LATCH BRACKET SCREW (1/32" THICK)
  • 15
    37412 LEVER, CLAMPING - TOP COWL MOUNTING
    LEVER, CLAMPING - TOP COWL MOUNTING
  • 16
    23-26819 BUSHING, NYLON - CLAMPING LEVER
    BUSHING, NYLON - CLAMPING LEVER
  • 17
    12-38006 WASHER, CLAMPING LEVER
    WASHER, CLAMPING LEVER
  • 18
    23-31293 BUSHING, RUBBER - CLAMPING LEVER
    BUSHING, RUBBER - CLAMPING LEVER
  • 19
    11-30428 FASTENER, CLAMPING LEVER
    FASTENER, CLAMPING LEVER
  • 20
    17-29077 PIN, ROLL - CLAMPING LEVER
    PIN, ROLL - CLAMPING LEVER
  • 21
    52739 HINGE, COWL LATCH - TOP COWL
    HINGE, COWL LATCH - TOP COWL
  • 22
    94918F1 LEVER, COWL LATCH HINGE
    LEVER, COWL LATCH HINGE
  • 23
    17-58998 PIN, COWL LATCH LEVER TO HINGE
    PIN, COWL LATCH LEVER TO HINGE
  • 24
    52739 SPRING, COWL LATCH HINGE
    SPRING, COWL LATCH HINGE
  • 25
    94918F1 HOOK, TOP COWL LATCH - REAR
    HOOK, TOP COWL LATCH - REAR
  • 26
    10-22956 SCREW, REAR HOOK TO TOP COWL (7/8")
    SCREW, REAR HOOK TO TOP COWL (7/8")
  • 27
    13-26992 LOCKWASHER, REAR HOOK MOUNTING SCREW
    LOCKWASHER, REAR HOOK MOUNTING SCREW
  • 28
    79897A4 FRAME, TOP COWL SUPPORT
    FRAME, TOP COWL SUPPORT
  • 29
    37-45201 DECAL, TIMING - TOP COWL FRAME
    DECAL, TIMING - TOP COWL FRAME
  • 30
    90435 MOUNT, RUBBER - TOP COWL FRAME
    MOUNT, RUBBER - TOP COWL FRAME
  • 31
    11-8267089 NUT, RUBBER MOUNT TO TOP COWL FRAME
    NUT, RUBBER MOUNT TO TOP COWL FRAME
  • 31
    11-826709109 NUT, RUBBER MOUNT TO TOP COWL FRAME
    NUT, RUBBER MOUNT TO TOP COWL FRAME
  • 32
    46170 BRACKET, TOP COWL SUPPORT - REAR
    BRACKET, TOP COWL SUPPORT - REAR
  • 32
    52740 BRACKET, TOP COWL SUPPORT - REAR
    BRACKET, TOP COWL SUPPORT - REAR
  • 33
    31014 MOUNT, RUBBER - REAR SUPPORT BRACKET
    MOUNT, RUBBER - REAR SUPPORT BRACKET
  • 34
    12-69057 WASHER, RUBBER MOUNT STUD
    WASHER, RUBBER MOUNT STUD
  • 35
    13-26992 LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
    LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 36
    11-20088 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
    NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 37
    10-26065 SCREW, REAR SUPPORT BRACKET TO TOP COWL FRAME (1")
    SCREW, REAR SUPPORT BRACKET TO TOP COWL FRAME (1")
  • 38
    11-29250 NUT, REAR SUPPORT BRACKET SCREW
    NUT, REAR SUPPORT BRACKET SCREW
  • 39
    10-74824 SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1 1/4")
    SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1 1/4")
  • 40
    13-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREW
    LOCKWASHER, REAR SUPPORT BRACKET SCREW
  • 41
    48105A2 BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT
    BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT
  • 41
    46240A5 BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT
    BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT
  • 41
    66521A2 BRACKET, TOP COWL SUPPORT - FRONT
    BRACKET, TOP COWL SUPPORT - FRONT
  • 42
    37903 FLANGE, RUBBER - FRONT TOP COWL SUPPORT BRACKET
    FLANGE, RUBBER - FRONT TOP COWL SUPPORT BRACKET
  • 43
    32-8M0108355 HOSE, FRONT SUPPORT BRACKET TO BOTTOM COWL (7 1/2")
    HOSE, FRONT SUPPORT BRACKET TO BOTTOM COWL (7 1/2")
  • 44
    10-78841 SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1 1/2")
    SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1 1/2")
  • 45
    11-29250 NUT, FRONT SUPPORT BRACKET SCREW
    NUT, FRONT SUPPORT BRACKET SCREW
  • 46
    54-22875 CLIP, WIRING HARNESS LEAD TO FRONT SUPPORT BRACKET
    CLIP, WIRING HARNESS LEAD TO FRONT SUPPORT BRACKET
  • 46
    54-45806 CLIP, WIRING HARNESS LEAD TO FRONT SUPPORT BRACKET
    CLIP, WIRING HARNESS LEAD TO FRONT SUPPORT BRACKET
  • 47
    10-29072 SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")
    SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")
  • 48
    8M0084613 "D" WASHER, WIRING HARNESS LEAD CLIP ATTACHING SCREW
    "D" WASHER, WIRING HARNESS LEAD CLIP ATTACHING SCREW
  • 49
    11-24656 NUT, WIRING HARNESS LEAD CLIP ATTACHING SCREW
    NUT, WIRING HARNESS LEAD CLIP ATTACHING SCREW
  • 50
    10-73657 SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2")
    SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2")
  • 51
    13-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREW
    LOCKWASHER, FRONT SUPPORT BRACKET SCREW
  • 52
    37640 MOUNT, RUBBER - FRONT SUPPORT BRACKET
    MOUNT, RUBBER - FRONT SUPPORT BRACKET
  • 53
    13-26993 LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
    LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
  • 54
    11-22053 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
    NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
