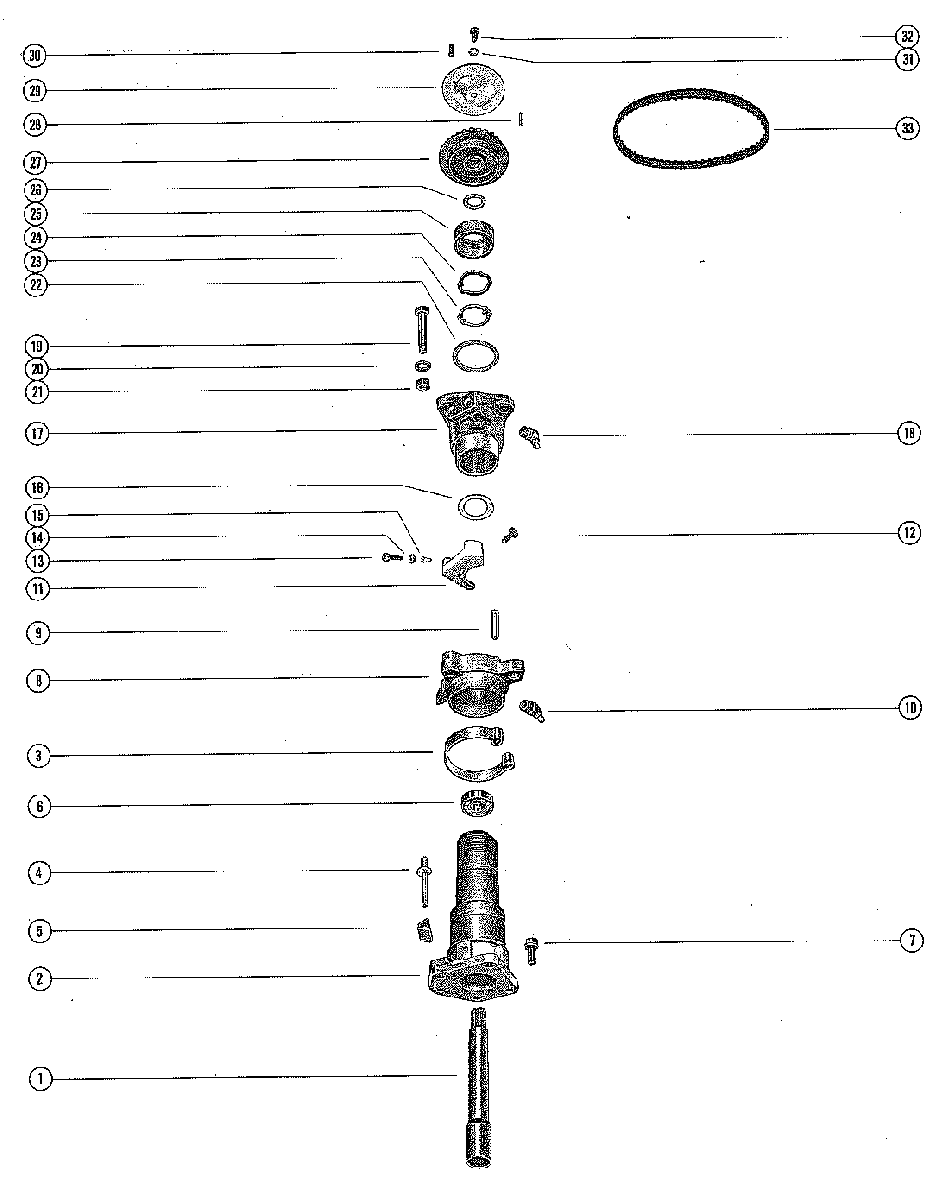

DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY для Mercury - 650 (4 CYL.) 2309311 THRU 2803561

  • №
    Артикул
    Название
  • 1
    45-47953 SHAFT, DRIVE - DISTRIBUTOR
    SHAFT, DRIVE - DISTRIBUTOR
  • 2
    46242A1 DISTRIBUTOR PILOT ASSEMBLY
    DISTRIBUTOR PILOT ASSEMBLY
  • 3
    24-27944 SPRING, HORSESHOE - DISTRIBUTOR PILOT
    SPRING, HORSESHOE - DISTRIBUTOR PILOT
  • 4
    17-27962 PIN, ANCHOR - HORSESHOE SPRING TO PILOT
    PIN, ANCHOR - HORSESHOE SPRING TO PILOT
  • 6
    30-20066 BEARING, BALL - DISTRIBUTOR PILOT
    BEARING, BALL - DISTRIBUTOR PILOT
  • 7
    10-455611 SCREW, PILOT ASSEMBLY TO DISTRIBUTOR (1-1/8")
    SCREW, PILOT ASSEMBLY TO DISTRIBUTOR (1-1/8")
  • 8
    48103A1 ECONOMIZER COLLAR AND PIN ASSEMBLY
    ECONOMIZER COLLAR AND PIN ASSEMBLY
  • 9
    17-27961 PIN, ECONOMIZER COLLAR - SPRING RETAINER
    PIN, ECONOMIZER COLLAR - SPRING RETAINER
  • 10
    22-25094 FITTING, GREASE - ECONOMIZER COLLAR
    FITTING, GREASE - ECONOMIZER COLLAR
  • 11
    48306 PLATE, THROTTLE ACTUATOR
    PLATE, THROTTLE ACTUATOR
  • 12
    10-46420 SCREW, THROTTLE ACTUATOR TO ECONOMIZER COLLAR (1/2")
    SCREW, THROTTLE ACTUATOR TO ECONOMIZER COLLAR (1/2")
  • 13
    10-23702 SCREW, ADJUSTING 0 THROTTLE ACTUATOR (1-1/8")
    SCREW, ADJUSTING 0 THROTTLE ACTUATOR (1-1/8")
  • 14
    11-68219 NUT, THROTTLE ACTUATOR ADJUSTING SCREW
    NUT, THROTTLE ACTUATOR ADJUSTING SCREW
  • 15
    48039 CAP, THROTTLE ACTUATOR ADJUSTING SCREW
    CAP, THROTTLE ACTUATOR ADJUSTING SCREW
  • 16
    12-46246 WASHER, PILOT TO DISTRIBUTOR ADAPTOR
    WASHER, PILOT TO DISTRIBUTOR ADAPTOR
  • 17
    66856A1 ADAPTOR, DISTRIBUTOR
    ADAPTOR, DISTRIBUTOR
  • 18
    22-25094 FITING, GREASE - DISTRIBUTOR ADAPTOR
    FITING, GREASE - DISTRIBUTOR ADAPTOR
  • 19
    10-78841 SCREW, DISTRIBUTOR ADAPTOR AND PILOT TO CRANKCASE
    SCREW, DISTRIBUTOR ADAPTOR AND PILOT TO CRANKCASE
  • 20
    12-20084 WASHER, DISTRIBUTOR ADAPTOR AND PILOT SCREW
    WASHER, DISTRIBUTOR ADAPTOR AND PILOT SCREW
  • 21
    11-22053 NUT, DISTRIBUTOR ADAPTOR AND PILOT SCREW
    NUT, DISTRIBUTOR ADAPTOR AND PILOT SCREW
  • 22
    12-27939 WASHER, DISTRIBUTOR PILOT
    WASHER, DISTRIBUTOR PILOT
  • 23
    14-27960 TAB WASHER, ADAPTOR CAP FASTENING
    TAB WASHER, ADAPTOR CAP FASTENING
  • 24
    13-27959 WASHER, WAVE - DISTRIBUTOR BALL BEARING TENSION
    WASHER, WAVE - DISTRIBUTOR BALL BEARING TENSION
  • 25
    27955 CAP, DISTRIBUTING ADAPTOR AND PILOT FASTENING
    CAP, DISTRIBUTING ADAPTOR AND PILOT FASTENING
  • 26
    23-29909 SPACER, DRIVE PULLEY
    SPACER, DRIVE PULLEY
  • 27
    29906A1 DRIVEN PULLEY ASSEMBLY
    DRIVEN PULLEY ASSEMBLY
  • 28
    17-29908 PIN, ROLL - FLANGE LOCATING
    PIN, ROLL - FLANGE LOCATING
  • 29
    29907 FLANGE, DRIVEN PULLEY
    FLANGE, DRIVEN PULLEY
  • 30
    28-29910 KEY, DISTRIBUTOR DRIVER
    KEY, DISTRIBUTOR DRIVER
  • 31
    13-26996 LOCKWASHER, PULLEY CLAMPING SCREW
    LOCKWASHER, PULLEY CLAMPING SCREW
  • 32
    10-41506 SCREW, PULLEY CLAMPING
    SCREW, PULLEY CLAMPING
  • 33
    20140 BELT, TIMING
    BELT, TIMING
