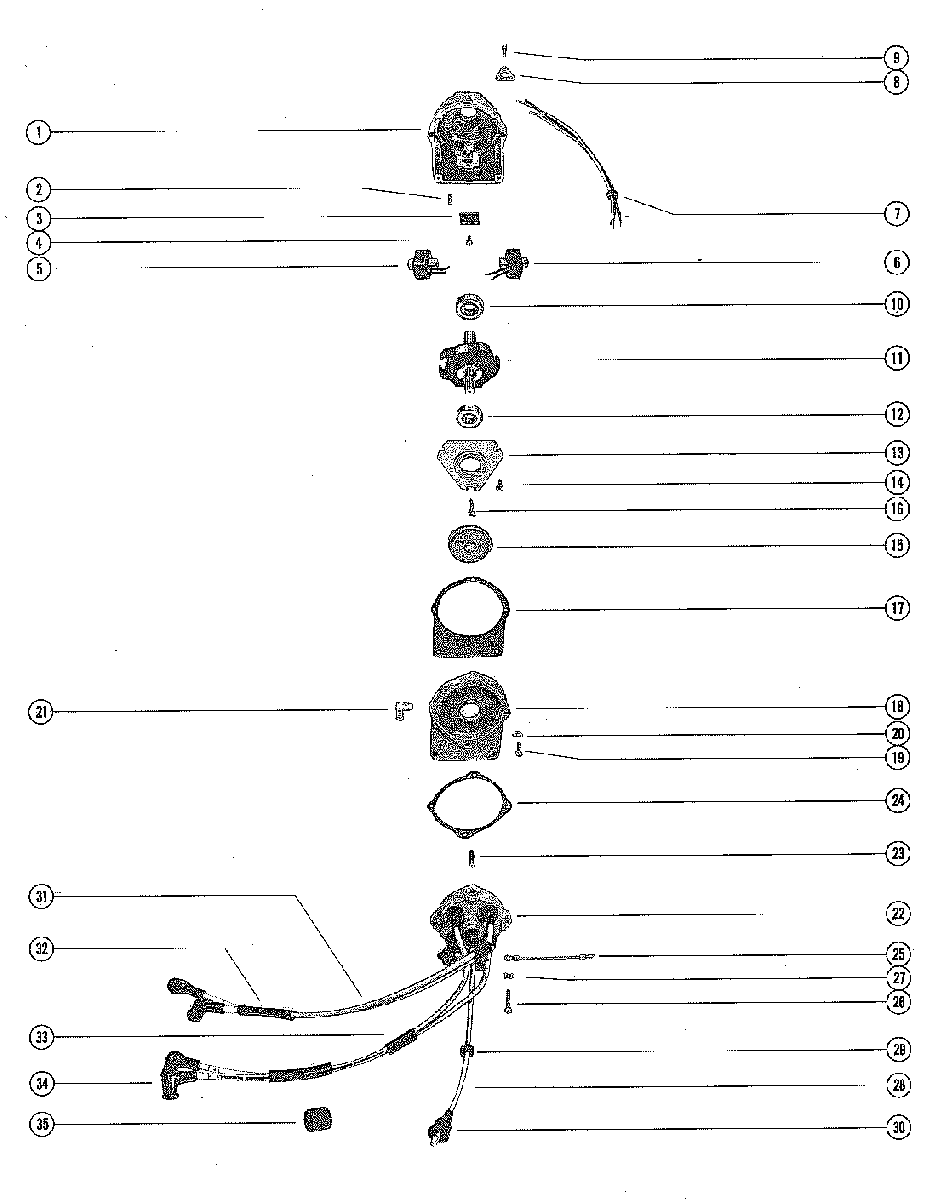

IGNITION DRIVER ASSEMBLY, COMPLETE для Mercury - 650 (4 CYL.) 2309311 THRU 2803561
-
№АртикулНазвание
-
333-4674A3 IGNITION DRIVER ASSEMBLY, COMPLETEIGNITION DRIVER ASSEMBLY, COMPLETE
-
1333-4674A3 HOUSING, IGNITION DRIVERHOUSING, IGNITION DRIVER
-
210-47183 SCREW, SET - COIL ASSEMBLY FASTENINGSCREW, SET - COIL ASSEMBLY FASTENING
-
3333-3172A1 TERMINAL BOARD ASSEMBLY, IGNITION DRIVERTERMINAL BOARD ASSEMBLY, IGNITION DRIVER
-
410-47182 SCREW, TERMINAL BOARD ASSEMBLY FASTENING (1/2")SCREW, TERMINAL BOARD ASSEMBLY FASTENING (1/2")
-
5333-3175 COIL ASSEMBLY, IGNITION DRIVER (RED)COIL ASSEMBLY, IGNITION DRIVER (RED)
-
6333-3176 COIL ASSEMBLY, IGNITION DRIVER (BLUE)COIL ASSEMBLY, IGNITION DRIVER (BLUE)
-
7333-3173 HARNESS, PRIMARY CABLE - IGNITION DRIVERHARNESS, PRIMARY CABLE - IGNITION DRIVER
-
854-47188 CLAMP, PRIMARY HARNESS CABLE - IGNITION DRIVERCLAMP, PRIMARY HARNESS CABLE - IGNITION DRIVER
-
910-28259 SCREW, PRIMARY HARNESS CABLE CLAMP FASTENING (5/8")SCREW, PRIMARY HARNESS CABLE CLAMP FASTENING (5/8")
-
1030-24998 BEARING, BALL - DRIVER END (1-3/8" O.D.)BEARING, BALL - DRIVER END (1-3/8" O.D.)
-
11333-4674A3 SHAFT ASSEMBLY, IGNITION DRIVERSHAFT ASSEMBLY, IGNITION DRIVER
-
1230-49090 BEARING, BALL - IGNITION DRIVER END (1-1/4" O.D.)BEARING, BALL - IGNITION DRIVER END (1-1/4" O.D.)
-
13333-3166 CAP, BEARING - IGNITION DRIVER HOUSINGCAP, BEARING - IGNITION DRIVER HOUSING
-
1410-37656 SCREW, BEARING CAP FASTENING (9/16")SCREW, BEARING CAP FASTENING (9/16")
-
15333-3143 ROTOR ASSEMBLY, IGNITION DRIVERROTOR ASSEMBLY, IGNITION DRIVER
-
1654-47187 CLIP, SPRING - IGNITION DRIVER ROTORCLIP, SPRING - IGNITION DRIVER ROTOR
-
1727-61031 GASKET, IGNITION DRIVER COVERGASKET, IGNITION DRIVER COVER
-
18333-4639A1 COVER, IGNITION DRIVERCOVER, IGNITION DRIVER
-
1910-20189 SCREW, IGNITION DRIVER COVER FASTENING (3/4")SCREW, IGNITION DRIVER COVER FASTENING (3/4")
-
2014-29157 TAB WASHER, IGNITION DRIVER COVER FASTENINGTAB WASHER, IGNITION DRIVER COVER FASTENING
-
2122-31521 ELBOW, VENT - IGNITION DRIVER COVERELBOW, VENT - IGNITION DRIVER COVER
-
22333-3142A3 CAP ASSEMBLY, IGNITION DRIVERCAP ASSEMBLY, IGNITION DRIVER
-
23333-3165A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
2427-47190 GASKET, IGNITION DRIVER CAPGASKET, IGNITION DRIVER CAP
-
25394-1134A2 GROUND STRAP ASSEMBLYGROUND STRAP ASSEMBLY
-
2610-47181 SCREW, IGNITION DRIVER CAP FASTENING (1-7/8')SCREW, IGNITION DRIVER CAP FASTENING (1-7/8')
-
2610-73013 SCREW, IGNITION DRIVER CAP FASTENING (1-1/2")SCREW, IGNITION DRIVER CAP FASTENING (1-1/2")
-
2714-29157 TAB WASHER, IGNITION DRIVER CAP FASTENING SCREWTAB WASHER, IGNITION DRIVER CAP FASTENING SCREW
-
2884-821945A8 LEAD ASSEMBLY, HIGH TENSION - IGNITION DRIVER TO COILLEAD ASSEMBLY, HIGH TENSION - IGNITION DRIVER TO COIL
-
--8M0084600 TERMINAL, HIGH TENSION LEADTERMINAL, HIGH TENSION LEAD
-
--85-94589 SLEEVE, HIGH TENSION LEAD TERMINAL COVERSLEEVE, HIGH TENSION LEAD TERMINAL COVER
-
2925-26547 GROMMET, COIL WIRE BRACKETGROMMET, COIL WIRE BRACKET
-
30332-2854T01 BOOT, HIGH TENSION LEAD CABLEBOOT, HIGH TENSION LEAD CABLE
-
3184-813715A1 SPARK PLUG LEAD ASSEMBLY (27-1/2")
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERSSPARK PLUG LEAD ASSEMBLY (27-1/2")
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS -
--8M0084600 CONNECTOR, SPARK PLUG LEADCONNECTOR, SPARK PLUG LEAD
-
--85-94589 SLEEVE, SPARK PLUG LEAD TO IGNITION DRIVERSLEEVE, SPARK PLUG LEAD TO IGNITION DRIVER
-
3232-46768 SLEEVE, SPARK PLUG LEAD (6")SLEEVE, SPARK PLUG LEAD (6")
-
3332-46768 SLEEVE, SPARK PLUG LEAD (1-1/2")SLEEVE, SPARK PLUG LEAD (1-1/2")
-
3485-63709A1 PROTECTOR ASSEMBLY, SPARK PLUG LEADSPROTECTOR ASSEMBLY, SPARK PLUG LEADS
-
3532-46398 SLEEVE, HIGH TENSION CABLE (3/4")SLEEVE, HIGH TENSION CABLE (3/4")
