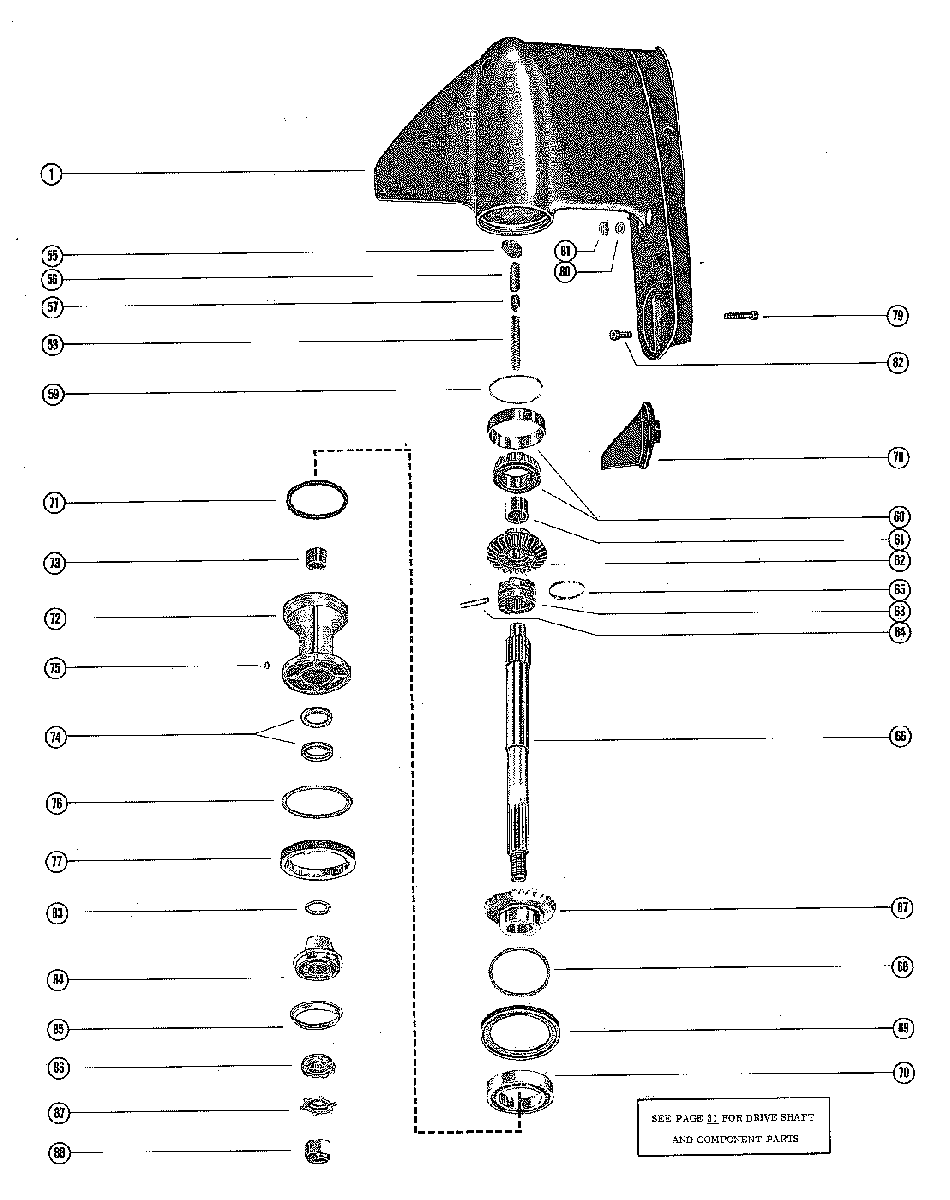

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 650 (4 CYL.) 2309311 THRU 2803561

  • №
    Артикул
    Название
  • -
    1623-3912A8 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    SEE NOTE BELOW
  • -
    1623-3912A9 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    SEE NOTE BELOW
  • -
    1623-3912A8 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    SEE NOTE BELOW
  • -
    1623-3912A9 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    SEE NOTE BELOW
  • 1
    1623-5244A14 GEAR HOUSING ASSEMBLY-SEE PAGE 31 FOR BREAKDOWN
    GEAR HOUSING ASSEMBLY-SEE PAGE 31 FOR BREAKDOWN
  • 1
    1623-5244A14 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 55
    760394 CAM, SHIFT
    SERIAL 00000000-02712072
    CAM, SHIFT
    SERIAL 00000000-02712072
  • 55
    760394 CAM, SHIFT
    SERIAL 02712073-09999999
    CAM, SHIFT
    SERIAL 02712073-09999999
  • 56
    30625 FOLLOWER, CAM
    FOLLOWER, CAM
  • 57
    32-20634 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 58
    24-30622 SPRING, COMPRESSION-CAM FOLLOWER
    SPRING, COMPRESSION-CAM FOLLOWER
  • 59
    15-30923A1 SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10)
    SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10)
  • 60
    31-30894A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 61
    31-30895T BEARING, ROLLER-FORWARD GEAR
    BEARING, ROLLER-FORWARD GEAR
  • 62
    43-53100A3 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 62
    43-53100A3 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 63
    52-822539T RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 64
    17-8M0100263 PIN, CROSS-RATCHET TO PROPELLER SHAFT
    PIN, CROSS-RATCHET TO PROPELLER SHAFT
  • 65
    24-30893 SPRING, RETAINING-CROSS PIN
    SPRING, RETAINING-CROSS PIN
  • 66
    44-47900A2 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 66
    44-93003 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 67
    43-31887 REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 68
    15-29955A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
    SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
  • 69
    12-71143A1 WASHER, THRUST-BEARING CARRIER TO GEAR HOUSING
    WASHER, THRUST-BEARING CARRIER TO GEAR HOUSING
  • 70
    30-31265 BEARING, BALL-REVERSE GEAR
    BEARING, BALL-REVERSE GEAR
  • 71
    25-29976 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 72
    31284T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 72
    52132T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 73
    31-30956T BEARING, ROLLER-BEARING CARRIER
    BEARING, ROLLER-BEARING CARRIER
  • 74
    26-76868 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 75
    28-30281 KEY, LOCATING-BEARING CARRIER
    KEY, LOCATING-BEARING CARRIER
  • 76
    12-29957 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 77
    52699 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 76
    14-52700 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 77
    52699 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 78
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 79
    10-32470 SCREW, TRIM TAB TO GEAR HOUSING (1-3/4")
    SCREW, TRIM TAB TO GEAR HOUSING (1-3/4")
  • 80
    12-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 81
    11-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 82
    10-34353 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
  • 83
    12-31013 WASHER, THRUST-BEARING CARRIER
    WASHER, THRUST-BEARING CARRIER
  • 84
    65091Q01 THRUST HUB AND WASHER ASSEMBLY
    PART OF A-1623-3486A8 AND A9 GEAR HOUSING ASSEMBLIES COMPLETE
    THRUST HUB AND WASHER ASSEMBLY
    PART OF A-1623-3486A8 AND A9 GEAR HOUSING ASSEMBLIES COMPLETE
  • 85
    12-29590 WASHER, CUPPED-THRUST HUB
    PART OF A-1623-3486A8 AND A9 GEAR HOUSING ASSEMBLIES COMPLETE
    WASHER, CUPPED-THRUST HUB
    PART OF A-1623-3486A8 AND A9 GEAR HOUSING ASSEMBLIES COMPLETE
  • 86
    12-31211Q03 WASHER, SPLINED-PROPELLER NUT
    WASHER, SPLINED-PROPELLER NUT
  • 87
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 88
    11-29594 NUT, PROPELLER
    NUT, PROPELLER
  • 88
    11-52707Q1 NUT, PROPELLER
    NUT, PROPELLER
