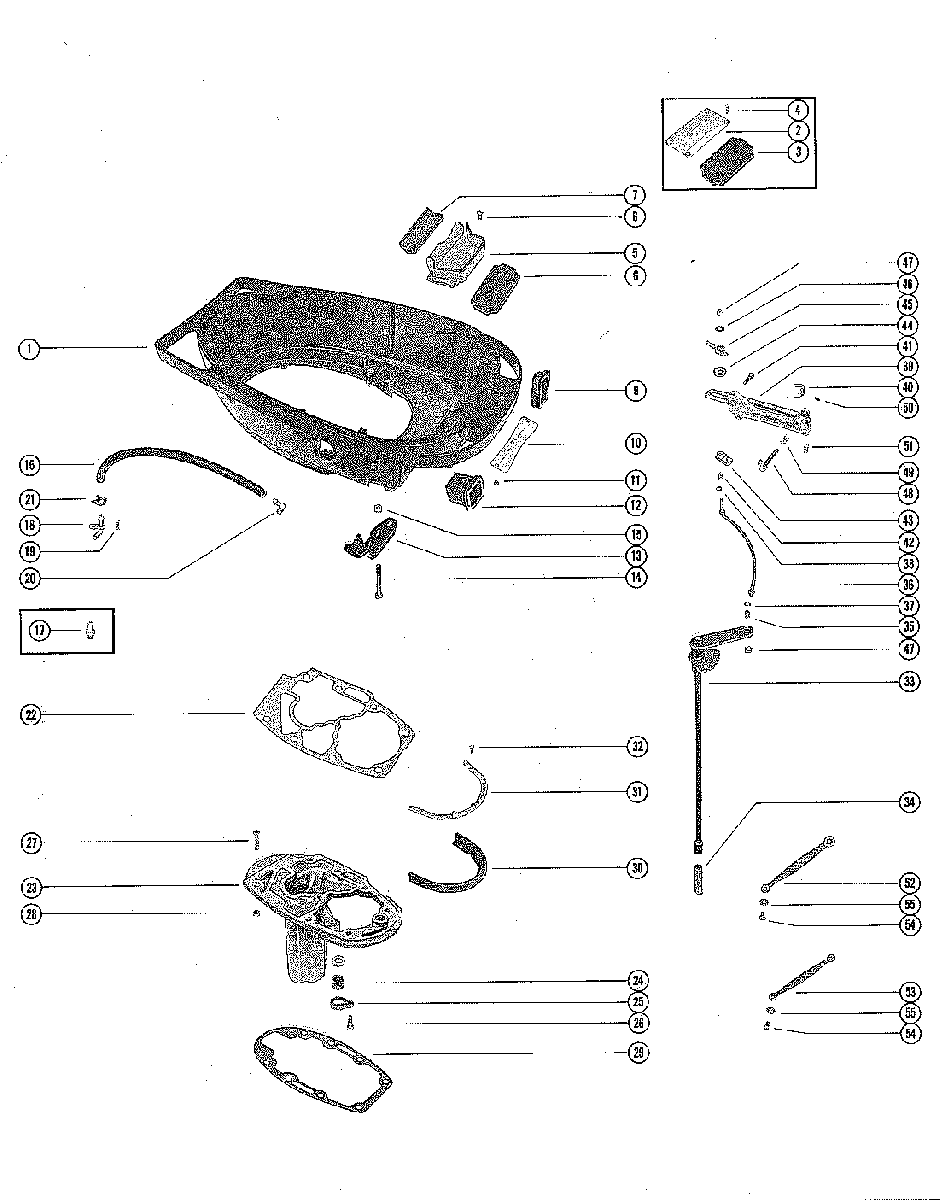

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 650 (4 CYL.) 2309311 THRU 2803561
-
№АртикулНазвание
-
12115-3807 COWL, BOTTOMCOWL, BOTTOM
-
12115-3807 COWL, BOTTOMCOWL, BOTTOM
-
237920A1 COVER PLATE ASSEMBLY, BOTTOM COWLCOVER PLATE ASSEMBLY, BOTTOM COWL
-
337940 PAD, SOUND-COVER PLATEPAD, SOUND-COVER PLATE
-
410-8M0113176 SCREW, COVER PLATE TO BOTTOM COWL (3/8")SCREW, COVER PLATE TO BOTTOM COWL (3/8")
-
552862A2 DRIP TRAY ASSEMBLY, BOTTOM COWLDRIP TRAY ASSEMBLY, BOTTOM COWL
-
637940 PAD, SOUND-DRIP TRAYPAD, SOUND-DRIP TRAY
-
737903 FLANGE, RUBBER-DRIP TRAYFLANGE, RUBBER-DRIP TRAY
-
810-41228 SCREW, DRIP TRAY TO BOTTOM COWL (1/2")SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
-
937638 BOOT, CONTROL CABLES-BOTTOM COWLBOOT, CONTROL CABLES-BOTTOM COWL
-
1023760 BAFFLE, BOTTOM COWLBAFFLE, BOTTOM COWL
-
1110-21106 SCREW, BAFFLE TO BOTTOM COWLSCREW, BAFFLE TO BOTTOM COWL
-
1110-52867 SCREW, BAFFLE TO BOTTOM COWLSCREW, BAFFLE TO BOTTOM COWL
-
1237637 BOOT, FUEL CONNECTOR-BOTTOM COWLBOOT, FUEL CONNECTOR-BOTTOM COWL
-
1337445 SUPPORT, WIRING HARNESS-BOTTOM COWLSUPPORT, WIRING HARNESS-BOTTOM COWL
-
1410-37561 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (2-1/2")SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (2-1/2")
-
1410-69029 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1-3/4")SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1-3/4")
-
1511-20184 NUT, WIRING HARNESS SUPPORT SCREWNUT, WIRING HARNESS SUPPORT SCREW
-
1632-8M0108355 HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")
-
1722-291112 CONNECTOR, TELL TALE HOSE TO BOTTOM COWLCONNECTOR, TELL TALE HOSE TO BOTTOM COWL
-
1852889 NOZZLE, TELL TALE HOSE TO BOTTOM COWLNOZZLE, TELL TALE HOSE TO BOTTOM COWL
-
1910-41228 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
-
2022-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVERELBOW, TELL TALE HOSE TO EXHAUST COVER
-
2154-48123 CLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOWCLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOW
-
2227-47257 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATEGASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
-
2356306A2 PLATE ASSEMBLY, EXHAUST EXTENSION
SERIAL 00000000-02312935PLATE ASSEMBLY, EXHAUST EXTENSION
SERIAL 00000000-02312935 -
2356306A2 PLATE ASSEMBLY, EXHAUST EXTENSION
SERIAL 02312936-09999999PLATE ASSEMBLY, EXHAUST EXTENSION
SERIAL 02312936-09999999 -
2356306A2 PLATE ASSEMBLY, EXHAUST EXTENSIONPLATE ASSEMBLY, EXHAUST EXTENSION
-
2426-38970 SEAL, RUBBER-WATER INLET TUBESEAL, RUBBER-WATER INLET TUBE
-
2538448 RETAINER, WATER TUBE SEALRETAINER, WATER TUBE SEAL
-
2610-69069 SCREW, RETAINER TO EXTENSION PLATE (3/4")SCREW, RETAINER TO EXTENSION PLATE (3/4")
-
2710-24226 SCREW, EXTENSION PLATE TO DRIVE SHAFT HOUSING (1-1/4")SCREW, EXTENSION PLATE TO DRIVE SHAFT HOUSING (1-1/4")
-
2811-20184 NUT, EXHAUST EXTENSION PLATE SCREWNUT, EXHAUST EXTENSION PLATE SCREW
-
2927-38471 GASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSING
-
3037918 SEAL, EXHAUST EXTENSION PLATESEAL, EXHAUST EXTENSION PLATE
-
3199358 STRIP, RETAINING-EXHAUST EXTENSION PLATE SEALSTRIP, RETAINING-EXHAUST EXTENSION PLATE SEAL
-
3210-37571 SCREW, SEAL AND STRIP TO EXHAUST EXTENSION PLATE (1/2")SCREW, SEAL AND STRIP TO EXHAUST EXTENSION PLATE (1/2")
-
3349904A2 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
-
3349905A2 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
-
3349904A2 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
SERIAL 00000000-02606012SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
SERIAL 00000000-02606012 -
3349905A2 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
SERIAL 00000000-02606012SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
SERIAL 00000000-02606012 -
3360304A55 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
SERIAL 02606013-09999999SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
SERIAL 02606013-09999999 -
3360304A54 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
SERIAL 02606013-09999999SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
SERIAL 02606013-09999999 -
3493960A1 COUPLING, SHIFT SHAFT
SERIAL 02606013-09999999COUPLING, SHIFT SHAFT
SERIAL 02606013-09999999 -
3523-26600 BUSHING, NYLON-UPPER SHIFT SHAFT
SERIAL 02606013-09999999BUSHING, NYLON-UPPER SHIFT SHAFT
SERIAL 02606013-09999999 -
3673402 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
3712-24664 WASHER, LINK ROD (SHIFT LEVER END)WASHER, LINK ROD (SHIFT LEVER END)
-
3813-29720 WASHER, WAVE-LINK RODWASHER, WAVE-LINK ROD
-
3952732A6 BRACKET ASSEMBLY, ANCHOR CONTROL CABLESBRACKET ASSEMBLY, ANCHOR CONTROL CABLES
-
4038802 CAP, BRASS BARREL OF THROTTLE CABLECAP, BRASS BARREL OF THROTTLE CABLE
-
4049935 CAP, BRASS BARREL OF THROTTLE CABLECAP, BRASS BARREL OF THROTTLE CABLE
-
4110-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
-
4224-20099 SPRING, LINK ROD TO GUIDE BLOCKSPRING, LINK ROD TO GUIDE BLOCK
-
4337896 GUIDE BLOCK, LINK RODGUIDE BLOCK, LINK ROD
-
4412-37905 WASHER, NYLON-LINK RODWASHER, NYLON-LINK ROD
-
4452100 WEAR PLATE, LINK ROD (NOT AS SHOWN)WEAR PLATE, LINK ROD (NOT AS SHOWN)
-
458M0036768 LATCH, CONTROL CABLE FASTENING-ANCHOR BRACKETLATCH, CONTROL CABLE FASTENING-ANCHOR BRACKET
-
4612-69056 WASHER, CONTROL CABLE LATCH LINK RODWASHER, CONTROL CABLE LATCH LINK ROD
-
4711-8267089 NUT, LINK RODNUT, LINK ROD
-
4849932A1 LEVER, CONTROL CABLE LOCKING-ANCHOR BRACKETLEVER, CONTROL CABLE LOCKING-ANCHOR BRACKET
-
4849932A1 LEVER ASSEMBLY, CONTROL CABLE LOCKING-ANCHOR BRACKETLEVER ASSEMBLY, CONTROL CABLE LOCKING-ANCHOR BRACKET
-
4924-37911 SPRING, CONTROL CABLE LOCKING LEVERSPRING, CONTROL CABLE LOCKING LEVER
-
5017-239281 PIN, ROLL-CONTROL CABLE LOCKING LEVERPIN, ROLL-CONTROL CABLE LOCKING LEVER
-
5124-38472 SPRING, CONTROL CABLE TENSION-ANCHOR BRACKETSPRING, CONTROL CABLE TENSION-ANCHOR BRACKET
-
5246933A1 GROUND STRAP ASSEMBLY, CRANKCASE TO BOTTOM COWLGROUND STRAP ASSEMBLY, CRANKCASE TO BOTTOM COWL
-
5346933A2 GROUND STRAP ASSY,DRIVE SHAFT HOUSING TO BOTTOM COWLGROUND STRAP ASSY,DRIVE SHAFT HOUSING TO BOTTOM COWL
-
5410-62568 SCREW, GROUND STRAP ATTACHING (3/8")SCREW, GROUND STRAP ATTACHING (3/8")
-
5513-69432 WASHER, GROUND STRAP SCREWWASHER, GROUND STRAP SCREW
