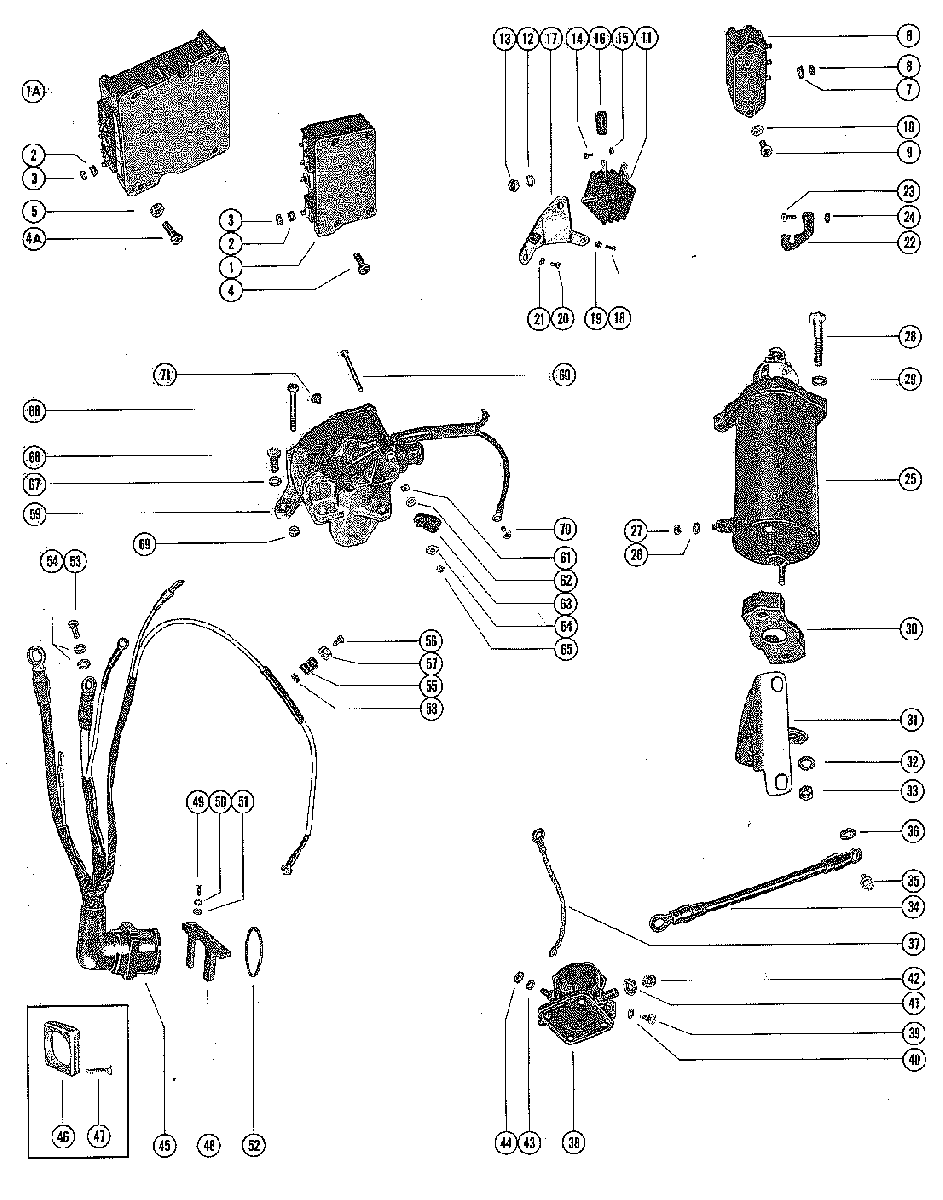

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mercury - 650 (4 CYL.) 2309311 THRU 2803561

  • №
    Артикул
    Название
  • 1
    333-3213A3 SWITCH BOX ASSEMBLY, COMLETE
    SERIAL )2446775-09999999
    SWITCH BOX ASSEMBLY, COMLETE
    SERIAL )2446775-09999999
  • 1A
    332-2986A27 SWITCH BOX ASSEMBLY, COMPLETE
    SWITCH BOX ASSEMBLY, COMPLETE
  • 2
    12-45075 WASHER, SWITCH BOX TERMINAL
    SERIAL )2446775-09999999
    WASHER, SWITCH BOX TERMINAL
    SERIAL )2446775-09999999
  • 2
    12-45075 WASHER, SWITCH BOX TERMINAL
    WASHER, SWITCH BOX TERMINAL
  • 3
    11-45076 NUT, SWITCH BOX TERMINAL
    SERIAL )2446775-09999999
    NUT, SWITCH BOX TERMINAL
    SERIAL )2446775-09999999
  • 3
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 4
    10-64279 SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")
    SERIAL )2446775-09999999
    SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")
    SERIAL )2446775-09999999
  • 4A
    10-22485 SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")
    SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")
  • 5
    11-20184 NUT, SWITCH BOX TO FRONT SUPPORT BRACKET SCREW
    NUT, SWITCH BOX TO FRONT SUPPORT BRACKET SCREW
  • 6
    78614A1 RECTIFIER ASSEMBLY, COMPLETE
    SERIAL 00000000-02446774
    RECTIFIER ASSEMBLY, COMPLETE
    SERIAL 00000000-02446774
  • 7
    12-45075 WASHER, RECTIFIER TERMINAL
    SERIAL 00000000-02446774
    WASHER, RECTIFIER TERMINAL
    SERIAL 00000000-02446774
  • 8
    11-45076 NUT, RECTIFIER TERMINAL
    SERIAL 00000000-02446774
    NUT, RECTIFIER TERMINAL
    SERIAL 00000000-02446774
  • 10
    10-22485 NUT, RECTIFIER TO FRONT SUPPORT BRACKET SCREW
    SERIAL 00000000-02446774
    NUT, RECTIFIER TO FRONT SUPPORT BRACKET SCREW
    SERIAL 00000000-02446774
  • 11
    8M0058226 RECTIFIER
    SERIAL 02446775-09999999
    RECTIFIER
    SERIAL 02446775-09999999
  • 12
    13-26993 LOCKWASHER, RECTIFIER TO RECTIFIER MOUNTING BRACKET
    SERIAL 02446775-09999999
    LOCKWASHER, RECTIFIER TO RECTIFIER MOUNTING BRACKET
    SERIAL 02446775-09999999
  • 13
    11-20922 NUT, RECTIFIER TO RECTIFIER MOUNTING BRACKET
    SERIAL 02446775-09999999
    NUT, RECTIFIER TO RECTIFIER MOUNTING BRACKET
    SERIAL 02446775-09999999
  • 14
    10-35400 SCREW, RECTIFIER TERMINALS
    SERIAL 02446775-09999999
    SCREW, RECTIFIER TERMINALS
    SERIAL 02446775-09999999
  • 15
    11-826709106 NUT, RECTIFIER TERMINALS
    SERIAL 02446775-09999999
    NUT, RECTIFIER TERMINALS
    SERIAL 02446775-09999999
  • 16
    32-28373 SLEEVE, RECTIFIER TERMINALS
    SERIAL 02446775-09999999
    SLEEVE, RECTIFIER TERMINALS
    SERIAL 02446775-09999999
  • 17
    49730 BRACKET, RECTIFIER MOUNTING
    SERIAL 02446775-09999999
    BRACKET, RECTIFIER MOUNTING
    SERIAL 02446775-09999999
  • 18
    10-29072 SCREW, RECTIFIER MOUNTING BRACKET TO COIL BRACKET (5/8")
    SERIAL 02446775-09999999
    SCREW, RECTIFIER MOUNTING BRACKET TO COIL BRACKET (5/8")
    SERIAL 02446775-09999999
  • 19
    11-24656 NUT, RECTIFIER MOUNTING BRACKET SCREW
    SERIAL 02446775-09999999
    NUT, RECTIFIER MOUNTING BRACKET SCREW
    SERIAL 02446775-09999999
  • 20
    10-98256 SCREW, RECTIFIER MOUNTING BRACKET TO COIL BRACKET (1/2")
    SERIAL 02446775-09999999
    SCREW, RECTIFIER MOUNTING BRACKET TO COIL BRACKET (1/2")
    SERIAL 02446775-09999999
  • 21
    13-24669 LOCKWASHER, RECTIFIER MOUNTINGF BRACKET SCREW
    SERIAL 02446775-09999999
    LOCKWASHER, RECTIFIER MOUNTINGF BRACKET SCREW
    SERIAL 02446775-09999999
  • 17
    53145 BRACKET, RECTIFIER MOUNTING (NOT AS SHOWN)
    BRACKET, RECTIFIER MOUNTING (NOT AS SHOWN)
  • 18
    10-72169 SCREW, RECTIFIER MOUNTING BRACKET TO COIL BRACKET (1/2")
    SCREW, RECTIFIER MOUNTING BRACKET TO COIL BRACKET (1/2")
  • 22
    59757 BRACKET, RETAINER - HIGH TENSION LEAD
    BRACKET, RETAINER - HIGH TENSION LEAD
  • 23
    10-21722 SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET (5/8")
    SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET (5/8")
  • 23
    10-22956 SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET (7/8")
    SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET (7/8")
  • 24
    11-20184 NUT, RETAINER BRACKET SCREW
    NUT, RETAINER BRACKET SCREW
  • 25
    50-45822A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 26
    13-26992 LOCKWASHER, STARTER MOTOR TERMINAL
    LOCKWASHER, STARTER MOTOR TERMINAL
  • 27
    11-20890 NUT, STARTER MOTOR TERMINAL
    NUT, STARTER MOTOR TERMINAL
  • 28
    10-22698 SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1-3/4")
    SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1-3/4")
  • 29
    13-26993 LOCKWASHER, STARTER MOTOR SCREW
    LOCKWASHER, STARTER MOTOR SCREW
  • 30
    37331 PLATE, SPACER - STARTER MOTOR TO BRACKET
    PLATE, SPACER - STARTER MOTOR TO BRACKET
  • 31
    38747 BRACKET, SUPPORT - STARTER MOTOR
    BRACKET, SUPPORT - STARTER MOTOR
  • 32
    13-24669 LOCKWASHER, THRU BOLT - BRACKET TO STARTER MOTOR
    LOCKWASHER, THRU BOLT - BRACKET TO STARTER MOTOR
  • 33
    11-20088 NUT, THRU BOLT - BRACKET TO STARTER MOTOR
    NUT, THRU BOLT - BRACKET TO STARTER MOTOR
  • 34
    84-93389A12 WIRE, STARTER MOTOR TO STARTER SOLENOID AND TOP MOUNT
    SERIAL 00000000-02446774
    WIRE, STARTER MOTOR TO STARTER SOLENOID AND TOP MOUNT
    SERIAL 00000000-02446774
  • 34
    84-93389A12 WIRE, STARTER MOTOR TO STARTER SOLENOID AND TOP MOUNT
    SERIAL 00000000-02446774
    WIRE, STARTER MOTOR TO STARTER SOLENOID AND TOP MOUNT
    SERIAL 00000000-02446774
  • 34
    49731 WIRE, STARTER MOTOR TO STARTER SOLENOID STARTED
    SERIAL 02446775-09999999
    WIRE, STARTER MOTOR TO STARTER SOLENOID STARTED
    SERIAL 02446775-09999999
  • 34
    26511 WIRE, STARTER MOTOR TO TO MOUNT
    SERIAL 02446775-09999999
    WIRE, STARTER MOTOR TO TO MOUNT
    SERIAL 02446775-09999999
  • 35
    10-69035 SCREW, GROUND WIRE TO STARTER MOTOR
    SCREW, GROUND WIRE TO STARTER MOTOR
  • 36
    13-26992 LOCKWASHER, GROUND WIRE FASTENING SCREW
    LOCKWASHER, GROUND WIRE FASTENING SCREW
  • 37
    46715 GROUND STRAP ASSEMBLY
    GROUND STRAP ASSEMBLY
  • 38
    32445A1 STARTER SOLENOID
    SERIAL 00000000-02446774
    STARTER SOLENOID
    SERIAL 00000000-02446774
  • 39
    10-29238 SCREW, STARTER SOLENOID TO STARTER MOTOR
    SERIAL 00000000-02446774
    SCREW, STARTER SOLENOID TO STARTER MOTOR
    SERIAL 00000000-02446774
  • 38
    25661T1 STARTER SOLENOID
    SERIAL 02446775-09999999
    STARTER SOLENOID
    SERIAL 02446775-09999999
  • 39
    10-69028 SCREW, STARTER SOLENOID TO COIL BRACKET
    SERIAL 02446775-09999999
    SCREW, STARTER SOLENOID TO COIL BRACKET
    SERIAL 02446775-09999999
  • 40
    13-26992 LOCKWASHER, STARTER SOLENOID MOUNTING SCREW
    SERIAL 02446775-09999999
    LOCKWASHER, STARTER SOLENOID MOUNTING SCREW
    SERIAL 02446775-09999999
  • 41
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")
    LOCKWASHER, SOLENOID TERMINAL (5/16")
  • 42
    11-22053 NUT, SOLENOID TERMINAL - INSIDE (5/16")
    NUT, SOLENOID TERMINAL - INSIDE (5/16")
  • 43
    13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)
    LOCKWASHER, SOLENOID TERMINAL (#10)
  • 44
    11-68219 NUT, SOLENOID TERMINAL (#10)
    NUT, SOLENOID TERMINAL (#10)
  • 45
    47956 WIRING HARNESS (INTERNAL)
    WIRING HARNESS (INTERNAL)
  • 45
    46985 WIRING HARNESS (INTERNAL)
    WIRING HARNESS (INTERNAL)
  • 45
    49370 WIRING HARNESS (INTERNAL)
    WIRING HARNESS (INTERNAL)
  • 45
    52820 WIRING HARNESS (INTERNAL)
    WIRING HARNESS (INTERNAL)
  • 46
    26079A2 PLATE, BACKING - WIRING HARNESS
    PLATE, BACKING - WIRING HARNESS
  • 47
    10-45893 SCREW, BACKING PLATE TO BOTTOM COWL (7/8")
    SCREW, BACKING PLATE TO BOTTOM COWL (7/8")
  • 48
    54-76368 CLAMP, WIRE HARNESS TO BOTTM COWL
    CLAMP, WIRE HARNESS TO BOTTM COWL
  • 51
    10-45862 ING HARNESS CLAMP TO BOTTOM COWL (7/8")
    ING HARNESS CLAMP TO BOTTOM COWL (7/8")
  • 54
    13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW
    LOCKWASHER, WIRING HARNESS CLAMP SCREW
  • 51
    12-847883 WASHER, WIRING HARNESS CLAMP SCREW
    WASHER, WIRING HARNESS CLAMP SCREW
  • 52
    24-28975 SPRING, GARTER -INTERNAL WIRING HARNESS
    SPRING, GARTER -INTERNAL WIRING HARNESS
  • 53
    10-98256 SCREW, WIRING HARNESS LEAD TO BOTTOM COWL (1/2")
    SCREW, WIRING HARNESS LEAD TO BOTTOM COWL (1/2")
  • 54
    13-24669 LOCKWASHER, WIRING HARNESS LEAD SCREW
    LOCKWASHER, WIRING HARNESS LEAD SCREW
  • 54
    13-25244 LOCKWASHER, WIRING HARNESS LEAD SCREW
    LOCKWASHER, WIRING HARNESS LEAD SCREW
  • 55
    54-24836 CLIP, WIRING HARNESS LEAD
    CLIP, WIRING HARNESS LEAD
  • 55
    54-26550 CLIP, WIRING HARNESS LEAD
    SERIAL )2446775-09999999
    CLIP, WIRING HARNESS LEAD
    SERIAL )2446775-09999999
  • 55
    54-26550 CLIP, WIRING HARNESS LEAD
    SERIAL )2446775-09999999
    CLIP, WIRING HARNESS LEAD
    SERIAL )2446775-09999999
  • 56
    10-29072 SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")
    SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")
  • 56
    10-29072 SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")
    SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")
  • 56
    10-29072 SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")
    SERIAL )2446775-09999999
    SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")
    SERIAL )2446775-09999999
  • 56
    10-37370 SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")
    SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")
  • 56
    10-69079 SCREW, WIRING HARNESS LEAD CLIP ATTACHING (7/16")
    SCREW, WIRING HARNESS LEAD CLIP ATTACHING (7/16")
  • 57
    8M0084613 "D" WASHER, WIRING HARNESS LEAD CLIP ATTACHING SCREW
    "D" WASHER, WIRING HARNESS LEAD CLIP ATTACHING SCREW
  • 57
    8M0084613 "D" WASHER, WIRING HARNESS LEAD CLIP ATTACHING SCREW
    "D" WASHER, WIRING HARNESS LEAD CLIP ATTACHING SCREW
  • 57
    8M0084613 "D" WASHER, WIRING HARNESS LEAD CLIP ATTACHING SCREW
    SERIAL )2446775-09999999
    "D" WASHER, WIRING HARNESS LEAD CLIP ATTACHING SCREW
    SERIAL )2446775-09999999
  • 58
    11-24656 NUT, WIRING HARNESS LEAD CLIP ATTACHING SCREW
    NUT, WIRING HARNESS LEAD CLIP ATTACHING SCREW
  • 58
    11-24656 NUT, WIRING HARNESS LEAD CLIP ATTACHING SCREW
    NUT, WIRING HARNESS LEAD CLIP ATTACHING SCREW
  • 58
    11-24656 NUT, WIRING HARNESS LEAD CLIP ATTACHING SCREW
    SERIAL )2446775-09999999
    NUT, WIRING HARNESS LEAD CLIP ATTACHING SCREW
    SERIAL )2446775-09999999
  • 59
    332-4895A5 IGNITION COIL ASSEMBLY, COMPLETE
    IGNITION COIL ASSEMBLY, COMPLETE
  • 59
    332-4895A5 IGNITION COIL ASSEMBLY, COMPLETE
    SERIAL 00000000-02446774
    IGNITION COIL ASSEMBLY, COMPLETE
    SERIAL 00000000-02446774
  • 59
    332-4895A5 IGNITION COIL ASSEMBLY, COMPLETE
    SERIAL 02446775-09999999
    IGNITION COIL ASSEMBLY, COMPLETE
    SERIAL 02446775-09999999
  • 60
    10-46368 SCREW, IGNITION CIOL CLAMPING (2-1/4")
    SCREW, IGNITION CIOL CLAMPING (2-1/4")
  • 60
    10-46368 SCREW, IGNITION CIOL CLAMPING (2-1/4")
    SCREW, IGNITION CIOL CLAMPING (2-1/4")
  • 60
    10-46368 SCREW, IGNITION COIL CLAMPING - CLIP ATTACHING (2-1/2")
    SCREW, IGNITION COIL CLAMPING - CLIP ATTACHING (2-1/2")
  • 61
    11-68219 NUT, IGNITION COIL CLAMPING SCREW
    NUT, IGNITION COIL CLAMPING SCREW
  • 62
    12-56681 WASHER, IGNITION COIL CLAMPING SCREW
    WASHER, IGNITION COIL CLAMPING SCREW
  • 63
    54-22740 CLIP, LEAD WIRE TO IGNITION COIL
    CLIP, LEAD WIRE TO IGNITION COIL
  • 64
    8M0084613 "D" WASHER, IGNITION COIL CLAMPING SCREW
    "D" WASHER, IGNITION COIL CLAMPING SCREW
  • 65
    11-8267086 NUT, IGNITION COIL CLAMPING SCREW
    NUT, IGNITION COIL CLAMPING SCREW
  • 66
    10-69026 SCREW, IGNITION COIL TO BOTTOM COWL (7/8")
    SCREW, IGNITION COIL TO BOTTOM COWL (7/8")
  • 67
    13-26992 LOCKWASHER, IGNITION COIL SCREW
    LOCKWASHER, IGNITION COIL SCREW
  • 68
    10-37561 SCREW, IGNITION COIL TO BOTTOM COWL
    SCREW, IGNITION COIL TO BOTTOM COWL
  • 69
    11-20184 NUT, IGNITION COIL SCREW
    NUT, IGNITION COIL SCREW
  • 70
    10-45218 SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")
    SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")
  • 71
    269011 BUMPER, IGNITION COIL
    BUMPER, IGNITION COIL

Все узлы модели:
