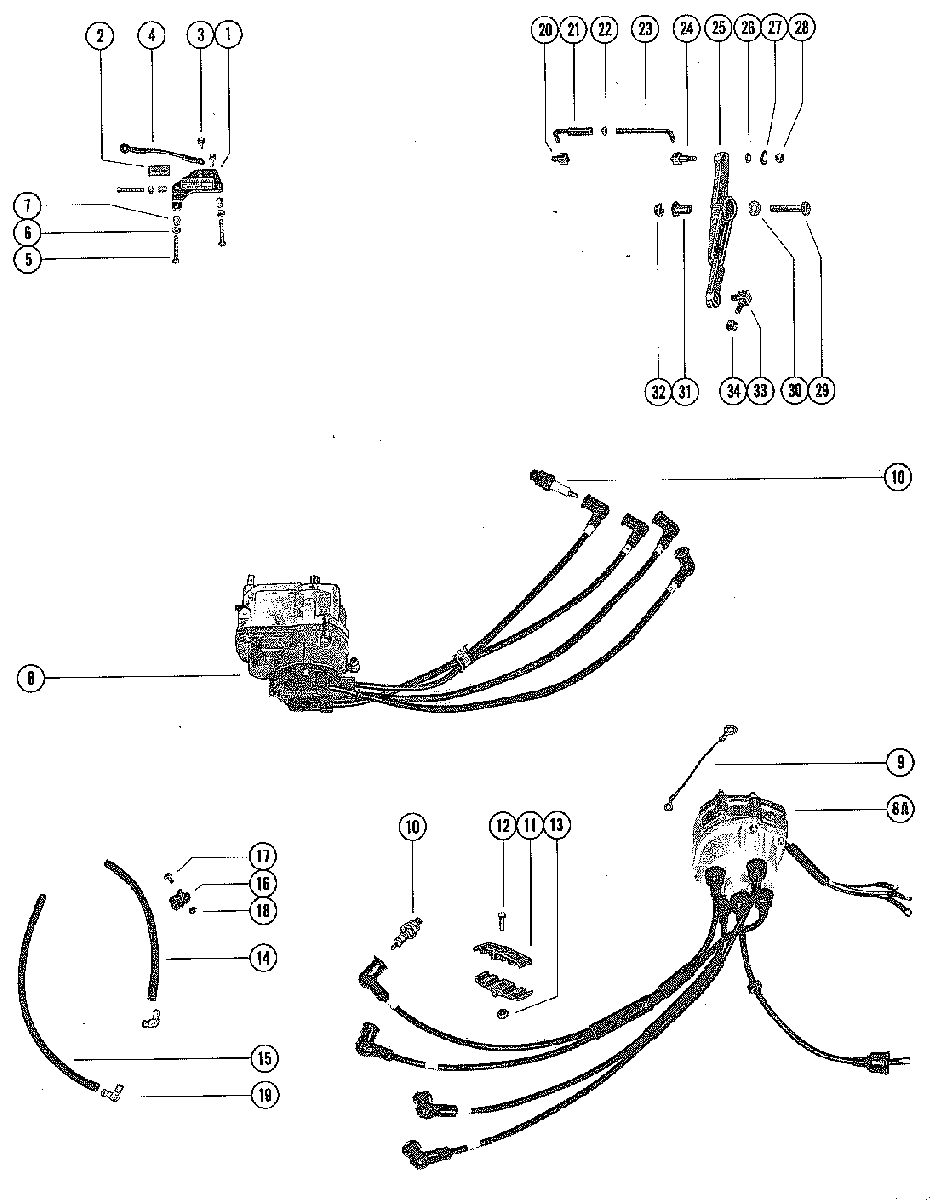

IGNITION DRIVER AND DISTRIBUTOR VERTICAL LINKAGE AND EXTERNA для Mercury - 650 (4 CYL.) 2309311 THRU 2803561
-
№АртикулНазвание
-
153458 PLATE, THROTTLE STOP
SERIAL )2446775-09999999PLATE, THROTTLE STOP
SERIAL )2446775-09999999 -
146251 PLATE, THROTTLE STOPPLATE, THROTTLE STOP
-
223-48456 SPACER, THROTTLE PLATE TO ADAPTOR
SERIAL )2446775-09999999SPACER, THROTTLE PLATE TO ADAPTOR
SERIAL )2446775-09999999 -
310-28668 SCREW, THROTTLE STOP PLATE TO ADAPTOR (7/8")
SERIAL )2446775-09999999SCREW, THROTTLE STOP PLATE TO ADAPTOR (7/8")
SERIAL )2446775-09999999 -
310-29282 SCREW, THROTTLE STOP PLATE TO ADAPTOR (3/4")SCREW, THROTTLE STOP PLATE TO ADAPTOR (3/4")
-
437747 GROUND STRAP, STOP BRACKET TO FRONT SUPPORT BRACKETGROUND STRAP, STOP BRACKET TO FRONT SUPPORT BRACKET
-
510-24933 SCREW, ADJUSTING - THROTTLE STOP (1-1/2")
SERIAL )2446775-09999999SCREW, ADJUSTING - THROTTLE STOP (1-1/2")
SERIAL )2446775-09999999 -
510-21504 SCREW, ADJUSTING - THROTTLE STOP (1-1/4")SCREW, ADJUSTING - THROTTLE STOP (1-1/4")
-
611-20013 NUT, THROTTLE STOP ADJUSTING SCREW
SERIAL )2446775-09999999NUT, THROTTLE STOP ADJUSTING SCREW
SERIAL )2446775-09999999 -
625-46252 GROMMET, THROTTLE STOP ADJUSTING SCREW (NOT AS SHOWN)GROMMET, THROTTLE STOP ADJUSTING SCREW (NOT AS SHOWN)
-
726852 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
8333-4674A3 IGNITION DRIVER ASSY, COMPLETE (SEE PG. 10 FOR BREAKDOWN)
SERIAL )2446775-09999999IGNITION DRIVER ASSY, COMPLETE (SEE PG. 10 FOR BREAKDOWN)
SERIAL )2446775-09999999 -
8A393-2799A19 DISTRIBUTOR ASSY, COMPLETE (SEE PG. 11 FOR BREAKDOWN)DISTRIBUTOR ASSY, COMPLETE (SEE PG. 11 FOR BREAKDOWN)
-
930109 GROUND ASSEMBLY, DISTRIBUTOR TO CRANKCASEGROUND ASSEMBLY, DISTRIBUTOR TO CRANKCASE
-
1033-97180Q SPARK PLUG (CHAMPION - L19V)SPARK PLUG (CHAMPION - L19V)
-
1163319 RETAINER, HIGH TENSION LEADSRETAINER, HIGH TENSION LEADS
-
1210-46378 SCREW, HIGH TENSION LEAD RETAINER (1")SCREW, HIGH TENSION LEAD RETAINER (1")
-
1311-20013 NUT, HIGH TENSION LEAD RETAINER SCREWNUT, HIGH TENSION LEAD RETAINER SCREW
-
1432-8M0108355 HOSE, VENT - DISTRIBUTOR AND IGNITION DRIVER TO ELBOW (11")HOSE, VENT - DISTRIBUTOR AND IGNITION DRIVER TO ELBOW (11")
-
1532-8M0108355 HOSE, VENT - DISTRIBUTOR AND IGNITION DRIVER TO ELBOW (15")HOSE, VENT - DISTRIBUTOR AND IGNITION DRIVER TO ELBOW (15")
-
1654-49218 CLAMP, VENT HOSE TO FRONT SUPORT BRACKET
SERIAL )2446775-09999999CLAMP, VENT HOSE TO FRONT SUPORT BRACKET
SERIAL )2446775-09999999 -
1710-21722 SCREW, VENT HOSE CLAMP (5/8")
SERIAL )2446775-09999999SCREW, VENT HOSE CLAMP (5/8")
SERIAL )2446775-09999999 -
1710-49997 SCREW, VENT HOSE CLAMP (5/8")SCREW, VENT HOSE CLAMP (5/8")
-
1811-20184 NUT, VENT HOSE CLAMP SCREW
SERIAL )2446775-09999999NUT, VENT HOSE CLAMP SCREW
SERIAL )2446775-09999999 -
1654-22875 CLAMP, VENT HOSE TO FRONT SUPPORT BRACKETCLAMP, VENT HOSE TO FRONT SUPPORT BRACKET
-
1710-29072 SCREW, VENT HOSE CLAMPSCREW, VENT HOSE CLAMP
-
1811-24656 NUT, CLAMP FASTENING SCREWNUT, CLAMP FASTENING SCREW
-
--8M0084613 "D" WASHER, CLAMP FASTENING SCREW"D" WASHER, CLAMP FASTENING SCREW
-
1922-31521 ELBOW, VENT HOSE TO BOTTOM COWLELBOW, VENT HOSE TO BOTTOM COWL
-
2027947 SWIVEL, LINKAGE - ECONOMIZER COLLARSWIVEL, LINKAGE - ECONOMIZER COLLAR
-
2125996A1 SWIVEL AND LINK ROD ASSEMBLYSWIVEL AND LINK ROD ASSEMBLY
-
2211-25168 NUT, UPPER LINK ROD ADJUSTINGNUT, UPPER LINK ROD ADJUSTING
-
2337588 ROD, LINK - UPPERROD, LINK - UPPER
-
2427948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVERSWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
-
2548562 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
2612-29245 WASHER, THROTTLE CONTROL LEVER SWIVELWASHER, THROTTLE CONTROL LEVER SWIVEL
-
2713-25806 WASHER, WAVE - THROTTLE CONTROL LEVER SWIVELWASHER, WAVE - THROTTLE CONTROL LEVER SWIVEL
-
2811-8267089 NUT, UPPER UPPER LINK ROD TO THROTTLE CONTROL LEVERNUT, UPPER UPPER LINK ROD TO THROTTLE CONTROL LEVER
-
2910-31830 SCREW, THROTTLE LEVER TO EXHAUST COVER (1-3/4")SCREW, THROTTLE LEVER TO EXHAUST COVER (1-3/4")
-
3012-8M0042641 WASHER, THROTTLE CONTROL LEVER SCREWWASHER, THROTTLE CONTROL LEVER SCREW
-
3123-45818 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
3211-8M0042636 NUT, THROTTLE CONTROL LEVER SCREWNUT, THROTTLE CONTROL LEVER SCREW
-
3337587 SWIVEL, LOWER - THROTTLE CTRL LEVER TO THROTTLE CABLESWIVEL, LOWER - THROTTLE CTRL LEVER TO THROTTLE CABLE
-
3411-8267089 NUT, THROTTLE CABLE TO LOWER SWIVELNUT, THROTTLE CABLE TO LOWER SWIVEL
