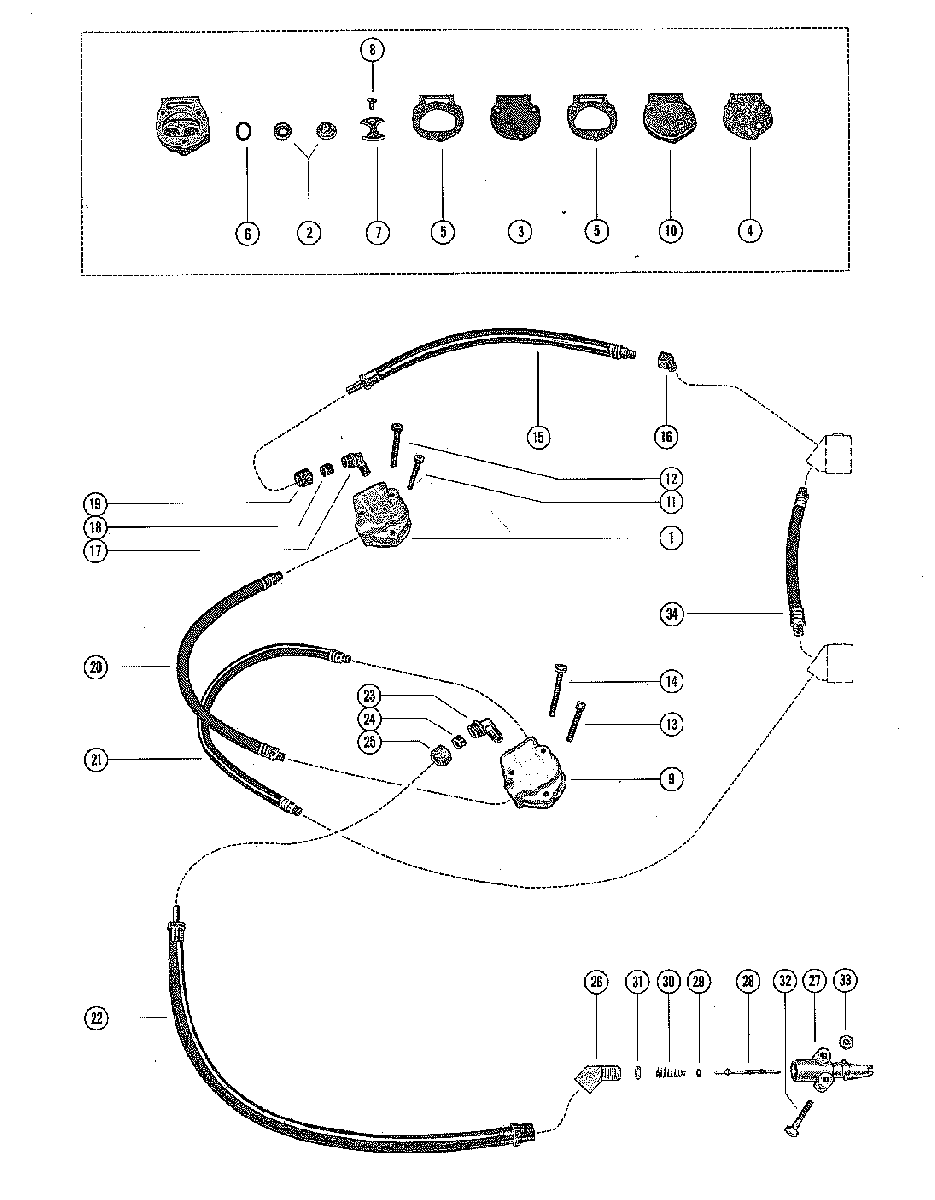

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 650 (4 CYL.) 2309311 THRU 2803561
-
№АртикулНазвание
-
130269A2 FUEL PUMP ASSEMBLY-UPPERFUEL PUMP ASSEMBLY-UPPER
-
156677A6 FUEL PUMP ASSEMBLY-UPPERFUEL PUMP ASSEMBLY-UPPER
-
221-30430A1 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
323014A1 DIAPHRAGM KITDIAPHRAGM KIT
-
490-8M0143356 GASKET, FUEL PUMP COVERGASKET, FUEL PUMP COVER
-
590-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
690-8M0143356 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
723004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
810-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
930461A2 FUEL PUMP ASSEMBLY-LOWERFUEL PUMP ASSEMBLY-LOWER
-
221-30430A1 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
323014A1 DIAPHRAGM KITDIAPHRAGM KIT
-
490-8M0143356 GASKET, FUEL PUMP COVERGASKET, FUEL PUMP COVER
-
590-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
690-8M0143356 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
723004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
810-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
1030275 COVER, FUEL PUMPCOVER, FUEL PUMP
-
1110-29878 SCREW, PUMP MOUNTING (1-1/2")-UPPER PUMPSCREW, PUMP MOUNTING (1-1/2")-UPPER PUMP
-
1210-30274 SCREW, PUMP MOUNTING (1-3/4")-UPPER PUMPSCREW, PUMP MOUNTING (1-3/4")-UPPER PUMP
-
1110-73013 SCREW, PUMP MOUNTING (1-1/2")-UPPER PUMPSCREW, PUMP MOUNTING (1-1/2")-UPPER PUMP
-
1210-30273 SCREW, PUMP MOUNTING (1-7/8")-UPPER PUMPSCREW, PUMP MOUNTING (1-7/8")-UPPER PUMP
-
1310-73013 SCREW, PUMP MOUNTING (1-1/2")-LOWER PUMPSCREW, PUMP MOUNTING (1-1/2")-LOWER PUMP
-
1410-30273 SCREW, PUMP MOUNTING (1-7/8")-LOWER PUMPSCREW, PUMP MOUNTING (1-7/8")-LOWER PUMP
-
1532-33154A1 FUEL LINE ASS'Y, PUMP TO CARBURETOR (13-1/2") (#32-33154A1)FUEL LINE ASS'Y, PUMP TO CARBURETOR (13-1/2") (#32-33154A1)
-
1622-8M0123050 ELBOW (45), UPPER CARBURETORELBOW (45), UPPER CARBURETOR
-
1722-30174 ELBOW, UPPER FUEL PUMP OUTLETELBOW, UPPER FUEL PUMP OUTLET
-
1822-30175 SLEEVE, FUEL PUMP OUTLET ELBOWSLEEVE, FUEL PUMP OUTLET ELBOW
-
1922-30177 NUT, FUEL PUMP OUTLET ELBOWNUT, FUEL PUMP OUTLET ELBOW
-
2032-31552A1 FUEL LINE ASS'Y, PUMP TO PUMP (12-3/8") (#32-31552A1)FUEL LINE ASS'Y, PUMP TO PUMP (12-3/8") (#32-31552A1)
-
2132-31553A1 FUEL LINE ASS'Y, PUMP TO CARBURETOR (19-3/4") (#32-31553A1)FUEL LINE ASS'Y, PUMP TO CARBURETOR (19-3/4") (#32-31553A1)
-
2232-30176 FUEL LINE, ADAPTOR TO LOWER FUEL PUMP INLET (18")FUEL LINE, ADAPTOR TO LOWER FUEL PUMP INLET (18")
-
2322-30174 ELBOW, LOWER FUEL PUMP INLETELBOW, LOWER FUEL PUMP INLET
-
2422-30175 SLEEVE, FUEL PUMP INLET ELBOWSLEEVE, FUEL PUMP INLET ELBOW
-
2522-30177 NUT, FUEL PUMP INLET ELBOWNUT, FUEL PUMP INLET ELBOW
-
2622-37682 ELBOW, FUEL LINE TO ADAPTORELBOW, FUEL LINE TO ADAPTOR
-
2730186 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
2830185Q3 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2925-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
3024-30189 SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
3130188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
3210-37561 SCREW, ADAPTOR TO BOTTOM COWL (2-1/2")SCREW, ADAPTOR TO BOTTOM COWL (2-1/2")
-
3210-69029 SCREW, ADAPTOR TO BOTTOM COWL (1-3/4")SCREW, ADAPTOR TO BOTTOM COWL (1-3/4")
-
3311-20184 NUT, ADAPTOR FASTENING SCREWNUT, ADAPTOR FASTENING SCREW
-
3432-31550A1 FUEL LINE ASS'Y, UPPER TO LOWER CARBURETOR (6") (#32-31550A1)FUEL LINE ASS'Y, UPPER TO LOWER CARBURETOR (6") (#32-31550A1)
