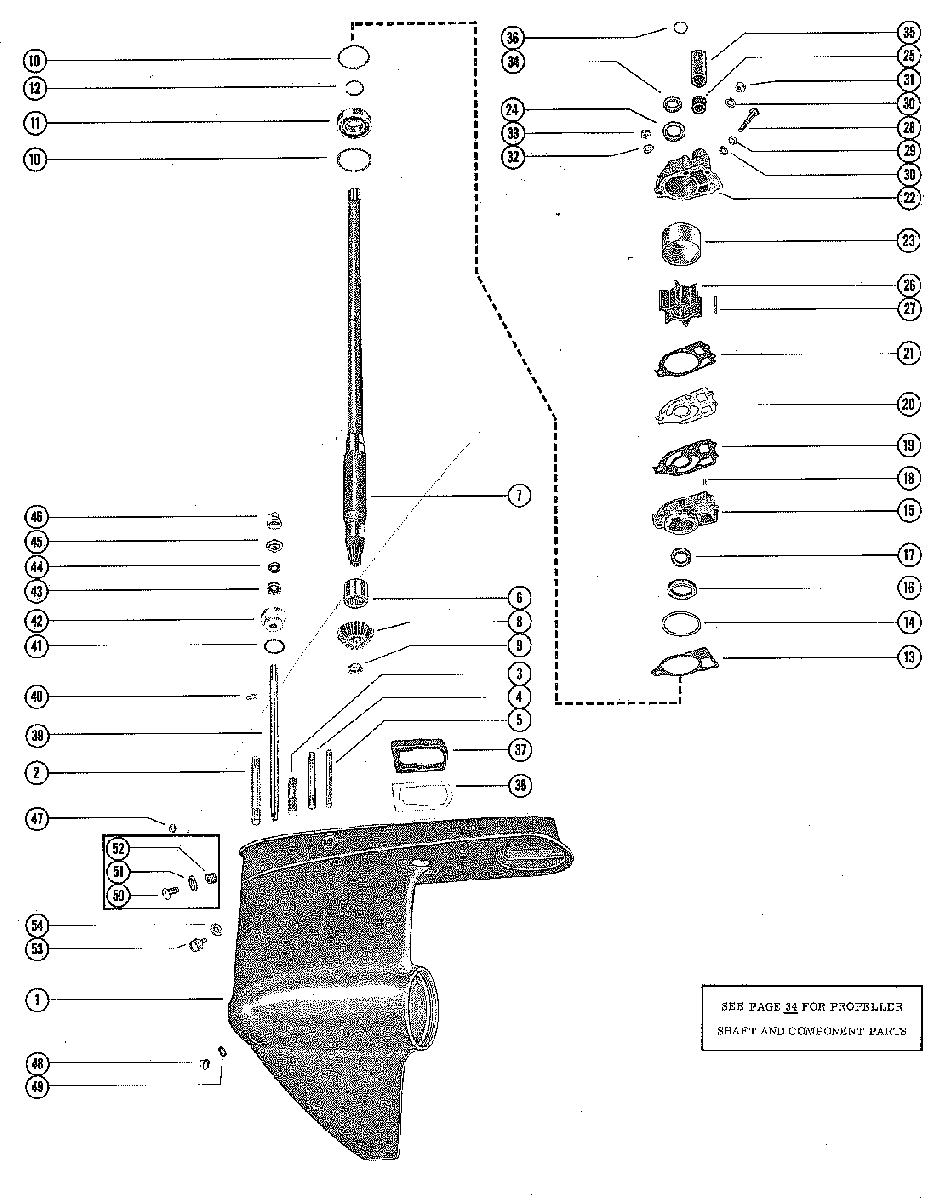

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 650 (4 CYL.) 2309311 THRU 2803561

  • №
    Артикул
    Название
  • -
    1623-3912A8 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    SEE NOTE BELOW
  • -
    1623-3912A9 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    SEE NOTE BELOW
  • -
    1623-3912A8 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    SEE NOTE BELOW
  • -
    1623-3912A9 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    SEE NOTE BELOW
  • 1
    1623-5244A14 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 1
    1623-5244A14 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    16-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
  • 3
    16-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2-1/16")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2-1/16")
  • 3
    16-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2-1/16")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2-1/16")
  • 4
    16-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-3/8")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-3/8")
  • 5
    16-57919 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-5/16")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3-5/16")
  • 6
    31-32898T BEARING, ROLLER-DRIVE SHAFT
    BEARING, ROLLER-DRIVE SHAFT
  • 7
    45-47433 DRIVE SHAFT (SHORT SHAFT)
    DRIVE SHAFT (SHORT SHAFT)
  • 7
    45-47434 DRIVE SHAFT (LONG SHAFT)
    DRIVE SHAFT (LONG SHAFT)
  • 8
    43-49751 GEAR, PINION-DRIVE SHAFT
    GEAR, PINION-DRIVE SHAFT
  • 8
    43-49751 GEAR, PINION-DRIVE SHAFT
    GEAR, PINION-DRIVE SHAFT
  • 9
    11-35921 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 10
    15-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)
  • 11
    30-63326T BEARING, BALL-DRIVE SHAFT
    BEARING, BALL-DRIVE SHAFT
  • 12
    53-30726 RING, RETAINING-BALL BEARING
    RING, RETAINING-BALL BEARING
  • 10
    15-30278A1 SHIM, WATER PUMP BASE TO GEAR HOUSING (.002-3-5-10)
    SHIM, WATER PUMP BASE TO GEAR HOUSING (.002-3-5-10)
  • 13
    27-32438 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 14
    25-30224 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 15
    46-48758A1 WATER PUMP BASE ASSEMBLY (ALUMINUM)
    WATER PUMP BASE ASSEMBLY (ALUMINUM)
  • 15
    46-48747A1 WATER PUMP BASE ASSEMBLY (PLASTIC)
    WATER PUMP BASE ASSEMBLY (PLASTIC)
  • 16
    26-94038 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 17
    26-16977 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 18
    17-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
  • 19
    27-8M0090319 GASKET, LOWER-WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER-WATER PUMP BASE TO FACE PLATE
  • 20
    324351 PLATE, FACE-WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE-WATER PUMP BASE TO WATER PUMP BODY
  • 21
    27-858524 GASKET, UPPER-FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER-FACE PLATE TO WATER PUMP BODY
  • 22
    46-96148A8 WATER PUMP BODY ASSEMBLY (ALUMINUM)
    WATER PUMP BODY ASSEMBLY (ALUMINUM)
  • 22
    46-96148T1 WATER PUMP BODY ASSEMBLY (PLASTIC)
    WATER PUMP BODY ASSEMBLY (PLASTIC)
  • 23
    30915 INSERT, WATER PUMP BODY (ALUMINUM)
    INSERT, WATER PUMP BODY (ALUMINUM)
  • 23
    48752T INSERT, WATER PUMP BODY (PLASTIC)
    INSERT, WATER PUMP BODY (PLASTIC)
  • 24
    26-16977 OIL SEAL, WATER PUMP BODY
    OIL SEAL, WATER PUMP BODY
  • 25
    26-38970 SEAL, RUBBER-WATER INLET TUBE
    SEAL, RUBBER-WATER INLET TUBE
  • 26
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 27
    17-8M0034466 PIN, IMPELLER DRIVE
    PIN, IMPELLER DRIVE
  • 28
    10-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (2-1/4")
    SCREW, WATER PUMP BODY TO GEAR HOUSING (2-1/4")
  • 30
    13-26992 LOCKWASHER, WATER PUMP BODY FSTNG SCREW&STUDS (1/4")
    LOCKWASHER, WATER PUMP BODY FSTNG SCREW&STUDS (1/4")
  • 31
    11-29598 NUT, WATER PUMP BODY FASTENING STUDS (1/4")
    NUT, WATER PUMP BODY FASTENING STUDS (1/4")
  • 32
    13-26993 LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16")
    LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16")
  • 33
    11-28770 NUT, WATER PUMP BODY FASTENING STUD (5/16")
    NUT, WATER PUMP BODY FASTENING STUD (5/16")
  • 29
    13-26992 LOCKWASHER, WATER PUMP BODY SCREW
    LOCKWASHER, WATER PUMP BODY SCREW
  • 30
    12-29245 WASHER, WATER PUMP BODY FASTENING SCREW AND STUD
    WASHER, WATER PUMP BODY FASTENING SCREW AND STUD
  • 31
    11-826709109 NUT, WATER PUMP BODY FASTENING STUD
    NUT, WATER PUMP BODY FASTENING STUD
  • 32
    12-36001 WASHER, WATER PUMP BODY FASTENING STUD
    WASHER, WATER PUMP BODY FASTENING STUD
  • 33
    11-826709111 NUT, WATER PUMP BODY FASTENING STUD
    NUT, WATER PUMP BODY FASTENING STUD
  • 34
    25-30271 RING, RUBBER-CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER-CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 35
    23-29804T SLEEVE, GUIDE-WATER INLET TUBE
    SLEEVE, GUIDE-WATER INLET TUBE
  • 36
    25-30613 "O" RING, UPPER-DRIVE SHAFT
    "O" RING, UPPER-DRIVE SHAFT
  • 37
    37641001 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
  • 38
    38051 PLATE, SUPPORT-EXHAUST TUBE SEAL
    PLATE, SUPPORT-EXHAUST TUBE SEAL
  • 39
    76062A1 SHAFT, SHIFT-LOWER
    SHAFT, SHIFT-LOWER
  • 40
    53-29641 CLIP, RETAINING-SHIFT SHAFT
    CLIP, RETAINING-SHIFT SHAFT
  • 41
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 42
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 43
    26-24590 OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
    OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
  • 43
    26-892361 OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
    OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
  • 44
    12-31266 WASHER, RUBBER-SHIFT SHAFT BUSHING
    WASHER, RUBBER-SHIFT SHAFT BUSHING
  • 45
    78036 SPACER, LOWER-REVERSE LOCKING
    SPACER, LOWER-REVERSE LOCKING
  • 46
    43308T1 CAM, REVERSE LOCKING
    CAM, REVERSE LOCKING
  • 47
    22-390721 PLUG, PIPE-SHIFT SHAFT GREASE FILLER HOLE
    PLUG, PIPE-SHIFT SHAFT GREASE FILLER HOLE
  • 48
    10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE
    SCREW, GREASE FILLER AND VENT HOLE
  • 49
    12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW
    WASHER, GREASE FILLER AND VENT HOLE SCREW
  • 50
    10-29608 SCREW, GEAR HOUSING FLUSHING HOLE (ALUMINUM)
    SCREW, GEAR HOUSING FLUSHING HOLE (ALUMINUM)
  • 51
    27-29586 GASKET, GEAR HOUSING FLUSHING HOLE SCREW (ALUMINUM)
    GASKET, GEAR HOUSING FLUSHING HOLE SCREW (ALUMINUM)
  • 52
    26-29612 SEAL, GEAR HOUSING FLUSHING HOLE (ALUMINUM)
    SEAL, GEAR HOUSING FLUSHING HOLE (ALUMINUM)
  • 53
    19-48750 PLUG, GEAR HOUSING FLUSHING HOLE (PLASTIC)
    PLUG, GEAR HOUSING FLUSHING HOLE (PLASTIC)
  • 54
    12-49221 WASHER, GEAR HOUSING FLUSHING HOLE PLUG (PLASTIC)
    WASHER, GEAR HOUSING FLUSHING HOLE PLUG (PLASTIC)
