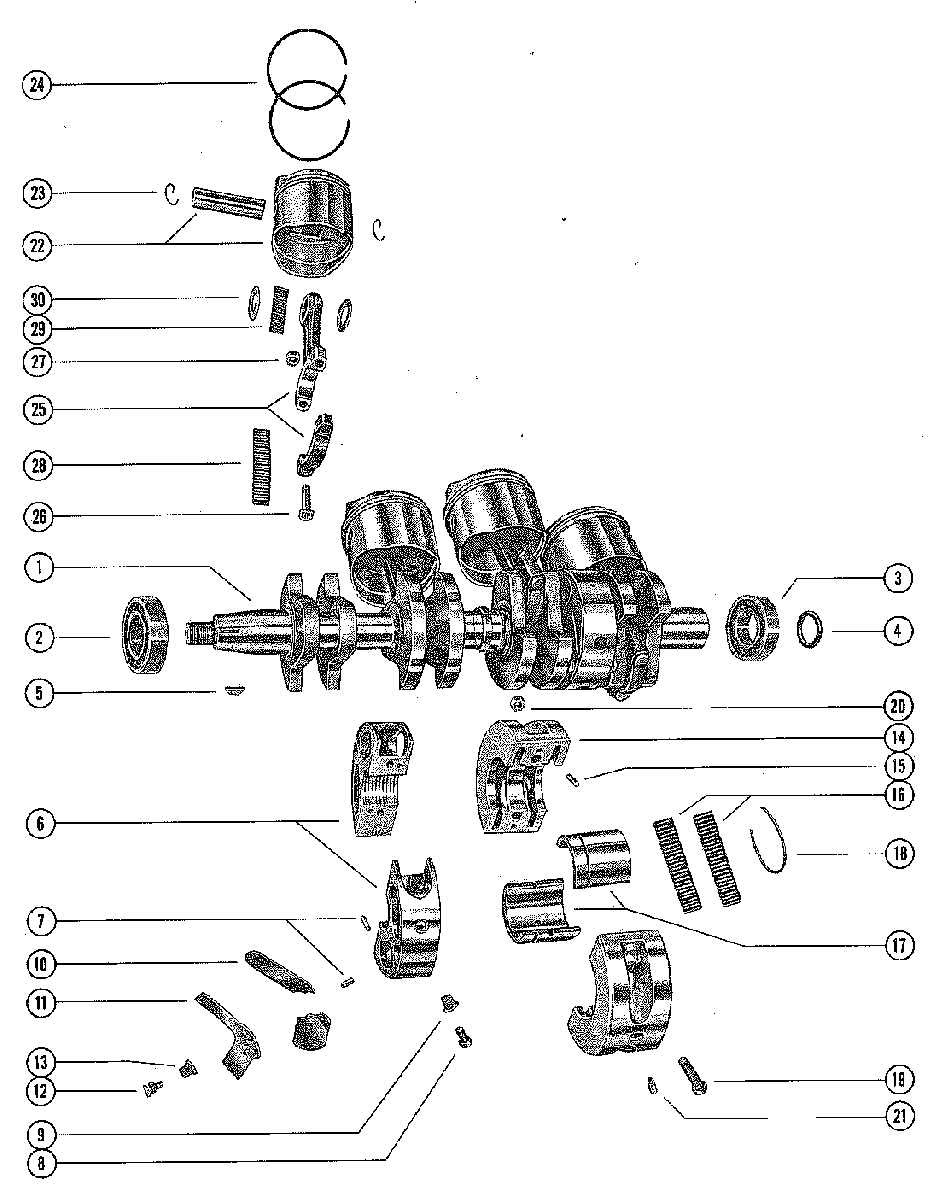

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 650 (4 CYL.) 2309311 THRU 2803561

  • №
    Артикул
    Название
  • 1
    418-3249A3 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-62567T BEARING, BALL- UPPER
    BEARING, BALL- UPPER
  • 3
    30-63742T BEARING, BALL- LOWER
    BEARING, BALL- LOWER
  • 4
    25-30613 "O" RING, DRIVE SHAFT SPLINE
    "O" RING, DRIVE SHAFT SPLINE
  • 5
    28-45554 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 6
    533-2761A5 MAIN BEARING ASSEMBLY (VALVE TYPE)
    MAIN BEARING ASSEMBLY (VALVE TYPE)
  • 7
    17-20032 DOWEL PIN, MAIN BEARING
    DOWEL PIN, MAIN BEARING
  • 8
    10-45775 SCREW, MAIN BEARING CLAMPING
    SCREW, MAIN BEARING CLAMPING
  • 9
    11-45774 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 10
    34-45506A1 REED SET, MATCHED-MAIN BEARING
    REED SET, MATCHED-MAIN BEARING
  • 11
    34-64632 REED STOP, MAIN BEARING REED VALVES
    REED STOP, MAIN BEARING REED VALVES
  • 12
    10-77280 SCREW, REED STOP MOUNTING
    SCREW, REED STOP MOUNTING
  • 13
    11-29469 NUT, REED STOP MOUNTING SCREW
    NUT, REED STOP MOUNTING SCREW
  • 14
    531-1884A3 CENTER MAIN BEARING ASSEMBLY
    CENTER MAIN BEARING ASSEMBLY
  • 15
    17-20032 DOWEL PIN, CENTER MAIN BEARING
    DOWEL PIN, CENTER MAIN BEARING
  • 16
    29-714221 BEARING, NEEDLE
    BEARING, NEEDLE
  • 17
    26113T RACE, OUTER (PAIR)
    RACE, OUTER (PAIR)
  • 18
    53-26933 RING, SNAP-OUTER RACE CLAMPING
    RING, SNAP-OUTER RACE CLAMPING
  • 19
    10-22968 SCREW, CENTER MAIN BEARING CLAMPING
    SCREW, CENTER MAIN BEARING CLAMPING
  • 20
    11-20184 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 21
    17-31245 DOWEL PIN (STEPPED)
    DOWEL PIN (STEPPED)
  • 22
    739-3284A2 PISTON AND PISTON PIN ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY
  • 23
    40-45740 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 24
    39-45153A12 RING, PISTON
    RING, PISTON
  • 25
    617-2768A3 CONNECTING ROD AND CAP ASSEMBLY
    CONNECTING ROD AND CAP ASSEMBLY
  • 26
    10-54803 SCREW, CAP TO CONNECTING ROD
    SCREW, CAP TO CONNECTING ROD
  • 27
    11-20061 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 28
    29-47897 BEARING, NEEDLE-CRANKPIN
    BEARING, NEEDLE-CRANKPIN
  • 29
    29-39656 BEARING, NEEDLE-PISTON PIN
    BEARING, NEEDLE-PISTON PIN
  • 30
    12-45741 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • --
    739-3380A2 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZED)
    PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZED)
  • --
    39-45205A12 RING, PISTON (.015 OVERSIZED)
    RING, PISTON (.015 OVERSIZED)
