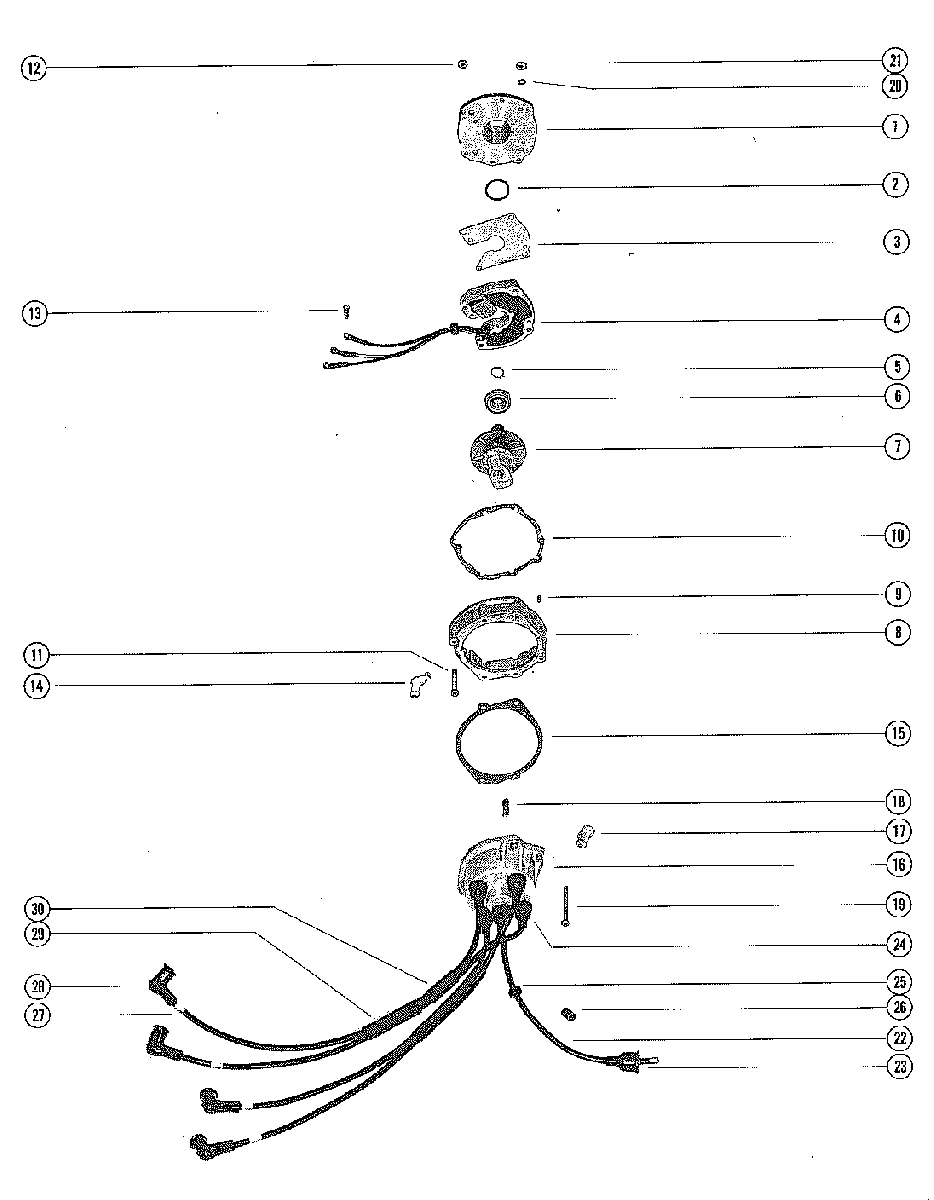

DISTRIBUTOR ASSEMBLY, COMPLETE для Mercury - 650 (4 CYL.) 2309311 THRU 2803561

  • №
    Артикул
    Название
  • --
    393-2799A19 DISTRIBUTOR ASSEMBLY, COMPLETE
    DISTRIBUTOR ASSEMBLY, COMPLETE
  • 1
    393-2799A21 HOUSING ASSEMBLY, PRIMARY
    HOUSING ASSEMBLY, PRIMARY
  • 2
    13-26917 WASHER, WAVE - PRIMARY HOUSING
    WASHER, WAVE - PRIMARY HOUSING
  • 3
    393-2795 SHIM, TRIGGER HOUSING TO PRIMARY HOUSING
    SHIM, TRIGGER HOUSING TO PRIMARY HOUSING
  • 4
    393-2918A6 TRIGGER HOUSING ASSEMBLY
    TRIGGER HOUSING ASSEMBLY
  • 5
    53-45906 RING, RETAINER - ROTOR SHAFT BALL BEARING
    RING, RETAINER - ROTOR SHAFT BALL BEARING
  • 6
    30-26379 BEARING, BALL - ROTOR SHAFT
    BEARING, BALL - ROTOR SHAFT
  • 7
    393-3269A3 ROTOR SHAFT ASSEMBLY
    ROTOR SHAFT ASSEMBLY
  • 8
    393-3014A2 ADAPTOR ASSEMBLY, HOUSING TO DISTRIBUTOR CAP
    ADAPTOR ASSEMBLY, HOUSING TO DISTRIBUTOR CAP
  • 9
    17-20032 DOWEL PIN, ADAPTOR TO PRIMARY HOUSING
    DOWEL PIN, ADAPTOR TO PRIMARY HOUSING
  • 10
    27-46351 GASKET, ADAPTOR TO PRIMARY HOUSING
    GASKET, ADAPTOR TO PRIMARY HOUSING
  • 11
    10-32627 SCREW, ADAPTOR TO HOUSING
    SCREW, ADAPTOR TO HOUSING
  • 12
    11-46438 NUT, ADAPTOR TO HOUSING SCREW
    NUT, ADAPTOR TO HOUSING SCREW
  • 13
    10-38055 SCREW, SHIM/TRIGGER HOUSING TO PRIMARY HOUSING (5/8")
    SCREW, SHIM/TRIGGER HOUSING TO PRIMARY HOUSING (5/8")
  • 13
    10-45218 SCREW, SHIM/TRIGGER HOUSING TO PRIMARY HOUSING (3/8")
    SCREW, SHIM/TRIGGER HOUSING TO PRIMARY HOUSING (3/8")
  • 14
    22-31521A1 ELBOW ASSEMBLY, VENT HOSE - ADAPTOR HOUSING
    ELBOW ASSEMBLY, VENT HOSE - ADAPTOR HOUSING
  • 15
    27-36268 GASKET, DISTRIBUTOR CAP TO ADAPTOR
    GASKET, DISTRIBUTOR CAP TO ADAPTOR
  • 16
    393-2955A2 DISTRIBUTOR CAP ASSEMBLY
    DISTRIBUTOR CAP ASSEMBLY
  • 17
    22-31521 ELBOW, VENT HOSE - DISTRIBUTOR CAP
    ELBOW, VENT HOSE - DISTRIBUTOR CAP
  • 18
    393-1293A1 BRUSH AND SPRING ASSEMBLY
    BRUSH AND SPRING ASSEMBLY
  • 19
    10-60464 SCREW, DISTRIBUTOR CAP TO ADAPTOR TO HOUSING (2")
    SCREW, DISTRIBUTOR CAP TO ADAPTOR TO HOUSING (2")
  • 20
    12-89302 WASHER, DISTRIBUTOR CAP FASTENING SCREW
    WASHER, DISTRIBUTOR CAP FASTENING SCREW
  • 21
    11-46438 NUT, DISTRIBUTOR CAP FASTENING SCREW
    NUT, DISTRIBUTOR CAP FASTENING SCREW
  • 22
    84-821945A4 HIGH TENSION CABLE ASSEMBLY, DISTRIBUTOR TO COIL
    HIGH TENSION CABLE ASSEMBLY, DISTRIBUTOR TO COIL
  • --
    8M0084600 CONNECTOR, HIGH TENSION CABLE (CAP END)
    CONNECTOR, HIGH TENSION CABLE (CAP END)
  • 23
    332-2854T01 BOOT, HIGH TENSION CABLE TO COIL
    BOOT, HIGH TENSION CABLE TO COIL
  • 24
    85-94589 SLEEVE, HIGH TENSION CABLE
    SLEEVE, HIGH TENSION CABLE
  • 25
    25-26547 GROMMET, HIGH TENSION CABLE
    GROMMET, HIGH TENSION CABLE
  • 26
    32-46398 SLEEVE, HIGH TENSION CABLE
    SLEEVE, HIGH TENSION CABLE
  • 27
    84-813715A1 SPARK PLUG LEAD ASSEMBLY #1, #2, #3 AND #4
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
    SPARK PLUG LEAD ASSEMBLY #1, #2, #3 AND #4
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
  • --
    8M0084600 CONNECTOR, SPARK PLUG LEAD
    CONNECTOR, SPARK PLUG LEAD
  • 24
    85-94589 SLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR
    SLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR
  • 28
    85-63709A1 PROTECTOR, SPARK PLUG LEAD
    PROTECTOR, SPARK PLUG LEAD
  • 29
    32-46768 SLEEVE (LEADS 1, 2, 3, 4) - 6"
    SLEEVE (LEADS 1, 2, 3, 4) - 6"
  • 30
    32-46768 SLEEVE, HIGH TENSION LEAD (LEADS 1, 2, 3, 4)
    SLEEVE, HIGH TENSION LEAD (LEADS 1, 2, 3, 4)
