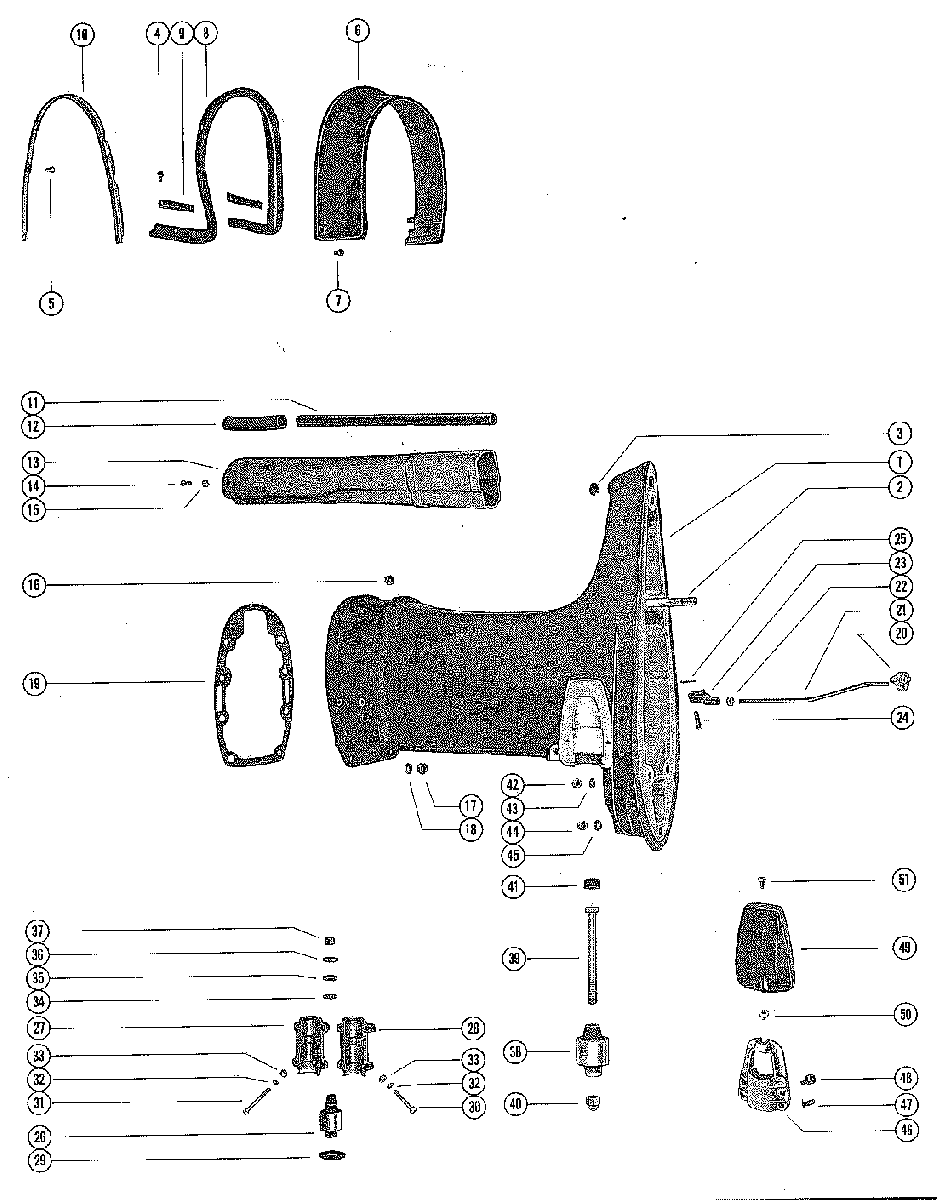

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 650 (4 CYL.) 2309311 THRU 2803561
-
№АртикулНазвание
-
11552-3911A3 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 00000000-02312935DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 00000000-02312935 -
11552-3911A3 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 02312936-09999999DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 02312936-09999999 -
11552-3911A3 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
-
11551-3918A3 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 00000000-02312935DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 00000000-02312935 -
11551-3918A3 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 02312936-09999999DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 02312936-09999999 -
11551-3918A3 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
216-47165 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2-3/4")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2-3/4")
-
216-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2-11/16")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2-11/16")
-
319-47579 PLUG, PLASTIC -TRIM TAB SCREW HOLEPLUG, PLASTIC -TRIM TAB SCREW HOLE
-
410-48409 CREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")CREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")
-
510-48408 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")
-
637417 COVER, TRIM-DRIVE SHAFT HOUSINGCOVER, TRIM-DRIVE SHAFT HOUSING
-
710-37571 SCREW, TRIM COVER TO BOTTOM COWL (1/2")SCREW, TRIM COVER TO BOTTOM COWL (1/2")
-
837919 SEAL, TRIM COVER TO DRIVE SHAFT HOUSINGSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
-
937665 STRIP, RETAINING-TRIM COVER SEAL (SIDE)STRIP, RETAINING-TRIM COVER SEAL (SIDE)
-
1038052 STRIP, RETAINING-TRIM COVER SEAL (REAR)STRIP, RETAINING-TRIM COVER SEAL (REAR)
-
1132-37446 TUBE, WATER INLET (SHORT SHAFT)TUBE, WATER INLET (SHORT SHAFT)
-
1132-37438 TUBE, WATER INLET (LONG SHAFT)TUBE, WATER INLET (LONG SHAFT)
-
1223-29591 SLEEVE, RUBBER-WATER INLET TUBESLEEVE, RUBBER-WATER INLET TUBE
-
1338469 TUBE, EXHAUST (SHORT SHAFT)TUBE, EXHAUST (SHORT SHAFT)
-
1338470 TUBE, EXHAUST (LONG SHAFT)TUBE, EXHAUST (LONG SHAFT)
-
1410-38601 SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE (5/8")SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE (5/8")
-
1511-35888 NUT, EXHAUST TUBE SCREWNUT, EXHAUST TUBE SCREW
-
1611-23161 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1711-8M0042636 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1812-20086 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
1927-38471 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
2052887 GUIDE, PUSH ROD-REVERSE LOCKINGGUIDE, PUSH ROD-REVERSE LOCKING
-
2052887 GUIDE, PUSH ROD-REVERSE LOCKINGGUIDE, PUSH ROD-REVERSE LOCKING
-
2147591 ROD, PUSH-REVERSE LOCK (SHORT SHAFT)ROD, PUSH-REVERSE LOCK (SHORT SHAFT)
-
2147558 ROD, PUSH-REVERSE LOCK (LONG SHAFT)ROD, PUSH-REVERSE LOCK (LONG SHAFT)
-
2211-69254 NUT, JAM-PUSH RODNUT, JAM-PUSH ROD
-
2347559 YOKE, PUSH RODYOKE, PUSH ROD
-
2424-78203A2 PIN, PUSH ROD TO REVERSE LOCKPIN, PUSH ROD TO REVERSE LOCK
-
2518-25191 COTTER PIN, PUSH ROD PINCOTTER PIN, PUSH ROD PIN
-
2637396 MOUNT, RUBBER-UPPERMOUNT, RUBBER-UPPER
-
2726218 COVER, UPPER MOUNT-OUTSIDE HALFCOVER, UPPER MOUNT-OUTSIDE HALF
-
2826217 COVER, UPPER MOUNT-INSIDE HALFCOVER, UPPER MOUNT-INSIDE HALF
-
2924929 PACKING, "U" CUPPACKING, "U" CUP
-
3010-20012 SCREW, UPPER MOUNT COVER (1-5/8")SCREW, UPPER MOUNT COVER (1-5/8")
-
3110-28775 SCREW, UPPER MOUNT COVER (2-1/8")SCREW, UPPER MOUNT COVER (2-1/8")
-
3212-29245 WASHER, UPPER MOUNT COVER SCREWWASHER, UPPER MOUNT COVER SCREW
-
3311-35888 NUT, UPPER MOUNT COVER SCREWNUT, UPPER MOUNT COVER SCREW
-
3412-30515 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
3512-47894 WASHER, RUBBER-UPPER MOUNT BOLTWASHER, RUBBER-UPPER MOUNT BOLT
-
3612-30514 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
3711-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
3837397 MOUNT, RUBBER-LOWERMOUNT, RUBBER-LOWER
-
3910-75284 SCREW, UPPER MOUNT (5-1/2")SCREW, UPPER MOUNT (5-1/2")
-
4011-25096 NUT, MOUNT SCREWNUT, MOUNT SCREW
-
4125067 BUMPER, RUBBER-MOUNTING SCREWBUMPER, RUBBER-MOUNTING SCREW
-
4211-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
4312-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
4411-29489 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
4512-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
4635608 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
4724-35522 SPRING, TENSION-LOWER MOUNT CLAMPSPRING, TENSION-LOWER MOUNT CLAMP
-
4810-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")
-
4935474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
5011-35521 NUT, MOUNT CLAMP COVERNUT, MOUNT CLAMP COVER
-
5110-29722 SCREW, COVER TO LOWER CLAMP MOUNTSCREW, COVER TO LOWER CLAMP MOUNT
