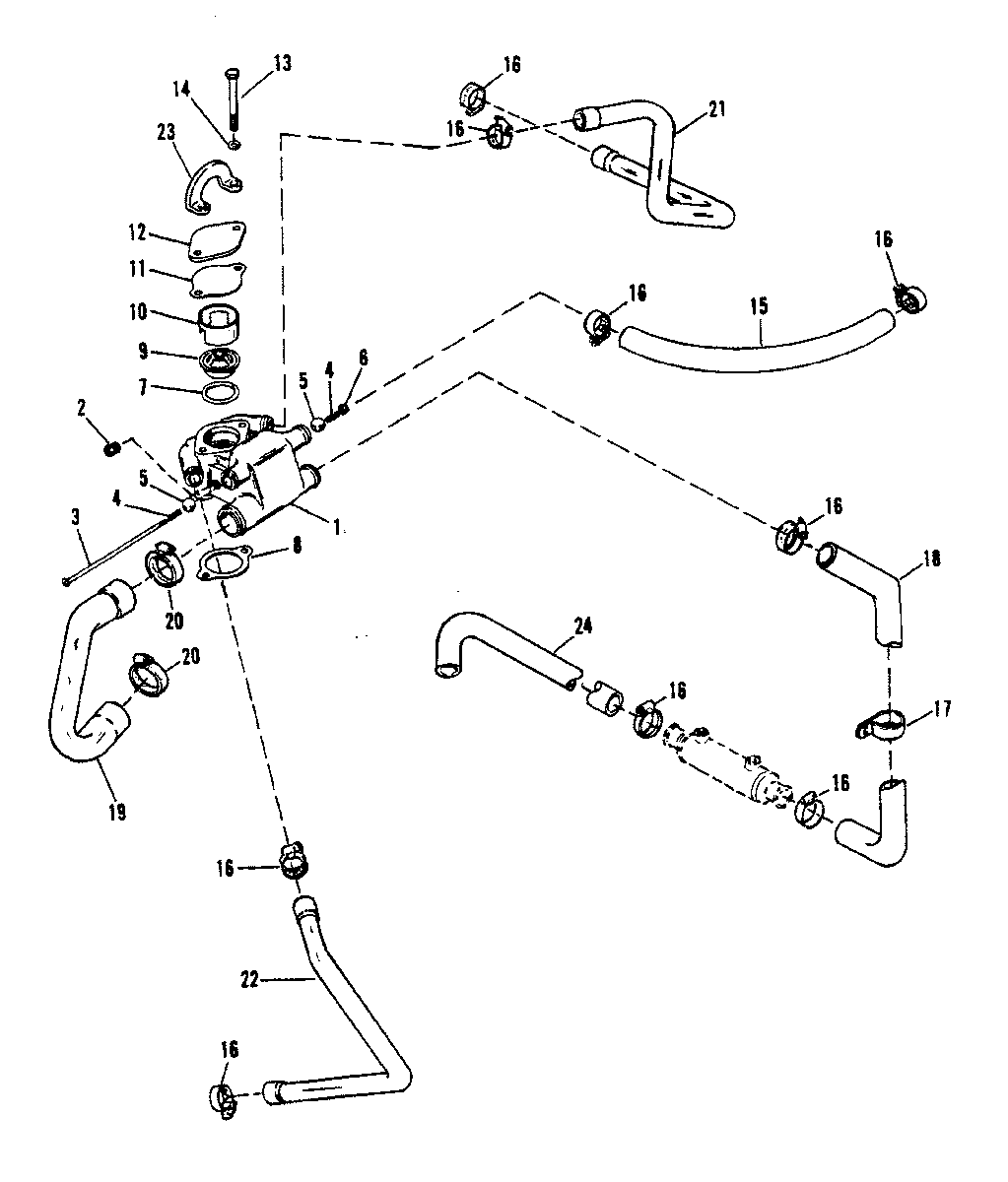

THERMOSTAT HOUSING(NEW DESIGN) для Mercruiser - 454 MAG. ALPHA GM 454 V-8 1986-1988 0A631894 THRU 0B785148

  • №
    Артикул
    Название
  • 1
    16413A3 THERMOSTAT HOUSING ASSEMBLY
    THERMOSTAT HOUSING ASSEMBLY
  • 2
    22-32803 PIPE PLUG
    PIPE PLUG
  • 3
    10-17989 SCREW
    SCREW
  • 4
    24-75533 SPRING
    SPRING
  • 5
    30-98475 NYLON BALL
    NYLON BALL
  • 6
    11-826709106 NUT
    NUT
  • 7
    25-30224 "O" RING
    "O" RING
  • 8
    27-530451 GASKET, THERMOSTAT HOUSING
    GASKET, THERMOSTAT HOUSING
  • 9
    8M0089715 THERMOSTAT (143 )
    THERMOSTAT (143 )
  • 10
    23-806922 SLEEVE, THERMOSTAT
    SLEEVE, THERMOSTAT
  • 11
    27-331792 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 12
    17494A1 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 13
    10-60410 SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD (4-1/4")
    SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD (4-1/4")
  • 14
    13-35048 LOCKWASHER, THERMOSTAT HOUSING SCREW
    LOCKWASHER, THERMOSTAT HOUSING SCREW
  • 15
    32-8M0062614 HOSE, TEE TO EXHAUST ELBOW (19")
    HOSE, TEE TO EXHAUST ELBOW (19")
  • 16
    54-815504220 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    54-47715 CLIP, HOSE
    CLIP, HOSE
  • 18
    32-16011 HOSE, OIL COOLER TO THERMOSTAT HOUSING
    HOSE, OIL COOLER TO THERMOSTAT HOUSING
  • 19
    32-897181 HOSE, THERMOSTAT HOUSING TO WATER PUMP
    HOSE, THERMOSTAT HOUSING TO WATER PUMP
  • 20
    54-815504232 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    32-89749 HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT)
    HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT)
  • 22
    32-897301 HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STBD.)
    HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STBD.)
  • 23
    12552 LIFTING EYE
    LIFTING EYE
  • 24
    32-96246A4 HOSE, OIL COOLER TO DRIVE UNIT
    HOSE, OIL COOLER TO DRIVE UNIT
  • -
    27-65184A88 ENGINE GASKET SET
    ENGINE GASKET SET
