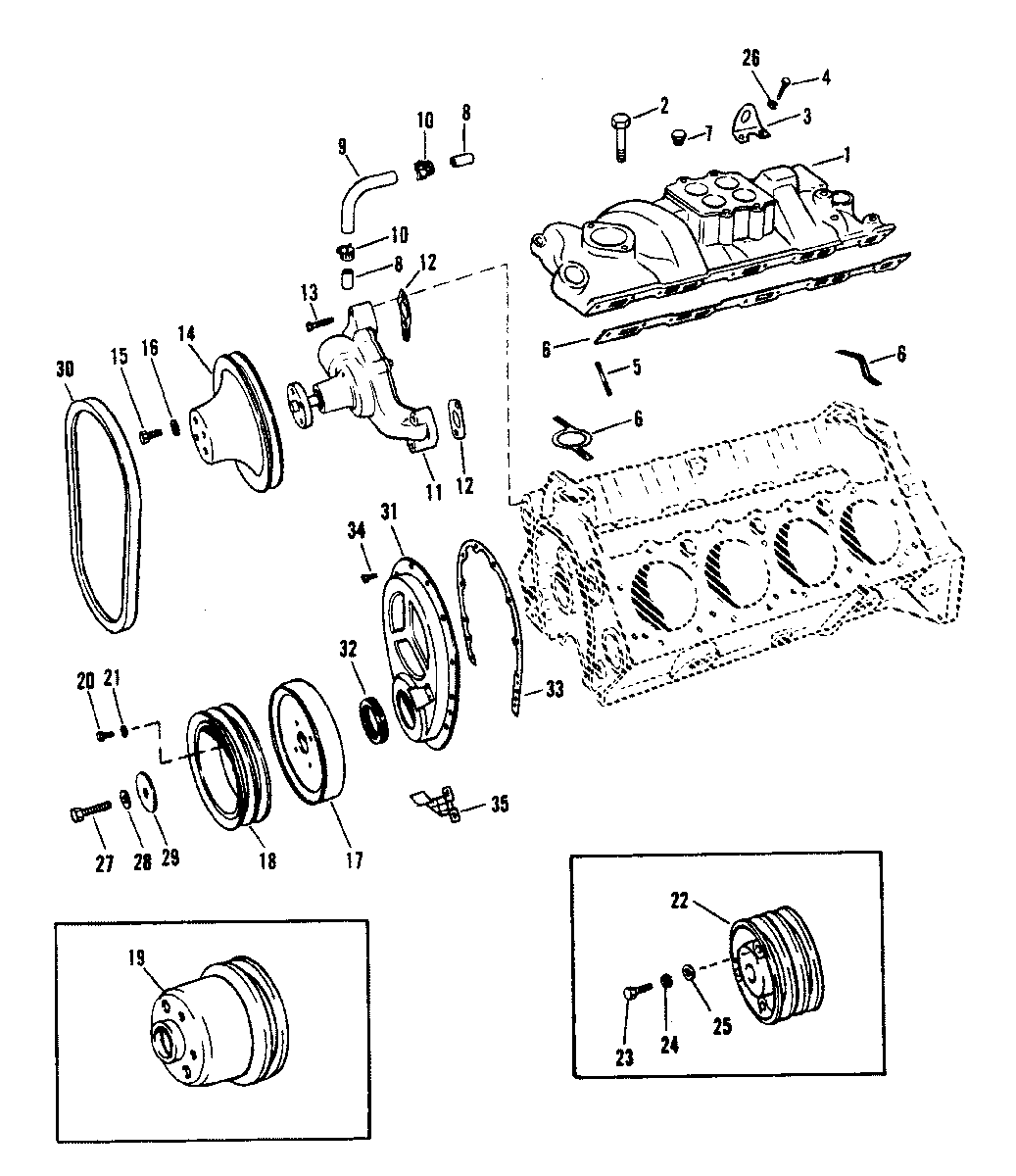

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 454 MAG. ALPHA GM 454 V-8 1986-1988 0A631894 THRU 0B785148

  • №
    Артикул
    Название
  • 1
    811575T INTAKE MANIFOLD
    INTAKE MANIFOLD
  • 2
    10-37510 BOLT, INTAKE MANIFOLD
    BOLT, INTAKE MANIFOLD
  • 3
    54-64628 EYE, LIFTING
    EYE, LIFTING
  • 4
    10-34354 SCREW, LIFTING EYE
    SCREW, LIFTING EYE
  • 5
    N.S.S. STUD, GUARD TO INTAKE MANIFOLD (GM #3959544)
    STUD, GUARD TO INTAKE MANIFOLD (GM #3959544)
  • 6
    27-8M0050224 GASKET SET, INTAKE MANIFOLD
    GASKET SET, INTAKE MANIFOLD
  • 7
    22-75983 PIPE PLUG, WATER PUMP/INTAKE MANIFOLD
    PIPE PLUG, WATER PUMP/INTAKE MANIFOLD
  • 8
    22-806242 CONNECTOR, INTAKE PUMP/INTAKE MANIFOLD
    CONNECTOR, INTAKE PUMP/INTAKE MANIFOLD
  • 9
    32-99520 HOSE, BY-PASS - WATER PUMP/INTAKE MANIFOLD
    HOSE, BY-PASS - WATER PUMP/INTAKE MANIFOLD
  • 10
    54-815504412 CLAMP, BY-PASS HOSE
    CLAMP, BY-PASS HOSE
  • 11
    46-8M0113735 WATER PUMP ASSEMBLY
    WATER PUMP ASSEMBLY
  • 12
    27-49110 GASKET, WATER PUMP MOUNTING
    GASKET, WATER PUMP MOUNTING
  • 13
    10-32132 SCREW, WATER PUMP TO CYLINDER BLOCK (1-3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK (1-3/4")
  • 14
    42799 PULLEY, WATER PUMP (2 GROOVE)
    PULLEY, WATER PUMP (2 GROOVE)
  • 14
    15120T PULLEY, WATER PUMP (3 GROOVE)
    PULLEY, WATER PUMP (3 GROOVE)
  • 15
    10-47277 SCREW, PULLEY TO WATER PUMP (3/4")
    SCREW, PULLEY TO WATER PUMP (3/4")
  • 16
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 17
    816729 BALANCER, HARMONIC - CRANKSHAFT
    BALANCER, HARMONIC - CRANKSHAFT
  • 18
    52181 PULLEY, CRANKSHAFT REF
    #18 IS STAMPED
    PULLEY, CRANKSHAFT REF
    #18 IS STAMPED
  • 19
    845524A1 PULLEY, POWER STEERING
    #18 IS STAMPED
    PULLEY, POWER STEERING
    #18 IS STAMPED
  • 20
    10-98556 BOLT, PULLEY (1-3/4")
    #18 IS STAMPED
    BOLT, PULLEY (1-3/4")
    #18 IS STAMPED
  • 21
    13-35048 LOCKWASHER, PULLEY BOLT
    #18 IS STAMPED
    LOCKWASHER, PULLEY BOLT
    #18 IS STAMPED
  • 22
    90081T PULLEY, CRANKSHAFT REF
    #22 IS CAST
    PULLEY, CRANKSHAFT REF
    #22 IS CAST
  • 23
    10-53734 BOLT, PULLEY (3")
    #22 IS CAST
    BOLT, PULLEY (3")
    #22 IS CAST
  • 24
    13-35048 LOCKWASHER, PULLEY BOLT
    #22 IS CAST
    LOCKWASHER, PULLEY BOLT
    #22 IS CAST
  • 25
    12-34714 WASHER, PULLEY BOLT
    #22 IS CAST
    WASHER, PULLEY BOLT
    #22 IS CAST
  • 26
    13-35048 LOCKWASHER, LIFTING EYE SCREW
    LOCKWASHER, LIFTING EYE SCREW
  • 27
    10-14758 BOLT, PULLEY AND HARMONIC BALANCER
    BOLT, PULLEY AND HARMONIC BALANCER
  • 28
    13-14759 LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
    LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 29
    12-49103 WASHER, PULLEY AND BALANCER BOLT
    WASHER, PULLEY AND BALANCER BOLT
  • 30
    57-78200Q1 BELT, ALTERNATOR DRIVE (47")
    BELT, ALTERNATOR DRIVE (47")
  • 31
    66215 COVER ASSEMBLY, CRANKCASE FRONT
    COVER ASSEMBLY, CRANKCASE FRONT
  • 32
    26-8219471 CRANKCASE FRONT COVER
    CRANKCASE FRONT COVER
  • 33
    27-54529 GASKET, CRANKCASE FRONT END COVER
    GASKET, CRANKCASE FRONT END COVER
  • 34
    10-8M0040582 SCREW, CRANKCASE AND FRONT END COVER
    SCREW, CRANKCASE AND FRONT END COVER
  • 35
    59966 POINTER, TIMING
    POINTER, TIMING
  • -
    27-65184A88 ENGINE GASKET SET - Overhaul
    ENGINE GASKET SET - Overhaul
