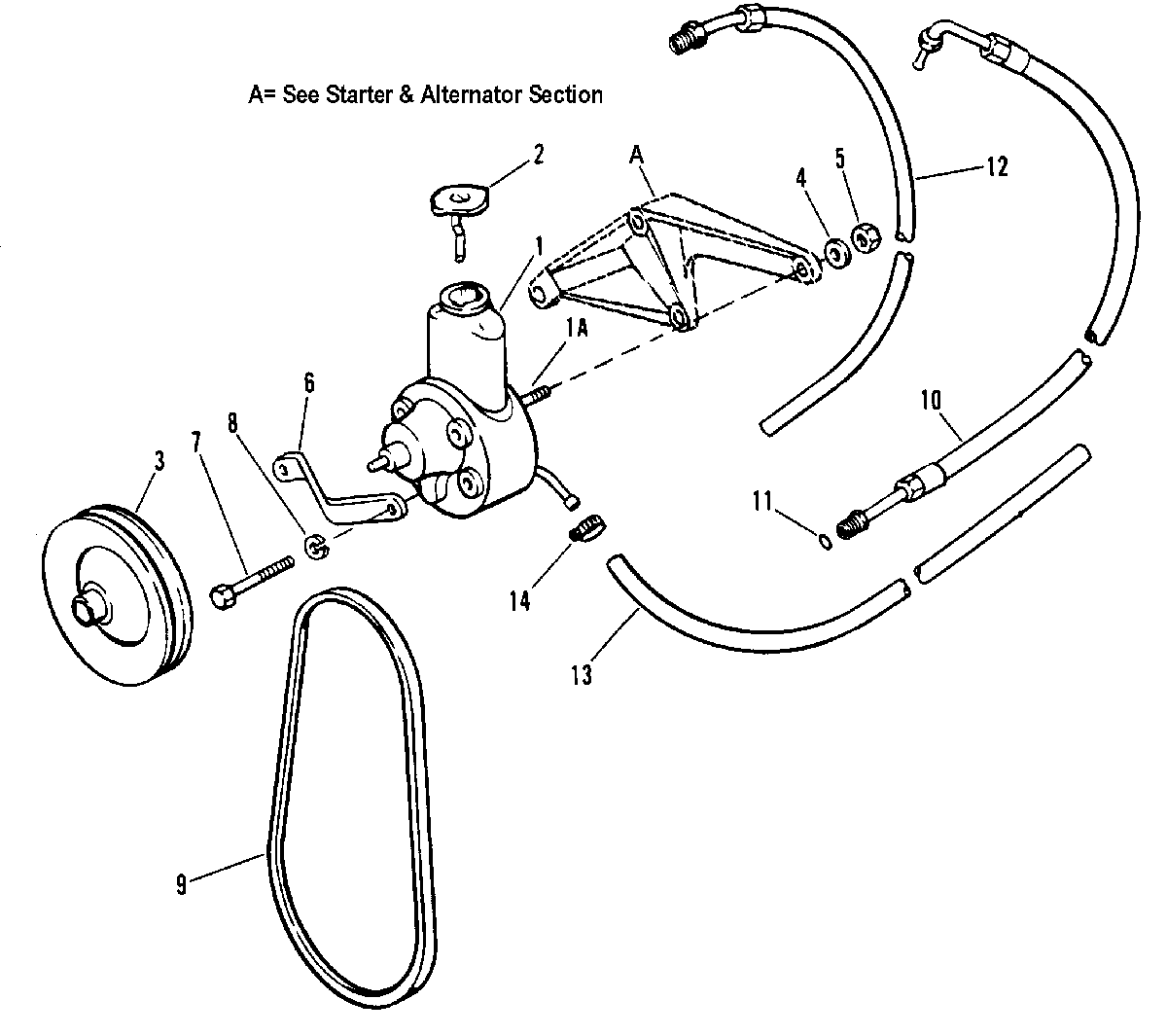

POWER STEERING COMPONENTS для Mercruiser - 454 MAG. ALPHA GM 454 V-8 1986-1988 0A631894 THRU 0B785148

  • №
    Артикул
    Название
  • 1
    16792A39 PUMP ASSEMBLY, POWER STEERING
    PUMP ASSEMBLY, POWER STEERING
  • 1A
    16-41877 STUD, POWER STEERING PUMP
    STUD, POWER STEERING PUMP
  • 2
    36-95805 CAP, POWER STEERING PUMP
    CAP, POWER STEERING PUMP
  • 3
    73873A1 PULLEY, POWER STEERING PUMP
    PULLEY, POWER STEERING PUMP
  • 4
    23-72057 SPACER, PUMP SCREW
    SPACER, PUMP SCREW
  • 5
    11-90517 NUT, MOUNTING STUD
    NUT, MOUNTING STUD
  • 6
    98813F1 BRACE, PUMP MOUNTING
    BRACE, PUMP MOUNTING
  • 7
    10-40001188 SCREW, PUMP MOUNTING BRACE
    SCREW, PUMP MOUNTING BRACE
  • 8
    13-400248 LOCKWASHER, BRACE SCREW
    LOCKWASHER, BRACE SCREW
  • 9
    57-96834Q V-BELT, POWER STEERING PUMP (50")
    V-BELT, POWER STEERING PUMP (50")
  • 9
    57-13458Q V-BELT, POWER STEERING PUMP (55")
    V-BELT, POWER STEERING PUMP (55")
  • 10
    32-90494 HOSE, PRESSURE (FITTINGS ON BOTH ENDS)
    HOSE, PRESSURE (FITTINGS ON BOTH ENDS)
  • 11
    25-89879 "O" RING, PRESSURE HOSE END
    "O" RING, PRESSURE HOSE END
  • 12
    32-9884339 HOSE, RETURN (FITTINGS ON ONE END)
    HOSE, RETURN (FITTINGS ON ONE END)
  • 13
    32-8M0062341 HOSE, PUMP TO OIL COOLER
    HOSE, PUMP TO OIL COOLER
  • 14
    54-815504206 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
