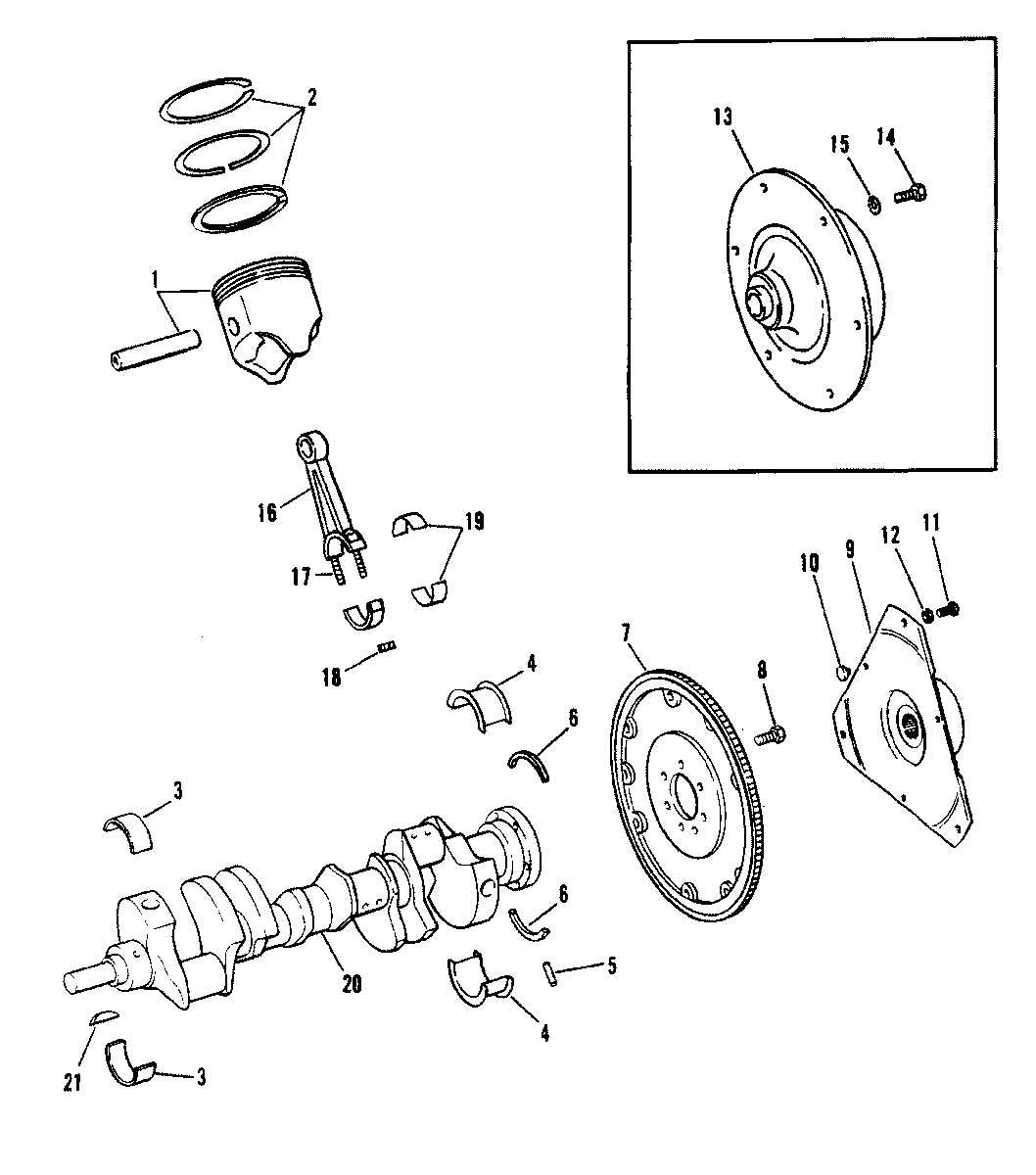

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercruiser - 454 MAG. ALPHA GM 454 V-8 1986-1988 0A631894 THRU 0B785148

  • №
    Артикул
    Название
  • 1
    737-879194035 PISTON AND PISTON PINS ASSEMBLY (STANDARD)
    PISTON AND PISTON PINS ASSEMBLY (STANDARD)
  • 2
    737-6615T1 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
  • 2
    39-67127 RING, PISTON (STANDARD)
    RING, PISTON (STANDARD)
  • 2
    39-67128 RING, PISTON (.030 O.S.)
    RING, PISTON (.030 O.S.)
  • 3
    23-818473001 BEARING UNIT, CRANKSHAFT (STANDARD)
    BEARING UNIT, CRANKSHAFT (STANDARD)
  • 3
    23-818474 BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
  • 3
    23-818475 BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
  • 3
    23-85724 BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
  • 3
    23-818477 BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
  • 4
    23-818473001 BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
  • 4
    23-818474 BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
  • 4
    23-818475 BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
  • 4
    23-818476001 BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
  • 4
    23-818477 BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
  • 5
    17-843378 PIN, DOWEL - REAR BEARING CAP (1/4" DIA.)
    PIN, DOWEL - REAR BEARING CAP (1/4" DIA.)
  • 6
    26-8M0062773 OIL SEAL, REAR BEARING CAP
    OIL SEAL, REAR BEARING CAP
  • 7
    200-8M0084209 FLYWHEEL
    FLYWHEEL
  • 8
    10-845757 SCREW, FLYWHEEL TO CRANKSHAFT
    SCREW, FLYWHEEL TO CRANKSHAFT
  • 9
    18643A7 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 10
    269011 RUBBER BUMPER (OLD DESIGN)
    RUBBER BUMPER (OLD DESIGN)
  • 10
    18644 RUBBER BUMPER (NEW DESIGN)
    RUBBER BUMPER (NEW DESIGN)
  • 11
    10-14883 SCREW, COUPLING
    SCREW, COUPLING
  • 12
    12-13510 WASHER, COUPLING SCREW
    WASHER, COUPLING SCREW
  • 13
    8M0098795 COUPLING ASSY
    ROUND
    COUPLING ASSY
    ROUND
  • 14
    10-37612 SCREW, COUPLING
    ROUND
    SCREW, COUPLING
    ROUND
  • 15
    12-20572 WASHER, COUPLING SCREW
    ROUND
    WASHER, COUPLING SCREW
    ROUND
  • 16
    614-8M0030663 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 17
    10-52192 BOLT, CONNECTING ROD ASSEMBLY
    BOLT, CONNECTING ROD ASSEMBLY
  • 18
    11-37493 NUT, CONNECTING ROD CAP BOLT
    NUT, CONNECTING ROD CAP BOLT
  • 19
    23-85726001 BEARING SET, CONNECTING ROD (STANDARD)
    BEARING SET, CONNECTING ROD (STANDARD)
  • 19
    23-85727 BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
  • 19
    23-85728 BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
  • 19
    23-85691 BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
  • 19
    23-85729 BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
  • 20
    429-6612 CRANKSHAFT
    CRANKSHAFT
  • 21
    28-34466 KEY, CRANKSHAFT PULLEY AND BALANCER
    KEY, CRANKSHAFT PULLEY AND BALANCER
