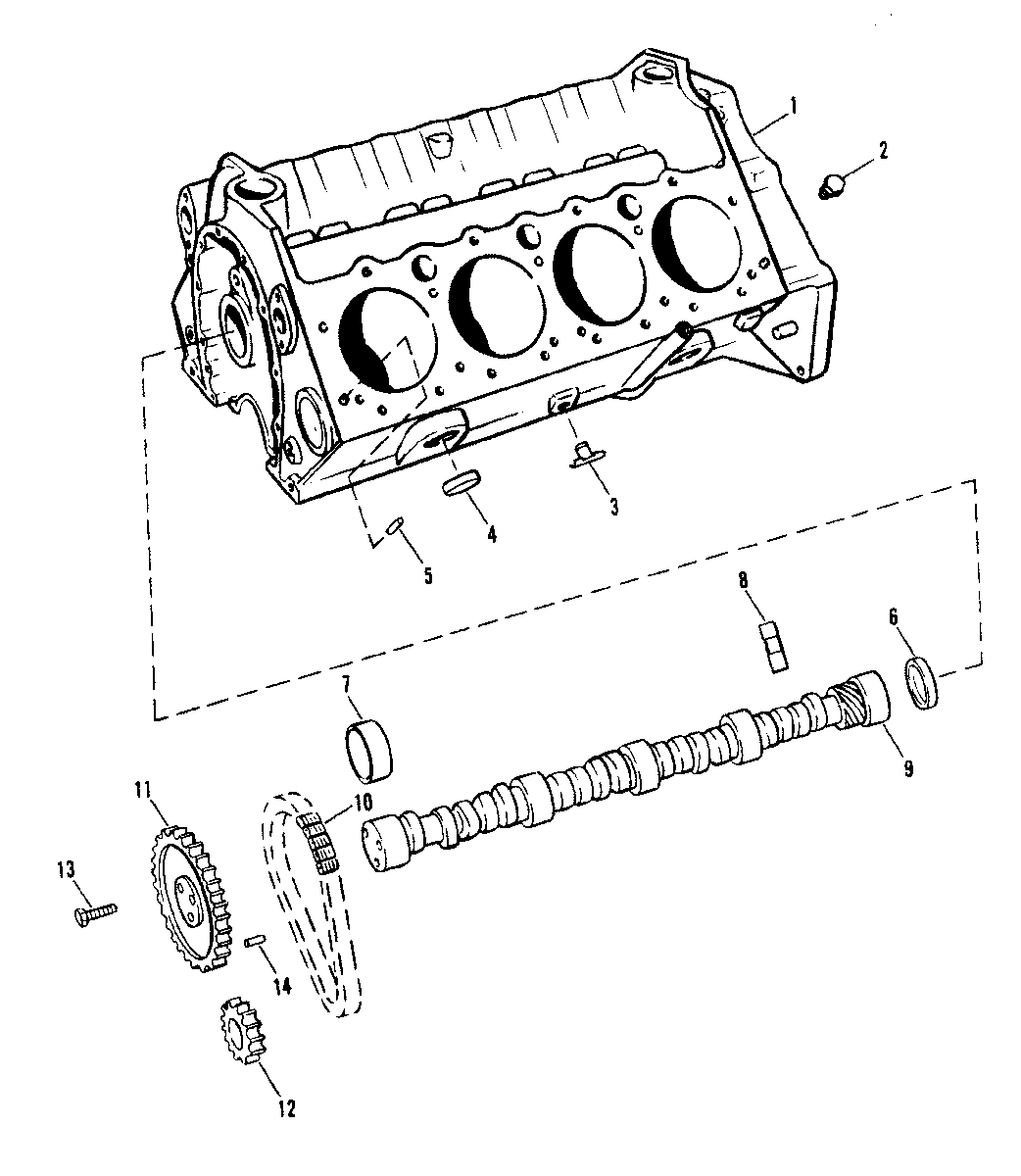

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 454 MAG. ALPHA GM 454 V-8 1986-1988 0A631894 THRU 0B785148

  • №
    Артикул
    Название
  • 1
    842-9639 CYLINDER BLOCK ASSEMBLY
    (Note: 454 Magnum Short Block-18706A1)
    CYLINDER BLOCK ASSEMBLY
    (Note: 454 Magnum Short Block-18706A1)
  • 2
    22-32561 PIPE PLUG, CYLINDER BLOCK (1/4")
    PIPE PLUG, CYLINDER BLOCK (1/4")
  • 2
    22-12524 PIPE PLUG, CYLINDER BLOCK (3/8")
    PIPE PLUG, CYLINDER BLOCK (3/8")
  • 3
    22-16951Q1 DRAIN COCK, CYLINDER BLOCK
    DRAIN COCK, CYLINDER BLOCK
  • 4
    22-69300 PLUG, EXPANSION - CYLINDER BLOCK (1-3/4" DIA.)
    PLUG, EXPANSION - CYLINDER BLOCK (1-3/4" DIA.)
  • 5
    17-52190 PIN, DOWEL - BLOCK TO HEAD
    PIN, DOWEL - BLOCK TO HEAD
  • 6
    19-94140 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 7
    23-85684 BEARING UNIT, CAMSHAFT (SET)
    BEARING UNIT, CAMSHAFT (SET)
  • 8
    72638 LIFTER, HYDRAULIC VALVE - TAPPET
    LIFTER, HYDRAULIC VALVE - TAPPET
  • 9
    431-4734 CAMSHAFT
    CAMSHAFT
  • 10
    75588T CHAIN, CAMSHAFT TIMING
    CHAIN, CAMSHAFT TIMING
  • 11
    43-86481 SPROCKET, CAMSHAFT
    SPROCKET, CAMSHAFT
  • 12
    43-86482 SPROCKET, CRANKSHAFT TIMING
    SPROCKET, CRANKSHAFT TIMING
  • 13
    10-34505 BOLT, CAMSHAFT TIMING SPROCKET
    BOLT, CAMSHAFT TIMING SPROCKET
  • 14
    17-843378 PIN, DOWEL - CAMSHAFT SPROCKET (1/4" DIA.)
    PIN, DOWEL - CAMSHAFT SPROCKET (1/4" DIA.)
  • -
    27-65184A88 ENGINE GASKET SET
    (Note: 454 Magnum Long Block - 18706A1)
    ENGINE GASKET SET
    (Note: 454 Magnum Long Block - 18706A1)
