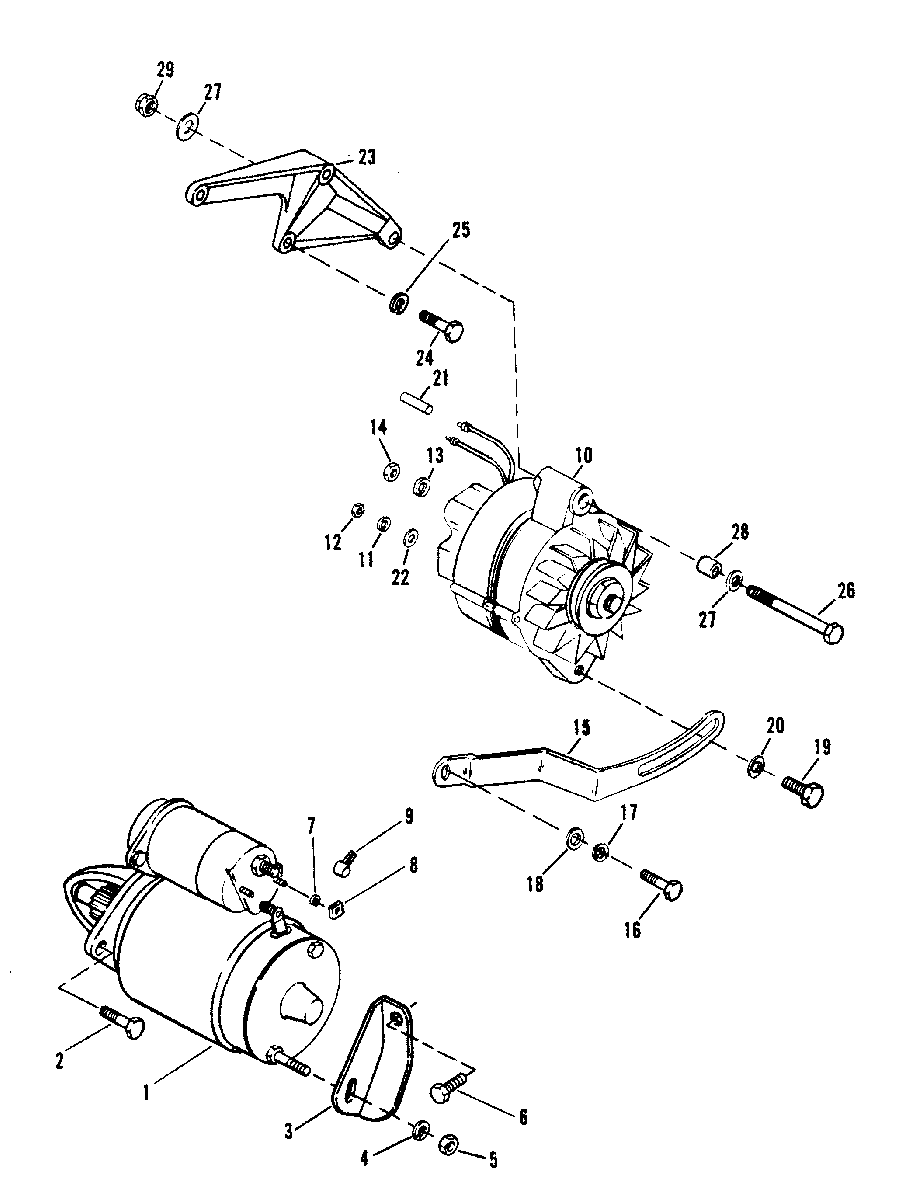

STARTER AND ALTERNATOR для Mercruiser - 454 MAG. ALPHA GM 454 V-8 1986-1988 0A631894 THRU 0B785148

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MAOTOR ASSEMBLY
    STARTER MAOTOR ASSEMBLY
  • 2
    10-94435001 SCREW, STARTER MOTOR (4-21/32")
    SCREW, STARTER MOTOR (4-21/32")
  • 3
    89057 BRACE, STARTER MOTOR
    BRACE, STARTER MOTOR
  • 5
    11-8267088 NUT, BETTERY TERMINAL (1/4-20)
    NUT, BETTERY TERMINAL (1/4-20)
  • 5
    11-15874 NUT, BETTERY TERMINAL (10MM)
    NUT, BETTERY TERMINAL (10MM)
  • 6
    10-35765A1 SCREW, BRACE TO ENGINE (5/8")
    SCREW, BRACE TO ENGINE (5/8")
  • 7
    13-26995 LOCKWASHER, STARTER TERMINAL (#8)
    LOCKWASHER, STARTER TERMINAL (#8)
  • 8
    11-26419 NUT, SOLENOID SWITCH TERMINAL (8-32)
    NUT, SOLENOID SWITCH TERMINAL (8-32)
  • 8
    11-400211 NUT, SOLENOID SWITCH TERMINAL (5MM)
    NUT, SOLENOID SWITCH TERMINAL (5MM)
  • 9
    85-79695T BOOT, INSULATOR - STARTER TERMINAL
    BOOT, INSULATOR - STARTER TERMINAL
  • 10
    817119A4 ALTERNATOR
    ALTERNATOR
  • 11
    13-26996 LOCKWASHER, ALTERNATOR TERMINAL
    LOCKWASHER, ALTERNATOR TERMINAL
  • 12
    11-79989 NUT, ALTERNATOR TERMINAL (10-24)
    NUT, ALTERNATOR TERMINAL (10-24)
  • 13
    13-21272 LOCKWASHER, ALTERNATOR TERMINAL
    LOCKWASHER, ALTERNATOR TERMINAL
  • 14
    11-64015 NUT, ALTERNATOR TERMINAL (1/4-20)
    NUT, ALTERNATOR TERMINAL (1/4-20)
  • 15
    85013T BRACE, ALTERNATOR ADJUSTING
    BRACE, ALTERNATOR ADJUSTING
  • 16
    10-47462 SCREW, ALTERNATOR BRACE
    SCREW, ALTERNATOR BRACE
  • 17
    13-32993 LOCKWASHER, ALTERNATOR BRACE SCREW
    LOCKWASHER, ALTERNATOR BRACE SCREW
  • 18
    12-31263 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 19
    10-29198 SCREW, ALTERNATOR BRACE (7/8")
    SCREW, ALTERNATOR BRACE (7/8")
  • 20
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 21
    5790811 TUBING, ALTERNATOR LEADS
    TUBING, ALTERNATOR LEADS
  • 22
    12-96457 WASHER, ALTERNATOR ATERMINAL
    WASHER, ALTERNATOR ATERMINAL
  • 23
    47487T BRACKET, ALTERNATOR
    WITHOUT POWER STEERING
    BRACKET, ALTERNATOR
    WITHOUT POWER STEERING
  • 24
    10-34353 SCREW, ALTERNATOR BRACKET (1")
    WITHOUT POWER STEERING
    SCREW, ALTERNATOR BRACKET (1")
    WITHOUT POWER STEERING
  • 24
    10-358701 SCREW, ALTERNATOR BRACKET (2-1/4")
    WITHOUT POWER STEERING
    SCREW, ALTERNATOR BRACKET (2-1/4")
    WITHOUT POWER STEERING
  • 25
    13-35048 LOCKWASHER, ALTERNATOR BRACKET SCREW
    WITHOUT POWER STEERING
    LOCKWASHER, ALTERNATOR BRACKET SCREW
    WITHOUT POWER STEERING
  • 23
    806394A1 BRACKET, ALTERNATOR
    WITH POWER STEERING
    BRACKET, ALTERNATOR
    WITH POWER STEERING
  • 24
    10-37612 SCREW, ALTERNATOR BRACKET (1-1/4")
    WITH POWER STEERING
    SCREW, ALTERNATOR BRACKET (1-1/4")
    WITH POWER STEERING
  • 24
    10-34354 SCREW, ALTERNATOR BRACKET (1-1/2")
    WITH POWER STEERING
    SCREW, ALTERNATOR BRACKET (1-1/2")
    WITH POWER STEERING
  • 25
    13-35048 LOCKWASHER, ALTERNATOR BRACKET SCREW
    WITH POWER STEERING
    LOCKWASHER, ALTERNATOR BRACKET SCREW
    WITH POWER STEERING
  • 26
    10-48308 SCREW, ALTERNATOR (3-3/4")
    WITH POWER STEERING
    SCREW, ALTERNATOR (3-3/4")
    WITH POWER STEERING
  • 27
    12-20553 WASHER, ALTERNATOR BRACKET SCREW
    WASHER, ALTERNATOR BRACKET SCREW
  • 28
    23-33186 BUSHING, ALTERNATOR BRACKET SCREW
    BUSHING, ALTERNATOR BRACKET SCREW
  • 29
    11-23161 NUT, ALTERNATOR BRACKET SCREW
    NUT, ALTERNATOR BRACKET SCREW
