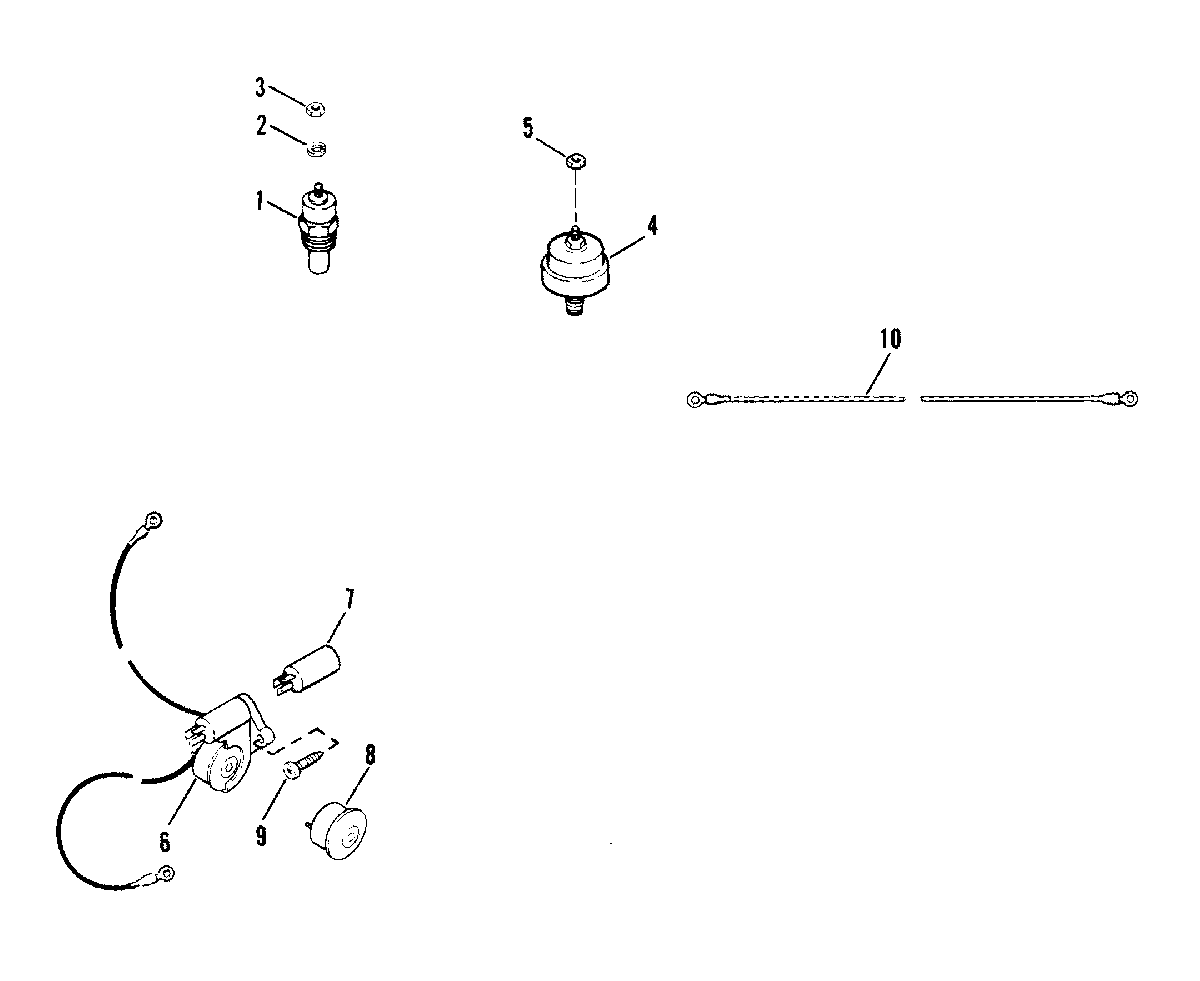

AUDIO WARNING SYSTEM для Mercruiser - 454 MAG. ALPHA GM 454 V-8 1986-1988 0A631894 THRU 0B785148

  • №
    Артикул
    Название
  • 1
    48952 SWITCH, WATER TEMPERATURE
    SWITCH, WATER TEMPERATURE
  • 2
    13-26996 LOCKWASHER, TEMPERATURE SWITCH (#10)
    LOCKWASHER, TEMPERATURE SWITCH (#10)
  • 3
    11-45076 NUT, TEMPERATURE SWITCH (10-32)
    NUT, TEMPERATURE SWITCH (10-32)
  • 4
    87-805605A1 SWITCH PRESSURE
    SWITCH PRESSURE
  • 5
    11-45076 NUT, PRESSURE SWITCH TERMINAL (10-32)
    NUT, PRESSURE SWITCH TERMINAL (10-32)
  • 6
    816492A14 BUZZER HOUSING ASSEMBLY
    BUZZER HOUSING ASSEMBLY
  • 7
    816492A14 TIMER, TEMPERATURE BUZZER
    TIMER, TEMPERATURE BUZZER
  • 8
    68878A6 HORN
    HORN
  • 9
    10-69013 SCREW, HORN ATTACHING
    SCREW, HORN ATTACHING
  • 10
    84-86044A4 WIRE ASSEMBLY, TAN/BLUE (36")
    WIRE ASSEMBLY, TAN/BLUE (36")
