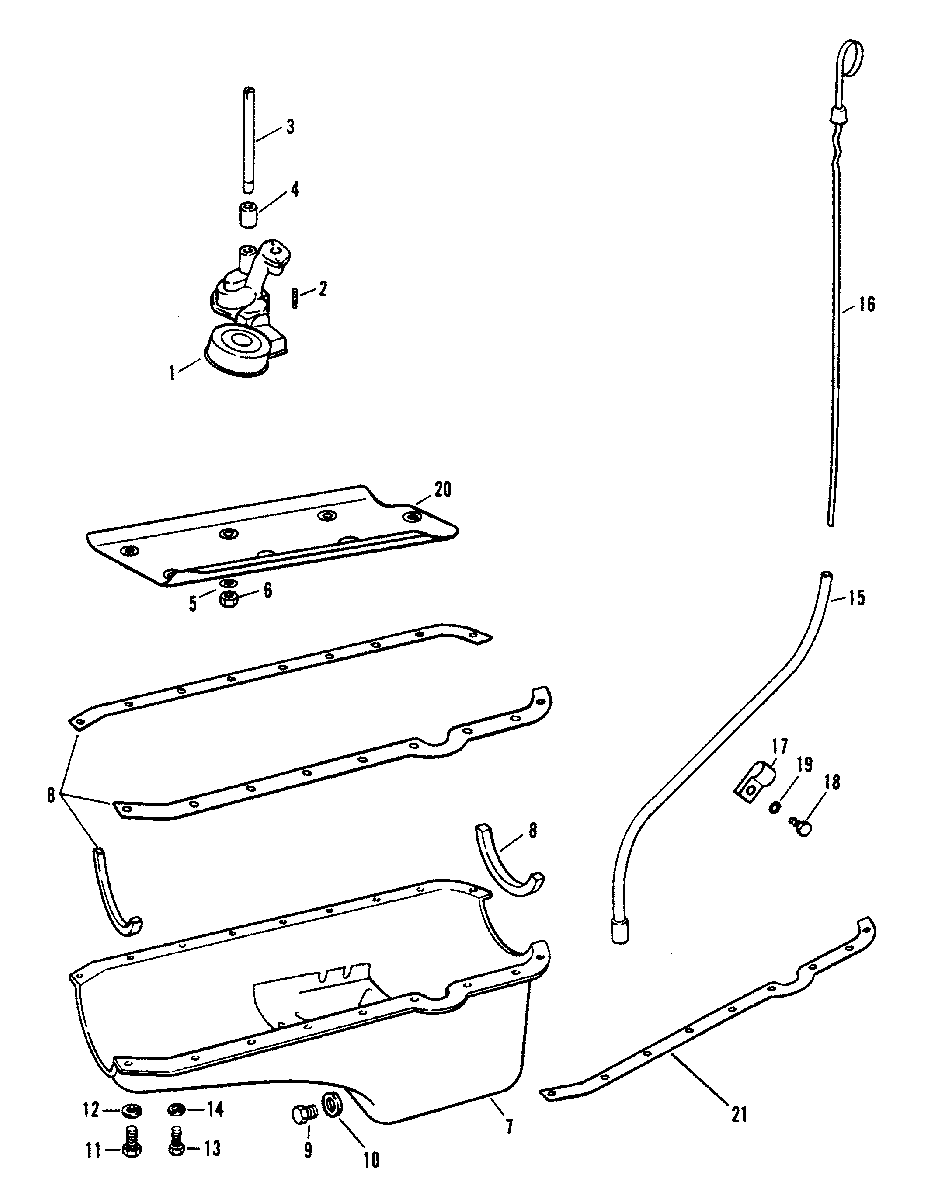

OIL PAN AND OIL PUMP для Mercruiser - 454 MAG. ALPHA GM 454 V-8 1986-1988 0A631894 THRU 0B785148

  • №
    Артикул
    Название
  • 1
    827643 OIL PUMP
    OIL PUMP
  • 2
    16-845599 STUD, OIL PUMP TO CYLINDER BLOCK
    STUD, OIL PUMP TO CYLINDER BLOCK
  • 3
    8M0046892 SHAFT, OIL PUMP TO DISTRIBUTOR
    SHAFT, OIL PUMP TO DISTRIBUTOR
  • 4
    23-36183 RETAINER, OIL PUMP SHAFT
    RETAINER, OIL PUMP SHAFT
  • 5
    12-49112 WASHER, OIL PAN BAFFLE/OIL PUMP STUD
    WASHER, OIL PAN BAFFLE/OIL PUMP STUD
  • 6
    11-37500 NUT, OIL PAN BAFFLE/OIL PUMP STUD
    NUT, OIL PAN BAFFLE/OIL PUMP STUD
  • 7
    93477T OIL PAN
    OIL PAN
  • 8
    27-52550 GASKET SET, OIL PAN
    GASKET SET, OIL PAN
  • 9
    10-49956 SCREW, OIL PAN DRAIN
    SCREW, OIL PAN DRAIN
  • 10
    27-8M0077608 GASKET, DRAIN SCREW
    GASKET, DRAIN SCREW
  • 11
    10-34500 SCREW, OIL PAN (5/16-18)
    SCREW, OIL PAN (5/16-18)
  • 12
    13-39107 LOCKWASHER, OIL PAN SCREW
    LOCKWASHER, OIL PAN SCREW
  • 13
    10-14070 SCREW, OIL PAN (1/4-20)
    SCREW, OIL PAN (1/4-20)
  • 14
    13-26992 LOCKWASHER, OIL PAN SCREW
    LOCKWASHER, OIL PAN SCREW
  • 15
    32-816200A2 TUBE, OIL LEVEL GAUGE
    TUBE, OIL LEVEL GAUGE
  • 16
    86194218 GAUGE, OIL LEVEL (DIPSTICK)
    GAUGE, OIL LEVEL (DIPSTICK)
  • 17
    54-90309 CLIP, OIL LEVEL TUBE
    CLIP, OIL LEVEL TUBE
  • 18
    10-76926 SCREW, CLIP TO BRACKET
    SCREW, CLIP TO BRACKET
  • 19
    13-35048 LOCKWASHER, CLIP SCREW
    LOCKWASHER, CLIP SCREW
  • 20
    49198 BAFFLE, OIL PAN (CYLINDER BLOCK)
    BAFFLE, OIL PAN (CYLINDER BLOCK)
  • 21
    814510 REINFORCEMENTS, OIL PAN (PORT)
    REINFORCEMENTS, OIL PAN (PORT)
  • 21
    814511 REINFORCEMENTS, OIL PAN (STARBOARD)
    REINFORCEMENTS, OIL PAN (STARBOARD)
  • -
    27-65184A88 ENGINE GASKET SET - Overhaul
    ENGINE GASKET SET - Overhaul
