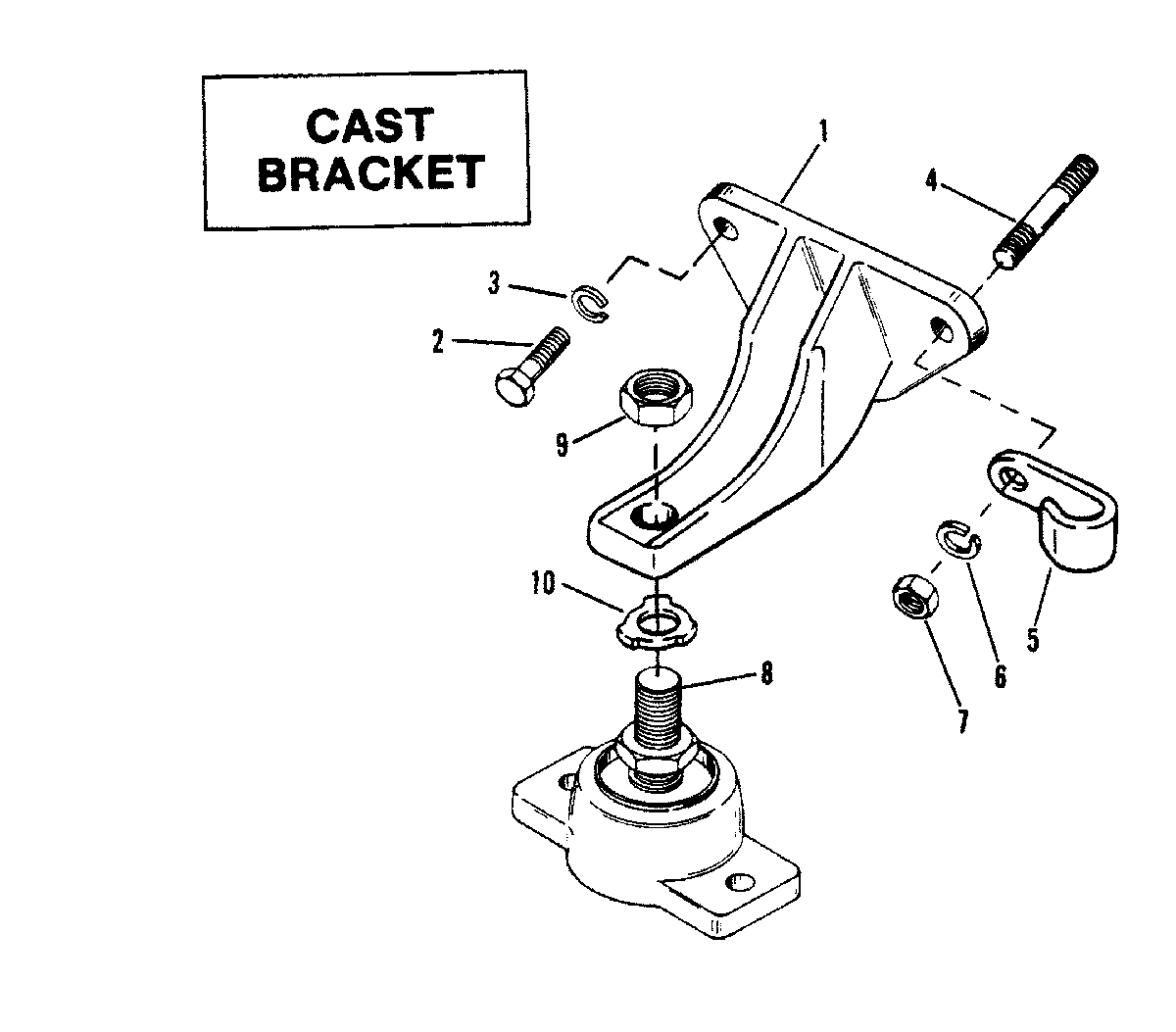

ENGINE MOUNTING (CAST BRACKET) для Mercruiser - 454 MAG. ALPHA GM 454 V-8 1986-1988 0A631894 THRU 0B785148

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET, MOUNTING - ENGINE (FRONT)
    BRACKET, MOUNTING - ENGINE (FRONT)
  • 2
    10-68101 SCREW, MOUNTING BRACKET TO ENGINE (1-1/4")
    PORT
    SCREW, MOUNTING BRACKET TO ENGINE (1-1/4")
    PORT
  • 3
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    PORT
    LOCKWASHER, MOUNTING BRACKET SCREW
    PORT
  • 2
    10-32132 SCREW, MOUNTING BRACKET TO ENGINE
    PORT
    SCREW, MOUNTING BRACKET TO ENGINE
    PORT
  • 3
    12-46132 WASHER, MOUNTING BRACKET SCREW
    PORT
    WASHER, MOUNTING BRACKET SCREW
    PORT
  • 2
    10-68101 SCREW, MOUNTING BRACKET TO ENGINE (1-1/4")
    STARBOARD
    SCREW, MOUNTING BRACKET TO ENGINE (1-1/4")
    STARBOARD
  • 3
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    STARBOARD
    LOCKWASHER, MOUNTING BRACKET SCREW
    STARBOARD
  • 4
    16-861316 STUD, MOUNTING BRACKET TO ENGINE
    STARBOARD
    STUD, MOUNTING BRACKET TO ENGINE
    STARBOARD
  • 5
    54-78945 CLIP, WIRING HARNESS
    STARBOARD
    CLIP, WIRING HARNESS
    STARBOARD
  • 6
    13-35048 LOCKWASHER, MOUNTING BRACKET STUD
    STARBOARD
    LOCKWASHER, MOUNTING BRACKET STUD
    STARBOARD
  • 7
    11-32219 NUT, MOUNTING BRACKET STUD
    STARBOARD
    NUT, MOUNTING BRACKET STUD
    STARBOARD
  • 8
    814263A1 BASE, ENGINE MOUNT
    BASE, ENGINE MOUNT
  • 9
    11-859126 NUT, JAM - ENGINE MOUNT BASE
    NUT, JAM - ENGINE MOUNT BASE
  • 10
    14-12657 TAB WASHER
    TAB WASHER
