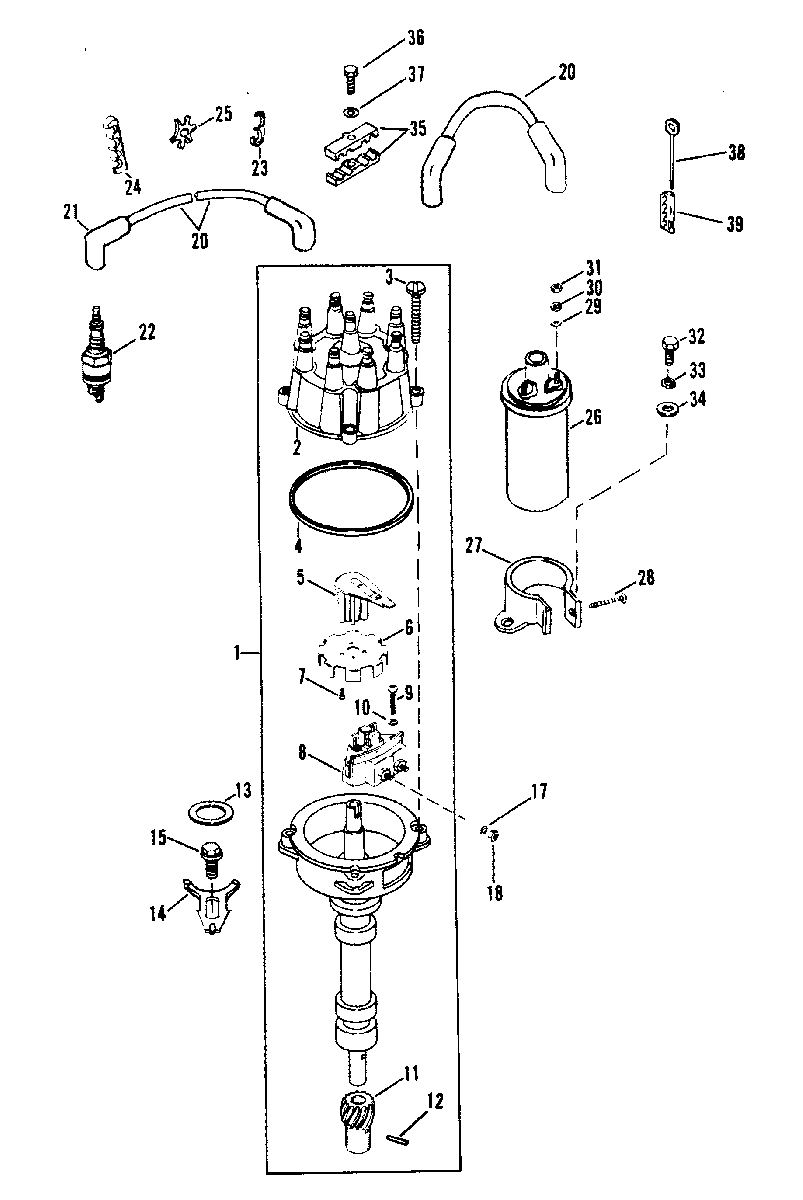

DISTRIBUTOR AND IGNITION COMPONENTS для Mercruiser - 454 MAG. ALPHA GM 454 V-8 1986-1988 0A631894 THRU 0B785148

  • №
    Артикул
    Название
  • 1
    805185A36 DISTRIBUTOR ASSEMBLY
    DISTRIBUTOR ASSEMBLY
  • 2
    805759T1 CAP, DISTRIBUTOR
    CAP, DISTRIBUTOR
  • 3
    10-90926 SCREW, DISTRIBUTOR CAP
    SCREW, DISTRIBUTOR CAP
  • 4
    27-805760 GASKET, DISTRIBUTOR CAP
    GASKET, DISTRIBUTOR CAP
  • 5
    13524T1 ROTOR
    ROTOR
  • 6
    13524T1 SENSOR WHEEL
    SENSOR WHEEL
  • 7
    10-11252 SCREW, SENSOR WHEEL
    SCREW, SENSOR WHEEL
  • 8
    87-892150Q02 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 9
    10-47618 SCREW, SENSOR
    SCREW, SENSOR
  • 10
    12-89302 WASHER, SENSOR SCREW
    WASHER, SENSOR SCREW
  • 11
    43-8M0115498 GEAR, DRIVE
    GEAR, DRIVE
  • 12
    17-47617 PIN, DRIVE GEAR
    PIN, DRIVE GEAR
  • 13
    27-344863 GASKET, DISTRIBUTOR
    GASKET, DISTRIBUTOR
  • 14
    54-88731 CLAMP, DISTRIBUTOR TO INTAKE MANIFOLD
    CLAMP, DISTRIBUTOR TO INTAKE MANIFOLD
  • 15
    10-11976 SCREW, DISTRIBUTOR CLAMP (7/8")
    SCREW, DISTRIBUTOR CLAMP (7/8")
  • 17
    13-26996 LOCKWASHER, DISTRIBUTOR TEMRINAL
    LOCKWASHER, DISTRIBUTOR TEMRINAL
  • 18
    11-68219 NUT, DISTRIBUTOR TERMINAL (10-32)
    NUT, DISTRIBUTOR TERMINAL (10-32)
  • 20
    84-816608Q61 SPARK PLUG WIRE KIT
    SPARK PLUG WIRE KIT
  • 21
    85-63709A1 BOOT ASSEMBLY, SPARK PLUG
    BOOT ASSEMBLY, SPARK PLUG
  • 22
    33-898264001 SPARK PLUG
    SPARK PLUG
  • 23
    54676 RETAINER, HIGH TENSION LEADS (2 WIRE)
    RETAINER, HIGH TENSION LEADS (2 WIRE)
  • 24
    32783 RETAINER, HIGH TENSION LEADS (3 WIRE)
    RETAINER, HIGH TENSION LEADS (3 WIRE)
  • 25
    32784 RETAINER, HIGH TENSION LEADS (4 WIRE)
    RETAINER, HIGH TENSION LEADS (4 WIRE)
  • 26
    300-8M0079202 COIL, IGNITION
    COIL, IGNITION
  • 27
    77294T BRACKET, IGNITION COIL
    BRACKET, IGNITION COIL
  • 28
    10-41408 SCREW, BRACKET (1-1/2")
    SCREW, BRACKET (1-1/2")
  • 29
    12-30164 WASHER, IGNITION CIOL TERMINAL
    WASHER, IGNITION CIOL TERMINAL
  • 30
    13-26996 LOCKWASHER, IGNITION COIL TERMINAL
    LOCKWASHER, IGNITION COIL TERMINAL
  • 31
    11-68219 NUT, IGNITION COIL TERMINAL (#10-32)
    NUT, IGNITION COIL TERMINAL (#10-32)
  • 32
    10-824941 SCREW, IGNITION COIL (3/4")
    SCREW, IGNITION COIL (3/4")
  • 33
    13-39107 LOCKWASHER, IGNITION COIL SCREW
    LOCKWASHER, IGNITION COIL SCREW
  • 34
    12-20084 WASHER, IGNITION COIL SCREW
    WASHER, IGNITION COIL SCREW
  • 35
    63192 RETAINER, HIGH TENSION LEADS
    OLD DESIGN
    RETAINER, HIGH TENSION LEADS
    OLD DESIGN
  • 36
    10-37612 SCREW, RETAINER (1-1/4")
    OLD DESIGN
    SCREW, RETAINER (1-1/4")
    OLD DESIGN
  • 37
    12-25909 WASHER, RETAINER SCREW
    OLD DESIGN
    WASHER, RETAINER SCREW
    OLD DESIGN
  • 38
    16-90096A1 STUD ASSEMBLY
    NEW DESIGN
    STUD ASSEMBLY
    NEW DESIGN
  • 39
    54-72821 RETAINER, WIRE
    NEW DESIGN
    RETAINER, WIRE
    NEW DESIGN
