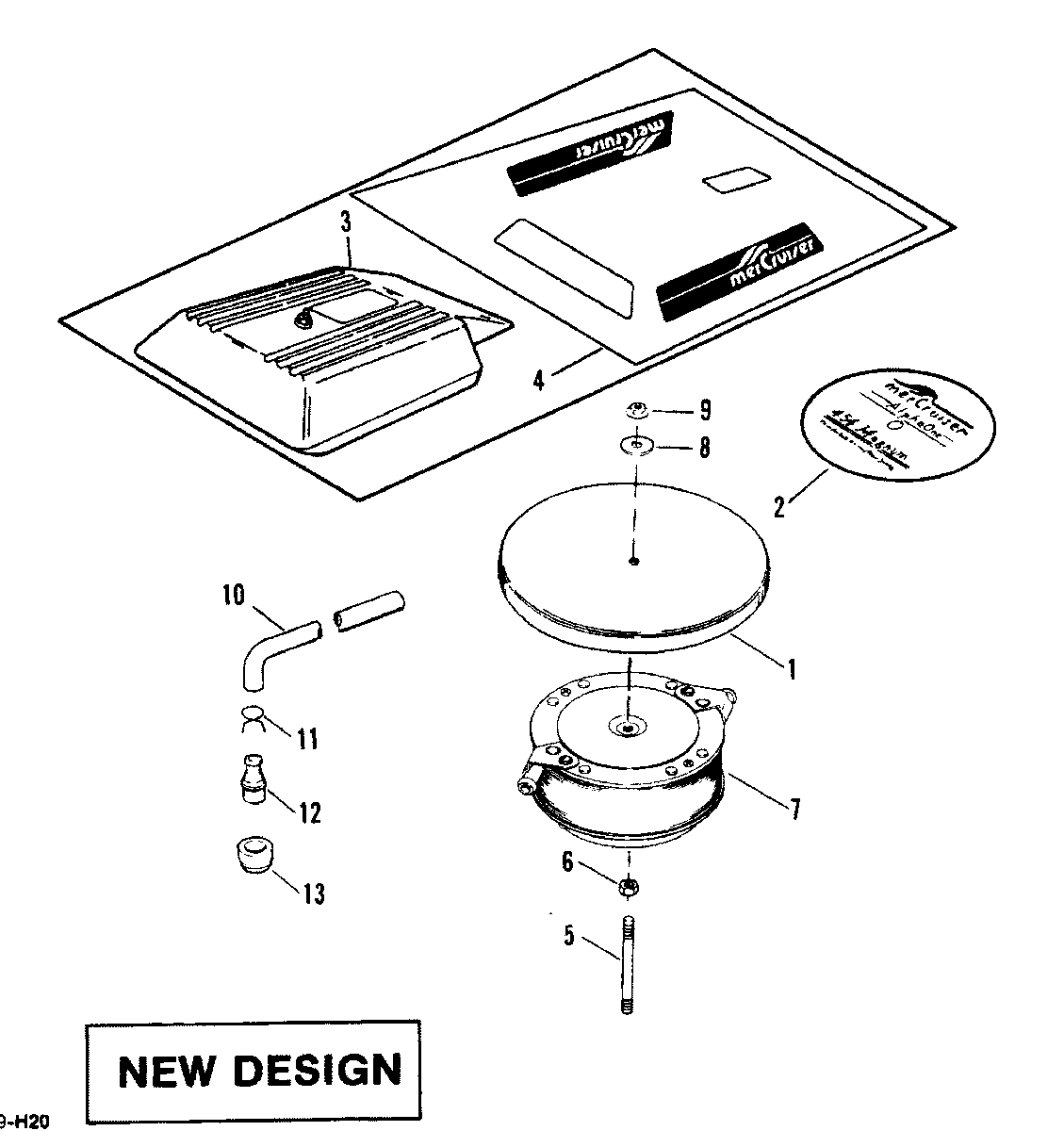

FLAME ARRESTOR(NEW DESIGN) для Mercruiser - 454 MAG. ALPHA GM 454 V-8 1986-1988 0A631894 THRU 0B785148

  • №
    Артикул
    Название
  • 1
    14605T1 COVER, CARBURETOR
    COVER, CARBURETOR
  • 2
    37-1372319 DECAL, HORSEPOWER
    DECAL, HORSEPOWER
  • 3
    18484A3 COVER, CARBURETOR
    NEW DESIGN
    COVER, CARBURETOR
    NEW DESIGN
  • 4
    37-812776A9 DECAL SET
    NEW DESIGN
    DECAL SET
    NEW DESIGN
  • 5
    16-805161 STUD, FLAME ARRESTOR
    STUD, FLAME ARRESTOR
  • 6
    11-8267139 NUT, JAM - FLAME ARRESTOR
    NUT, JAM - FLAME ARRESTOR
  • 7
    805298A1 FLAME ARRESTOR
    FLAME ARRESTOR
  • 8
    12-86400 WASHER, SEALING
    WASHER, SEALING
  • 9
    11-826709109 NUT, FLAME ARRESTOR STUD
    NUT, FLAME ARRESTOR STUD
  • 10
    32-8M0062669 HOSE, VENT - CARBURETOR (11-1/4")
    HOSE, VENT - CARBURETOR (11-1/4")
  • 11
    54-53101 CLAMP, VENT HOSE
    CLAMP, VENT HOSE
  • 12
    47957 CONNECTOR, VENT HOSE (STRAIGHT)
    CONNECTOR, VENT HOSE (STRAIGHT)
  • 12
    97850T ELBOW, VENT HOSE (90 )
    ELBOW, VENT HOSE (90 )
  • 13
    25-59987 GROMMET, ROCKER COVER
    GROMMET, ROCKER COVER
