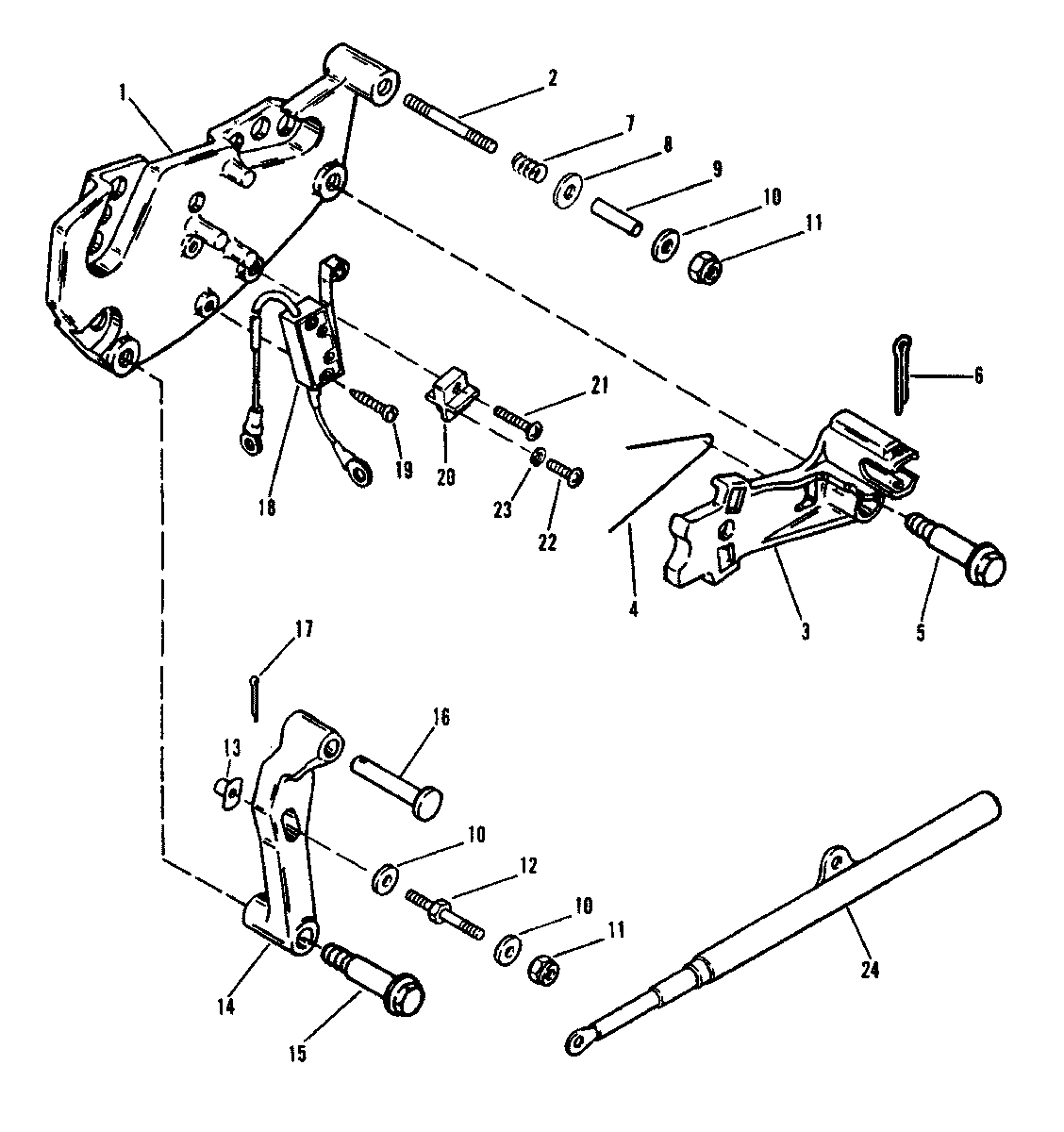

SHIFT BRACKET(NEW DESIGN WITH SPRING GUIDE) для Mercruiser - 454 MAG. ALPHA GM 454 V-8 1986-1988 0A631894 THRU 0B785148

  • №
    Артикул
    Название
  • 1
    807962A15 SHIFT BRACKET ASSEMBLY
    SHIFT BRACKET ASSEMBLY
  • 2
    865149A02 STUD, SHIFT CABLE
    STUD, SHIFT CABLE
  • 3
    13051A4 LEVER ASSEMBLY, ACTUATING
    LEVER ASSEMBLY, ACTUATING
  • 4
    24-862850 SPRING, ACTUATING LEVER
    SPRING, ACTUATING LEVER
  • 5
    10-865148 SHOULDER SCREW, LEVER
    SHOULDER SCREW, LEVER
  • 6
    18-328571 COTTER PIN, SHIFT CABLE RETAINING
    COTTER PIN, SHIFT CABLE RETAINING
  • 7
    24-98880 SPRING, SHIFT CABLE STUD
    SPRING, SHIFT CABLE STUD
  • 8
    12-56720 WASHER, SHIFT BRACKET STUD
    WASHER, SHIFT BRACKET STUD
  • 9
    865149A02 SPACER, SHIFT CABLE STUD
    SPACER, SHIFT CABLE STUD
  • 10
    12-35462 WASHER, SHIFT CABLE STUD
    WASHER, SHIFT CABLE STUD
  • 11
    11-8267119 NUT, SHIFT CABLE STUD
    NUT, SHIFT CABLE STUD
  • 12
    16-8M0113178 STUD, SHIFT CABLE
    STUD, SHIFT CABLE
  • 13
    11-63341 TEE NUT, SHIFT CABLE STUD
    TEE NUT, SHIFT CABLE STUD
  • 14
    13898T06 SHIFT LEVER ASSEMBLY
    SHIFT LEVER ASSEMBLY
  • 15
    10-865148 SHOULDER SCREW, SHIFT LEVER
    SHOULDER SCREW, SHIFT LEVER
  • 16
    17-814001 SHOULDER PIN, SHIFT LEVER
    SHOULDER PIN, SHIFT LEVER
  • 17
    18-210711 COTTER PIN, SHIFT LEVER
    COTTER PIN, SHIFT LEVER
  • 18
    39670A28 SWITCH ASSEMBLY, CUT-OUT
    SWITCH ASSEMBLY, CUT-OUT
  • 19
    10-30902 SCREW, SWITCH TO SHIFT BRACKET
    SCREW, SWITCH TO SHIFT BRACKET
  • 20
    86-66986 TERMINAL BLOCK
    TERMINAL BLOCK
  • 21
    10-96113 SCREW, TERMINAL BLOCK (7/8")
    SCREW, TERMINAL BLOCK (7/8")
  • 22
    10-73287 SCREW, TERMINAL BLOCK (3/8")
    SCREW, TERMINAL BLOCK (3/8")
  • 23
    13-26996 LOCKWASHER, TERMINAL BLOCK SCREW
    LOCKWASHER, TERMINAL BLOCK SCREW
  • 24
    813995A1 SPRING GUIDE ASSEMBLY
    SPRING GUIDE ASSEMBLY
