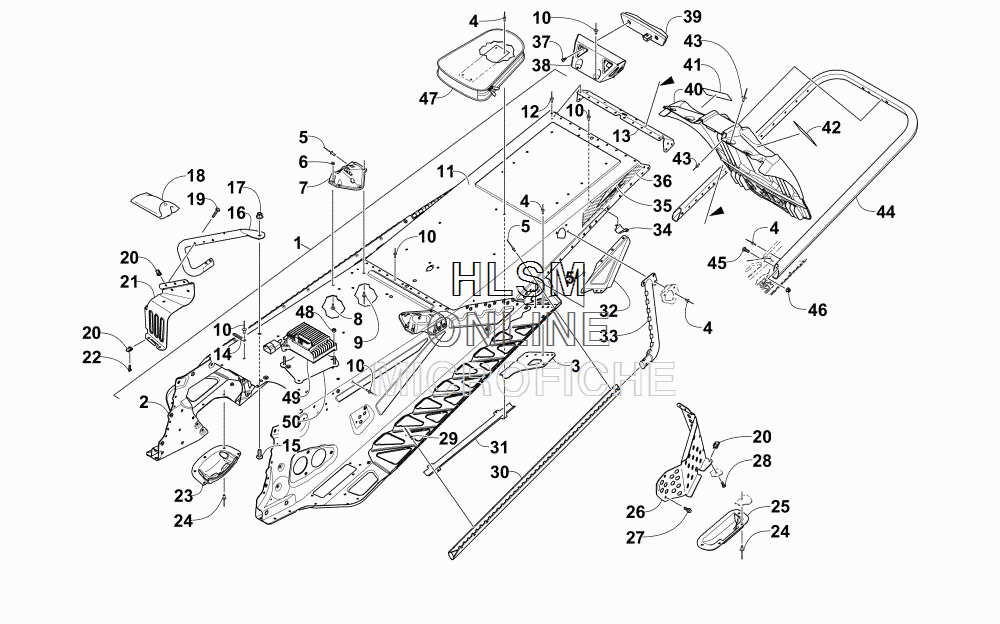

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска
-
№АртикулНазвание
-
-1707-823 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
11707-912 TUNNEL ASSEMBLY (INC. 2-13)TUNNEL ASSEMBLY (INC. 2-13)
-
21707-981 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
-
30607-992 ......BRACKET, MOUNTING - SUSPENSION - RIGHT......BRACKET, MOUNTING - SUSPENSION - RIGHT
-
30607-993 ......BRACKET, MOUNTING - SUSPENSION - LEFT......BRACKET, MOUNTING - SUSPENSION - LEFT
-
48060-686 ......RIVET,BLIND-DH SS64 ZINC......RIVET,BLIND-DH SS64 ZINC
-
51623-241 ...RIVET,3/16 HUCK-M6...RIVET,3/16 HUCK-M6
-
68422-502 ...NUT, M5 X 1 NYL Z & Y...NUT, M5 X 1 NYL Z & Y
-
71707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
71707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
88476-512 ...SCREW,MACH-TSTRH M5X0.8X12 Z & Y...SCREW,MACH-TSTRH M5X0.8X12 Z & Y
-
91623-257 ...RIVET,3/16 HUCK-M5...RIVET,3/16 HUCK-M5
-
108060-682 ...RIVET,BLIND-DH SS62 ZINC...RIVET,BLIND-DH SS62 ZINC
-
111607-250 ...TUNNEL, REAR...TUNNEL, REAR
-
128060-484 ...RIVET, BLIND-DH SS53 ZINC...RIVET, BLIND-DH SS53 ZINC
-
131607-104 ...END CAP, TUNNEL...END CAP, TUNNEL
-
141623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
158476-820 SCREW,MACH-TSTRH M8X1.25X20 Z & YSCREW,MACH-TSTRH M8X1.25X20 Z & Y
-
161707-454 SUPPORT, FOOTREST - RIGHT - (BLACK)SUPPORT, FOOTREST - RIGHT - (BLACK)
-
161707-455 SUPPORT, FOOTREST - LEFT - (BLACK)SUPPORT, FOOTREST - LEFT - (BLACK)
-
178427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
180744-076 KIT, TOOLKIT, TOOL
-
198468-535 SCREW,MACH-TSPNH M5X0.8X35 CL8.8 (BLACK)SCREW,MACH-TSPNH M5X0.8X35 CL8.8 (BLACK)
-
201623-637 CLIP, U-NUT (M5)CLIP, U-NUT (M5)
-
210607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
210607-997 FOOTREST - LEFTFOOTREST - LEFT
-
228470-516 SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & YSCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & Y
-
231607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
248061-708 RIVET, BLIND-LF SS66 (BLACK)RIVET, BLIND-LF SS66 (BLACK)
-
250607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
261607-371 SHIELD, BRAKE DISCSHIELD, BRAKE DISC
-
278408-613 SCREW,CAP-HFH M6X1.0X12 CL8.8 Z & Y W/2353SCREW,CAP-HFH M6X1.0X12 CL8.8 Z & Y W/2353
-
288470-520 SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z & YSCREW,MACH-TSPNH M5X.8X20 CL8.8 Z & Y
-
291623-130 RIVET,3/16 HUCK-M4RIVET,3/16 HUCK-M4
-
301607-092 ROLL, TUNNELROLL, TUNNEL
-
310630-308 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
321607-162 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
321607-163 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
331607-040 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
331607-041 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
340630-292 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
350621-990 DECAL, REFLECTOR - (RED)DECAL, REFLECTOR - (RED)
-
361621-588 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
361621-589 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
378470-510 SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z & YSCREW,MACH-TSPNH M5X.8X10 CL8.8 Z & Y
-
380630-328 BRACKET, MOUNTING - TAILLIGHTBRACKET, MOUNTING - TAILLIGHT
-
390609-898 TAILLIGHT, LED (RED)TAILLIGHT, LED (RED)
-
406606-394 SNOWFLAP (BLACK)SNOWFLAP (BLACK)
-
415611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
425611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
438061-706 RIVET,BLIND-LF SS64 (BLACK)RIVET,BLIND-LF SS64 (BLACK)
-
442707-432 BUMPER, REARBUMPER, REAR
-
458476-620 SCREW,MACH-TSTRH M6X1.0X20 Z & YSCREW,MACH-TSTRH M6X1.0X20 Z & Y
-
468427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
476606-615 BAG, BELTBAG, BELT
-
488422-602 NUT,HEX-THK NYL M6X1.00 CL8 Z & YNUT,HEX-THK NYL M6X1.00 CL8 Z & Y
-
490630-246 UNIT, CHASSIS CONTROLUNIT, CHASSIS CONTROL
-
500730-223 PLATE, MOUNTINGPLATE, MOUNTING
