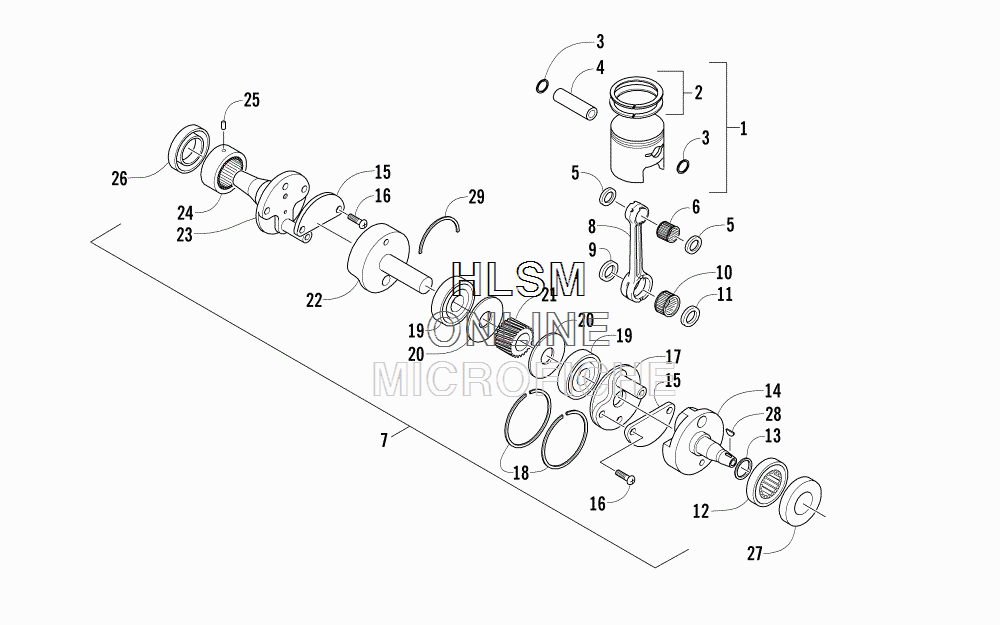

PISTON AND CRANKSHAFT для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3006-746 PISTON SET (INC. 2-3)
    PISTON SET (INC. 2-3)
  • 2
    3005-828 ...RING SET, PISTON
    ...RING SET, PISTON
  • 3
    3005-304 ...CIRCLIP,M22
    ...CIRCLIP,M22
  • 4
    3005-816 PIN, PISTON
    PIN, PISTON
  • 5
    3008-500 WASHER,22MM
    WASHER,22MM
  • 6
    3008-503 BEARING,NEEDLE,M22
    BEARING,NEEDLE,M22
  • 7
    3007-861 CRANKSHAFT ASSEMBLY (INC. 8-24)
    CRANKSHAFT ASSEMBLY (INC. 8-24)
  • 8
    3007-614 ...CONNECTING ROD
    ...CONNECTING ROD
  • 9
    3005-494 ...WASHER,CRANKPIN BEARING
    ...WASHER,CRANKPIN BEARING
  • 10
    3005-505 ...BEARING,NEEDLE ROLLER,M27X34X20
    ...BEARING,NEEDLE ROLLER,M27X34X20
  • 11
    3005-502 ...WASHER,M27X33X1.5
    ...WASHER,M27X33X1.5
  • 12
    3005-507 ...BEARING,ROLLER,4.2X19X7.5
    ...BEARING,ROLLER,4.2X19X7.5
  • 13
    3005-603 ...WASHER,35MM SHIM
    ...WASHER,35MM SHIM
  • 14
    3007-045 ...CRANKSHAFT - RIGHT
    ...CRANKSHAFT - RIGHT
  • 15
    3005-500 ...BALANCER, CRANKSHAFT
    ...BALANCER, CRANKSHAFT
  • 16
    3007-440 ...SCREW
    ...SCREW
  • 17
    3007-615 ...WHEEL, CRANKSHAFT
    ...WHEEL, CRANKSHAFT
  • 18
    3005-508 ...RING, MIDDLE CRANK SEAL
    ...RING, MIDDLE CRANK SEAL
  • 19
    3005-504 ...BEARING,BALL,M30X75X17
    ...BEARING,BALL,M30X75X17
  • 20
    3005-597 ...RACE, MIDDLE CRANK SEAL
    ...RACE, MIDDLE CRANK SEAL
  • 21
    3006-353 ...GEAR, OIL PUMP DRIVE
    ...GEAR, OIL PUMP DRIVE
  • 22
    3006-347 ...CRANKSHAFT - MIDDLE
    ...CRANKSHAFT - MIDDLE
  • 23
    3007-862 ...CRANKSHAFT - LEFT
    ...CRANKSHAFT - LEFT
  • 24
    3007-439 ...BEARING - LEFT
    ...BEARING - LEFT
  • 25
    3003-658 PIN,ALIGNMENT
    PIN,ALIGNMENT
  • 26
    3003-759 SEAL,CRANKSHAFT-LH,M40
    SEAL,CRANKSHAFT-LH,M40
  • 27
    3008-525 SEAL, OIL,M30
    SEAL, OIL,M30
  • 28
    3004-540 KEY,WOODRUFF,M4
    KEY,WOODRUFF,M4
  • 29
    3003-359 C-RING,CRANKSHAFT,M75
    C-RING,CRANKSHAFT,M75
