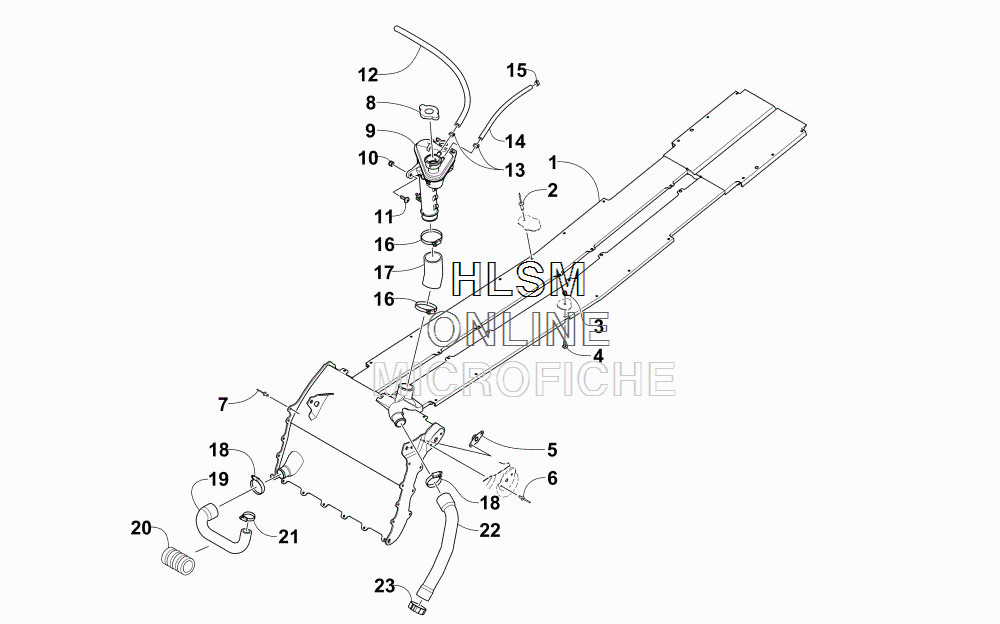

COOLING ASSEMBLY для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0713-114 EXCHANGER, HEAT
    EXCHANGER, HEAT
  • 2
    8060-682 RIVET,BLIND-DH SS62 ZINC
    RIVET,BLIND-DH SS62 ZINC
  • 3
    8422-502 NUT, M5 X 1 NYL Z & Y
    NUT, M5 X 1 NYL Z & Y
  • 4
    8476-516 SCREW,MACH-TSTRH M5X0.8X16 Z & Y
    SCREW,MACH-TSTRH M5X0.8X16 Z & Y
  • 5
    0608-631 PLATE, RETAINING
    PLATE, RETAINING
  • 6
    8060-688 RIVET,BLIND-DH SS66 ZINC
    RIVET,BLIND-DH SS66 ZINC
  • 7
    8060-686 RIVET,BLIND-DH SS64 ZINC
    RIVET,BLIND-DH SS64 ZINC
  • 8
    2606-284 CAP, MINI RADIATOR
    CAP, MINI RADIATOR
  • 9
    0613-135 TANK, COOLANT
    TANK, COOLANT
  • 10
    8422-602 NUT,HEX-THK NYL M6X1.00 CL8 Z & Y
    NUT,HEX-THK NYL M6X1.00 CL8 Z & Y
  • 11
    8476-625 SCREW,MACH-TSTRH M6X1.0X25 Z & Y
    SCREW,MACH-TSTRH M6X1.0X25 Z & Y
  • 12
    0610-692 HOSE, (GREEN) - 25 FT
    HOSE, (GREEN) - 25 FT
  • 12
    0610-693 HOSE, (GREEN) - 100 FT
    HOSE, (GREEN) - 100 FT
  • 13
    1623-655 CLAMP,HOSE-CRIMP-11.3
    CLAMP,HOSE-CRIMP-11.3
  • 14
    0610-538 HOSE - 25 FT
    HOSE - 25 FT
  • 15
    1623-619 CLAMP,H0SE-CRIMP-10.5
    CLAMP,H0SE-CRIMP-10.5
  • 16
    0423-317 CLAMP, HOSE -32/50 (NORMA 962)
    CLAMP, HOSE -32/50 (NORMA 962)
  • 17
    0610-936 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
    HOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
  • 18
    2623-088 CLAMP,HOSE-23/35
    CLAMP,HOSE-23/35
  • 19
    0613-063 HOSE, COOLANT - ENGINE/FRONT HEAT EXCHANGER
    HOSE, COOLANT - ENGINE/FRONT HEAT EXCHANGER
  • 20
    0619-619 CONDUIT, FLEXIBLE - 4 IN. (BLACK)
    CONDUIT, FLEXIBLE - 4 IN. (BLACK)
  • 21
    1623-049 CLAMP,HOSE-24/8 SS
    CLAMP,HOSE-24/8 SS
  • 22
    0613-193 HOSE, COOLANT - TANK/ENGINE
    HOSE, COOLANT - TANK/ENGINE
  • 23
    2623-038 CLAMP,HOSE-20/32 (NORMA)
    CLAMP,HOSE-20/32 (NORMA)
