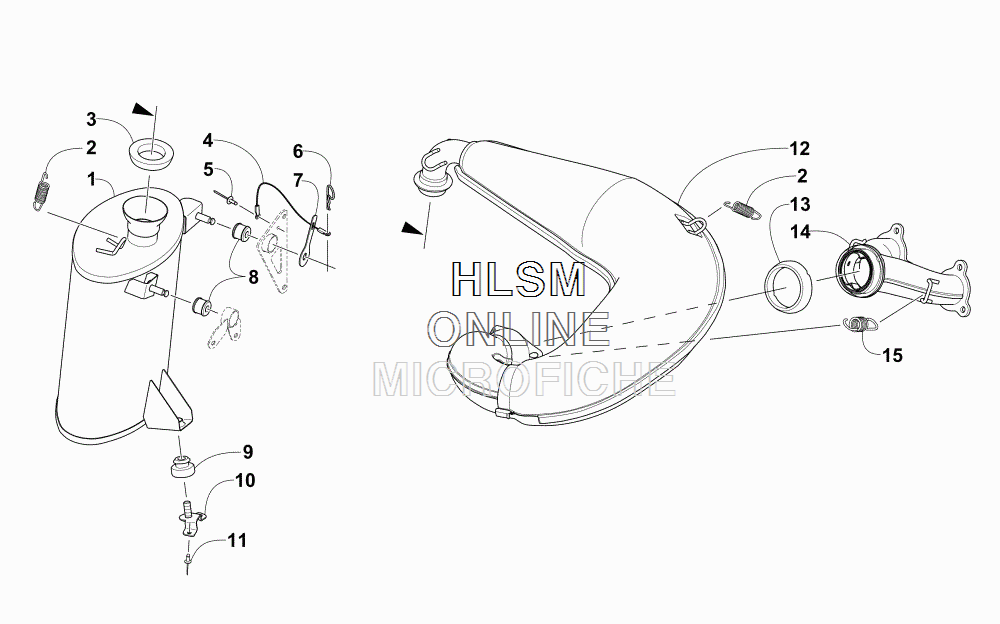

EXHAUST ASSEMBLY для Arctic Cat ZR 4000 LXR (GREEN) [S2015ZRCEFUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1712-953 RESONATOR ASSEMBLY (BLACK)
    RESONATOR ASSEMBLY (BLACK)
  • 2
    0612-668 SPRING, EXTENSION
    SPRING, EXTENSION
  • 3
    1612-066 GASKET, EXHAUST - TAILPIPE
    GASKET, EXHAUST - TAILPIPE
  • 4
    0607-447 CABLE,5"-HAIRPIN
    CABLE,5"-HAIRPIN
  • 5
    8060-504 RIVET,BLIND-DH SS53 (BLACK)
    RIVET,BLIND-DH SS53 (BLACK)
  • 6
    0605-283 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 7
    2612-347 WASHER,RESONATOR-MTG-W/TAB(1.25 OD)
    WASHER,RESONATOR-MTG-W/TAB(1.25 OD)
  • 8
    0412-577 BUSHING,MUFFLER
    BUSHING,MUFFLER
  • 9
    1612-873 GROMMET,RUBBER-RESONATOR MOUNT
    GROMMET,RUBBER-RESONATOR MOUNT
  • 10
    1712-796 BRACKET, MOUNTING - LOWER
    BRACKET, MOUNTING - LOWER
  • 11
    1623-241 RIVET,3/16 HUCK-M6
    RIVET,3/16 HUCK-M6
  • 12
    1712-939 CHAMBER, EXPANSION
    CHAMBER, EXPANSION
  • 13
    1612-014 GASKET, EXHAUST - HEADPIPE
    GASKET, EXHAUST - HEADPIPE
  • 14
    1712-934 MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 15
    2612-949 SPRING,EXHAUST-2.70"
    SPRING,EXHAUST-2.70"
